Control Panel - JUKI #CP-180

Control Panel - JUKI #CP-180

CP-180

Control Panel - JUKI #CP-180

$349.99
$349.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Specifications

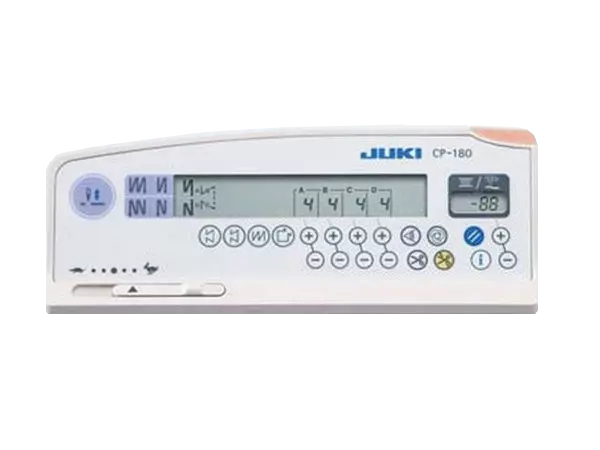

Control Panel - JUKI #CP-180

Part Number:  CP-180

MACHINE COMPATIBILITY:

  • JUKI Models: DDL-8700-7, DDL-9010A-SH, DDL-9010A-SS

PRODUCTION SUPPORT:

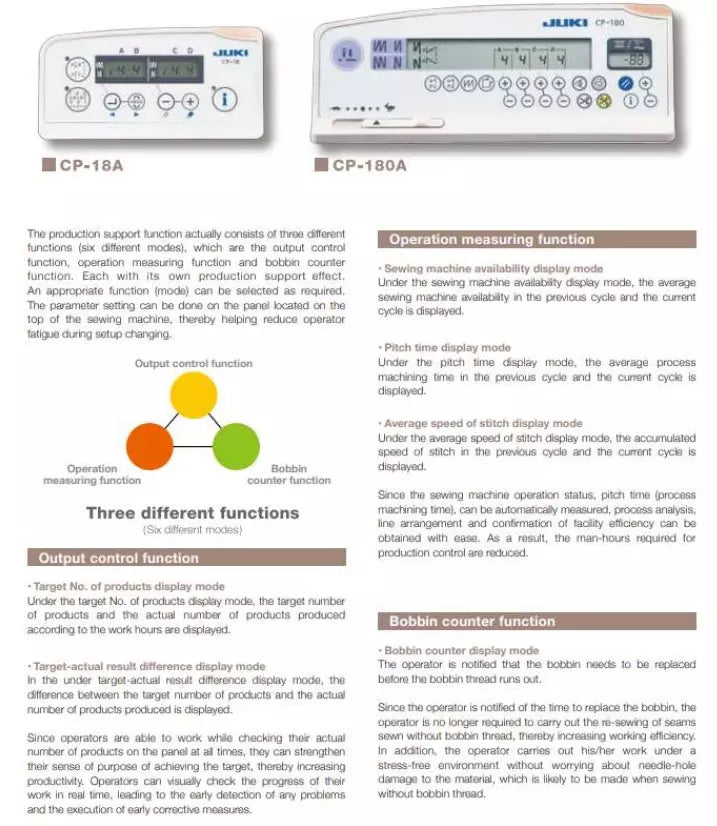

The production support function consists of three different functions (six different modes): the output control function, the operation measuring function, and the bobbin counter function. Each with its own production support effect. An appropriate function (mode) can be selected as required, and the parameter setting can be done on the operation panel, thereby helping reduce operator fatigue during setup changes.


FUNCTION COMPARISON TABLE

Love Juki? Goldstar Tool Has You Covered

Ready to move up to one of the world’s best machines? You can order right now from our website. Have questions? Call us at 1-800-868-4419, and we’ll be happy to answer everything for you.


DOWNLOADS:

CP-180 Operation Panel - PARTS LISTCP-180 Operation Panel - INSTRUCTION MANUAL

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
