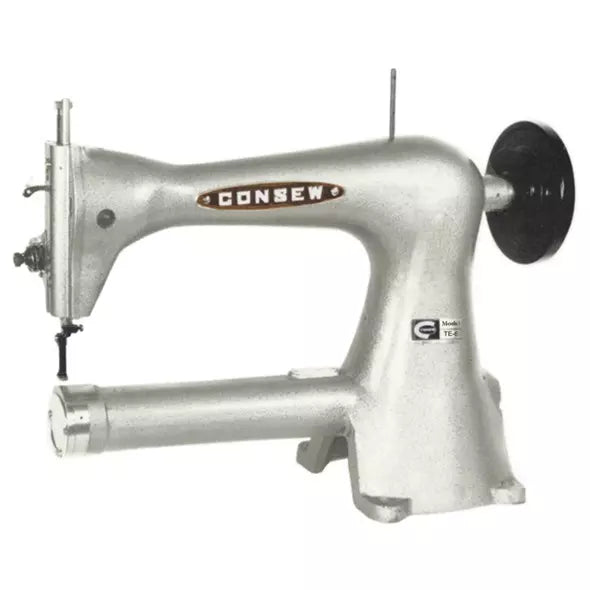

Consew TE-6 Single Needle Cylinder Arm Drop Feed Lockstitch Industrial Sewing Machine

Consew TE-6 Single Needle Cylinder Arm Drop Feed Lockstitch Industrial Sewing Machine

TE-6

Complete Unit: Includes Assembled Table, Heavy-Duty Stand, and Quiet Servo Motor

$5,499.99
$5,499.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew TE-6

is a specialized industrial lockstitch machine designed for sewing circular, tubular, and hollow items. Its slim cylinder arm allows you to navigate tight curves and uneven surfaces that are impossible to reach with a flatbed machine. Built with a robust oscillating shuttle hook and a long-beak design, it delivers exceptionally tight, uniform seams on light to medium-heavyweight materials. This right-hand configuration provides a familiar and efficient workflow for professional sewers and manufacturers.

  • Precision Cylinder Arm: Perfect for navigating small openings, cuffs, and complex tubular projects.
  • Long-Beak Oscillating Shuttle: Engineered to ensure perfect seam tightness and consistency on uneven work.
  • Standard Right-Hand Design: Offers familiar ergonomics for the majority of operators, increasing efficiency in production.
  • Drop Feed System: Provides reliable feeding for light to medium-heavy materials, including leather, vinyl, and canvas.
  • Optional Roller Foot: Compatible with roller presser feet to ensure smooth movement over tacky materials like vinyl without leaving marks.
  • Silent Servo Motor: Includes a 110V electronic Servo Motor that provides full torque even at low speeds, consumes 90% less energy than clutch motors, and operates in near-silence.
  • Stitch Type: 301 Lockstitch
  • Max Sewing Speed: 1,400 SPM
  • Max Stitch Length: 5 s.p.i. (5mm)
  • Cylinder Bed Length: 10 1/2" (266mm)
  • Cylinder Diameter: 1 7/8" (48mm)
  • Clearance Under Presser Foot: 9/32" (7mm)
  • Needle Bar Stroke: 1 27/64" (36mm)
  • Needle System: 16 x 231 (DBx1)
  • Bobbin Type: Metal 8096 (Pre-wound L)
  • Hook Type: 8028 Oscillating Shuttle

The TE-6 is the industry standard for sewing "hollow" or curved items where maneuverability is key:

  • Leather Goods: Wallets, purses, pouches, and luxury handbags.
  • Travel Gear: Suitcases, briefcases, and travel bags.
  • Athletic Equipment: Sports pads, gloves, and protective gear.
  • Apparel Repair: Sleeves, cuffs, and patching tubular garment sections.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
