Consew SKZ-6R Heavy Duty Single Needle Drop Feed Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew SKZ-6R Heavy Duty Single Needle Drop Feed Zig-Zag Lockstitch Industrial Sewing Machine With Table and Servo Motor

SKZ-6R

Complete Set: Includes Assembled Table, Stand, and Digital Servo Motor

$8,499.99
$8,499.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

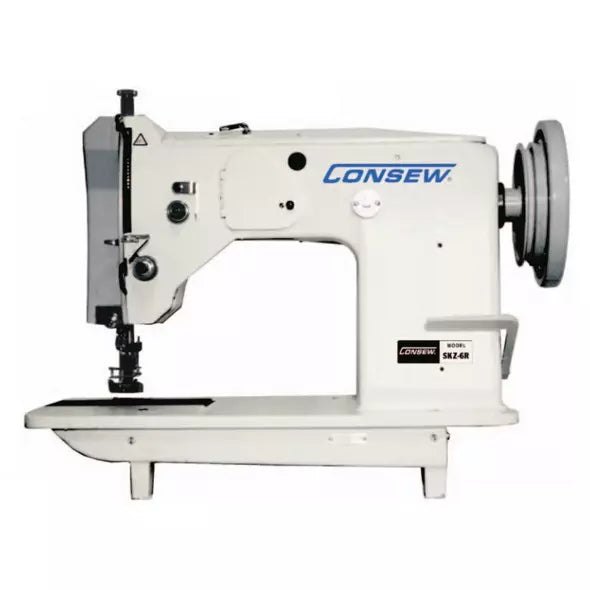

Consew SKZ-6R

is a powerhouse industrial sewing machine designed for medium to extra-heavyweight materials. Featuring an extra-wide zig-zag (up to 12.7mm) and a high-capacity horizontal axis rotary hook, it is built to handle the toughest tasks where standard machines fail. This machine provides the perfect balance of strength and precision for heavy manufacturing, bolstered by the efficiency of a silent, energy-saving Servo motor.

  • Massive Zig-Zag Width: Capable of an industry-leading 1/2" (12.7mm) stitch width for decorative and structural reinforcement.
  • Extra-Large Rotary Hook: Transverse horizontal axis hook allows for longer sewing runs and accommodates thicker heavy-duty threads.
  • Versatile Stitching: Produces high-quality Federal Stitch Type 304; easily handles layers of leather, canvas, and heavy synthetics.
  • Advanced Servo Motor: Includes a modern 110V Servo Motor—90% more energy efficient and significantly quieter than traditional clutch motors.
  • Precision Speed Control: Adjustable digital speed settings allow for slow, detailed work or high-speed production (up to 1,200 SPM).
  • Integrated Reverse: Convenient lever-actuated reverse stitching for easy seam back-tacking and reinforcement.
  • Stitch Type: Single Needle, Zig-Zag Lockstitch (Type 304)
  • Max Sewing Speed: 1,200 Stitches Per Minute (SPM)
  • Max Stitch Width: 1/2" (12.7 mm)
  • Max Stitch Length: 2 S.P.I. (14 mm)
  • Clearance Under Presser Foot: 33/64" (13 mm)
  • Needle System: 214 x 1
  • Needle Bar Stroke: 2" (50 mm)
  • Work Space: 10 5/8" (270 mm)
  • Bed Size: 10" x 20 15/32" (250 mm x 520 mm)
  • Feeding Mechanism: Drop Feed
  • Hook Type: Extra-Large Transverse Horizontal Rotary Hook (1855)
  • Bobbin: Metal 1441 / Pre-wound 57
  • Marine & Outdoor: Professional sailmaking, boat covers, and fishing net repair.
  • Heavy Materials: Industrial canvas, thick leather, vinyl, and synthetic webbing.
  • Industrial Goods: Heavy-duty luggage, carpets, rope products, and thick blankets.
  • Specialty Items: Tents, tarpaulins, and extra-heavy upholstery.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
