Consew SKZ-6 Heavy-Duty Single Needle Zig-Zag Industrial Sewing Machine

Consew SKZ-6 Heavy-Duty Single Needle Zig-Zag Industrial Sewing Machine

SKZ-6

Complete Unit: Includes Table, Stand, and Adjustable Servo Motor

Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

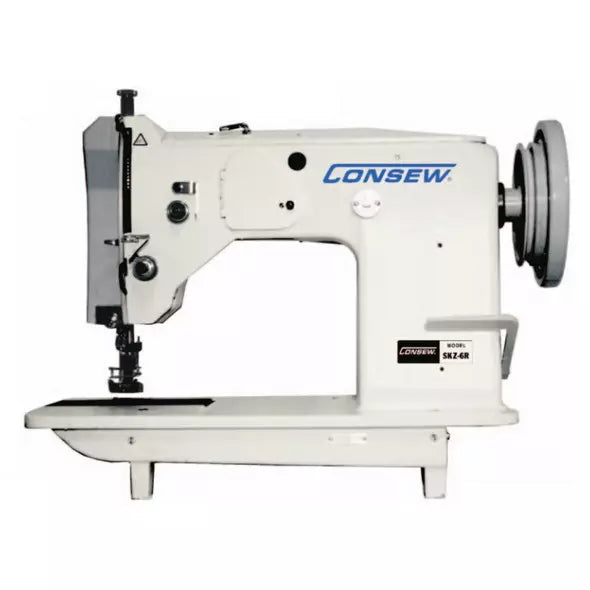

Consew SKZ-6

is a powerhouse industrial zig-zag machine engineered for medium to extra-heavyweight materials. Built for durability and precision, it features an extra-large rotary hook and an extra-wide zig-zag capability (up to 12.7mm). This machine is the industry standard for manufacturing high-tension products like luggage, ropes, and heavy canvas goods. Coupled with a silent, energy-efficient Servo motor, the SKZ-6 offers superior control for both high-speed production and detailed specialty work.

Product Comparison:

  • SKZ-6: Standard heavy-duty 2-point zig-zag.

  • SKZ-6-3: Specialized 3-step (4-point) zig-zag version for elastic/stretching materials.

  • SKZ-6R: Includes manual reverse lever for back-tacking reinforcement.

  • Extra-Wide Zig-Zag: A massive 1/2" (12.7mm) maximum stitch width for versatile structural and decorative applications.
  • Large Rotary Hook: Transverse horizontal axis rotary hook allows for longer runs with thicker threads and reduces bobbin change frequency.
  • Heavy-Duty Build: Designed specifically to penetrate dense materials like leather, vinyl, canvas, and synthetic webbing.
  • Advanced Servo Motor: Includes a modern 110V Servo motor—uses 90% less power than traditional clutch motors and operates in near silence.
  • Variable Speed Control: Digital speed adjustment allows you to set a maximum speed for precise handling of bulky or delicate projects.
  • Drop Feed System: Ensures consistent and reliable material movement for high-quality, professional lockstitch results.
  • Stitch Type: Single Needle, 2-Point Zig-Zag Lockstitch (Federal Type 304)
  • Max Sewing Speed: 1,200 Stitches Per Minute (SPM)
  • Max Stitch Width: 1/2" (12.7 mm)
  • Max Stitch Length: 2 S.P.I. (14 mm)
  • Clearance Under Presser Foot: 33/64" (13 mm)
  • Needle System: 214 x 1
  • Needle Bar Stroke: 2" (50 mm)
  • Work Space: 10 5/8" (270 mm)
  • Bed Size: 10" x 20 15/32" (250 mm x 520 mm)
  • Hook Type: Extra-Large Horizontal Axis (Hook #1855)
  • Outdoor & Marine: Sailmaking, boat covers, heavy tents, and fishing net repair.
  • Industrial Goods: Luggage manufacturing, heavy-duty bags, and carpet binding.
  • Specialty Fabrics: Rope products, heavy blankets, vinyl, and canvas assembly.
  • Heavy Apparel: Leather alternatives, synthetic webbing, and reinforced protective gear.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
