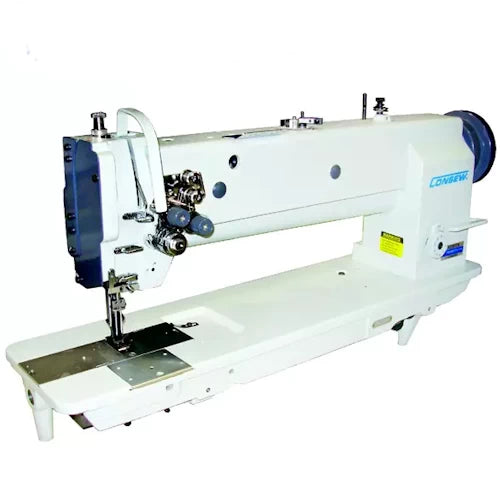

Consew P2339RBLH-18-1 18" Long Arm, Double Needle Walking Foot Industrial Sewing Machine

Consew P2339RBLH-18-1 18" Long Arm, Double Needle Walking Foot Industrial Sewing Machine

P2339RBLH-18-1

Heavy Duty, High Speed, Two Needle, Lockstitch Industrial Sewing Machine, Drop Feed, Needle Feed, and Alternating (Walking) Presser Feet

$5,899.95
$5,899.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew P2339RBLH-18-1

 is a powerhouse long-arm machine engineered for heavy-duty industrial applications where extra workspace and vertical clearance are non-negotiable. Featuring a massive 18-inch horizontal throat and an increased 6-inch vertical work space, this "High-Clearance" model easily handles bulky assemblies like tents, upholstery, and truck covers. Its triple-feed (drop, needle, and walking foot) mechanism ensures perfectly synchronized feeding of multiple layers of heavy material without slippage or uneven stitches.

  • Extended 18" Long Arm: Provides 457mm of horizontal workspace to the right of the needle, allowing for the easy maneuvering of large, heavy projects.
  • Increased 6" Vertical Clearance: Specifically designed with a higher arm profile to accommodate thick rolls of fabric or tall, multi-layered assemblies.
  • Double Needle Precision: Standard 1/4" needle gauge (with other sizes available) for perfectly parallel double-stitch lines in a single pass.
  • Triple Feed System: Synchronized drop feed, needle feed, and walking foot technology eliminates fabric shifting on leather, canvas, and synthetics.
  • Large Vertical Axis Hooks: Top-loading bobbins and auto-oiled hooks are designed for high-capacity thread use, significantly reducing downtime for bobbin changes.
  • Safety Clutch Mechanism: Protects the internal timing of the machine by automatically disengaging the hooks in the event of a thread jam or needle strike.
  • Energy-Efficient Servo Motor: Includes a digital 110V servo motor for silent operation, precise speed control, and up to 90% energy savings over traditional motors.
  • Speed, Max. (S.P.M.): 2000 *Speed depends on thread, material and operation.
  • Presser Foot Lift:
    By Hand:     5/16" (8 mm)
    By Knee:     33/64" (13 mm)
  • Needle Bar Stroke: 1-27/64" (36 mm)
  • Stitch Length, Max: 2.8 s.p.i. (9 mm)
  • Work Space: 18" x 4-1/4" (457 x 110 mm)
  • Working Height Under Arm: 4” (102 mm) maximum
  • Needles: 135 x 17 (x 2)
  • Pre-wound Bobbin: U or S
  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Walking Foot
  • Workspace: Long Arm
  • Standard or Full Function: Standard Function
  • Stitch Type: 301

Built for extreme durability, the P2339RBLH-18-1 is ideal for:

  • Upholstery: Automotive interiors, boat covers, and furniture.
  • Heavy Canvas Work: Tents, awnings, and industrial curtains.
  • Safety Gear: Parachutes, tactical vests, and cargo slings.
  • Bags & Luggage: Heavy-duty travel bags and leather goods.
  • Outdoor Gear: Pool covers, hot tub lids, and heavy tarps.

DOWNLOADS:

U.S. WARRANTY:


90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Consew P2339RBLH-18-1 Double Needle, Long Arm Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
