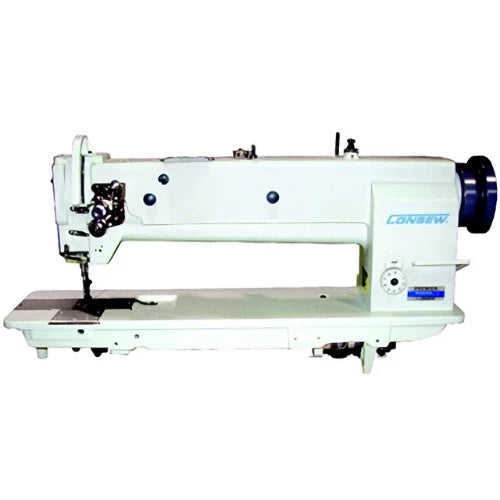

Consew P1255RBLH-18 Long-Arm Walking Foot Sewing Machine

Consew P1255RBLH-18 Long-Arm Walking Foot Sewing Machine

P1255RBLH-18

Single-Needle, Compound Feed (Triple Feed) Industrial Lockstitch System

$4,799.95
$4,799.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew P1255RBLH-18 -1

is a premier industrial workhorse engineered for large-scale upholstery and heavy material assembly. The "18" in its model name signifies the 18-inch long arm, providing a massive workspace under the neck for rolled-up leather, bulky furniture covers, or large marine sails that a standard machine simply cannot accommodate.

Equipped with a Compound Feed (Triple Feed) mechanism—where the needle, feed dog, and walking foot move in unison—it guarantees that even the most difficult, multi-layered fabrics move through the machine without shifting or bunching.

  • 18" Long Arm Workspace: Provides 457mm of horizontal space, ideal for large projects like automotive seat covers, boat tops, and tents.
  • Triple Feed (Compound Feed): Synchronized movement of the walking foot, needle, and feed dog ensures perfect feeding on slippery or heavy hides.
  • Large Top-Loaded Bobbin: Features a high-capacity vertical-axis hook that allows you to change bobbins from the top without removing your project.
  • Safety Clutch System: Protects the machine's timing and internal gears by automatically disengaging if the thread jams.
  • Adjustable Oil Pump: Features a centralized lubrication system with a transparent upper sight glass for easy maintenance and smooth operation.
  • Quick Tension Release: Automatically releases thread tension when the presser foot is raised, making it easier to remove heavy materials.
  • Speed, Max. (S.P.M.): 2000 *Speed depends on thread, material, and operation.
  • Presser Foot Lift:  By Hand: 5/16" (8 mm) By Knee: 33/64" (13 mm)
  • Needle Bar Stroke: 1-27/64" (36 mm)
  • Max Stitch Length: 2.8 s.p.i. (9 mm)
  • Work Space: 18" x 4-1/4" (457 x 110 mm)
  • Working Height Under Arm: 4” (102 mm) maximum
  •  Needle: 135 x 17
  •  Pre-wound Bobbin: U or S
  • Automotive & Marine: Large seat covers, convertible tops, and boat upholstery.
  • Industrial Goods: Tents, awnings, vinyl banners, and heavy-duty covers.
  • Furniture: Large leather sofas, armchairs, and slipcovers.
  • Luggage: Heavy-duty travel bags and oversized sports equipment.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
