Consew P1206RB-1 Single Needle Heavy-Duty Walking Foot Machine

Consew P1206RB-1 Single Needle Heavy-Duty Walking Foot Machine

P1206RB-1

Industrial Strength | Large "M" Bobbin | Complete Unit with Servo Motor

$1,499.95
$1,499.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

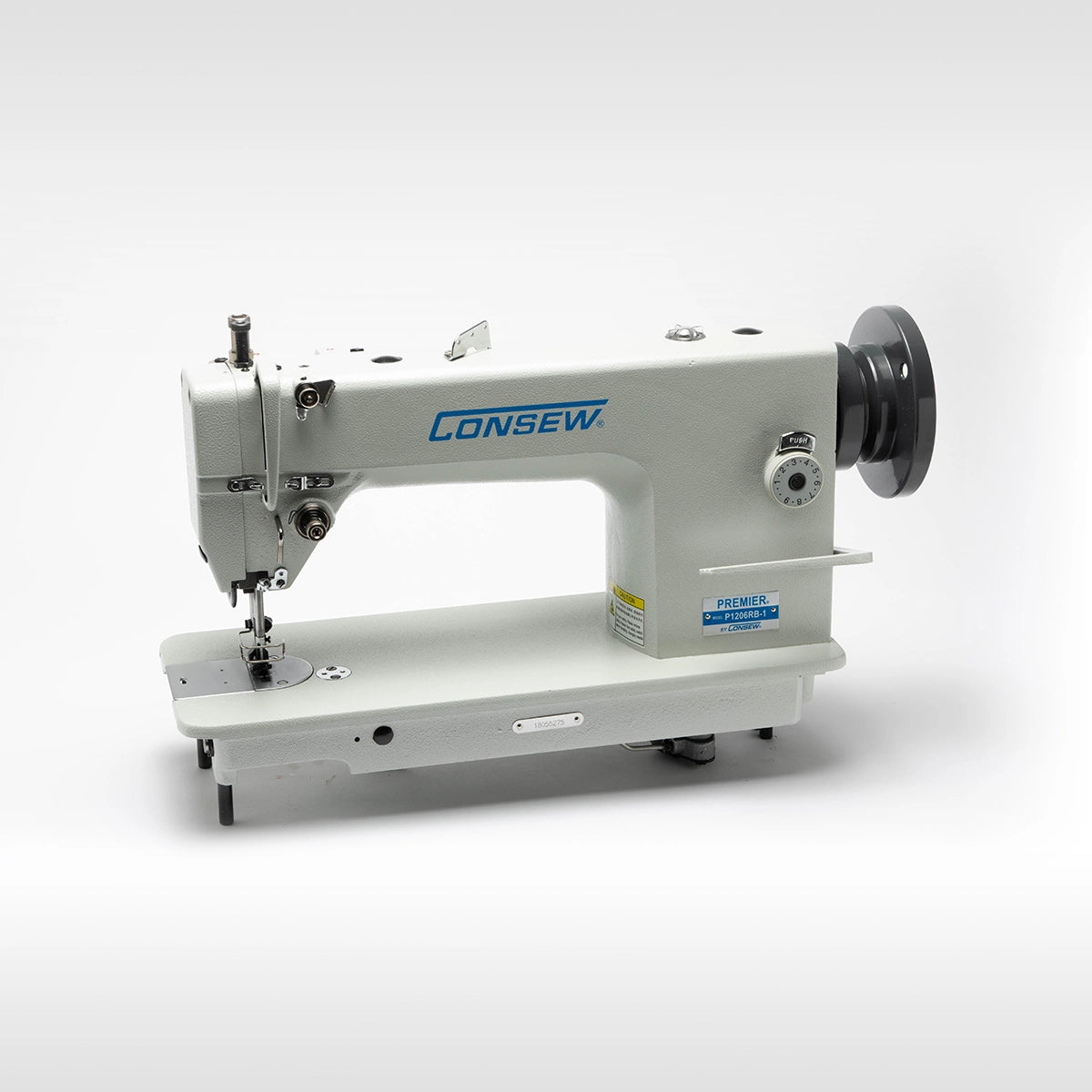

Consew P1206RB-1

is a heavy-duty workhorse designed for professional upholstery, leatherwork, and canvas assembly. Featuring a Top and Bottom Feed (Walking Foot) mechanism, this machine eliminates the "ply-shifting" that occurs with standard machines, ensuring that the top and bottom layers of your material move in perfect synchronization.

Paired with an energy-efficient Electronic Servo Motor, the P1206RB-1 offers incredible piercing power even at low speeds—essential for precision work on thick leather or multi-layered webbing. This unit is the ideal choice for those who need industrial-grade reliability in a straightforward, mechanical design.





  • True Walking Foot Mechanism: The synchronized feeding of the feed dog and the presser foot ensures a smooth feed of heavy materials like vinyl, leather, and laminated fabrics.
  • Large "M" Style Bobbin: Features a large horizontal-axis rotary hook and bobbin, holding significantly more thread than standard machines to minimize interruptions.
  • Whisper-Quiet Servo Motor: The 110V Electronic Servo Motor allows for adjustable speed control and consumes up to 90% less energy than traditional clutch motors.5
  • High Presser Foot Clearance: A 14mm (9/16") foot lift allows you to easily slide thick assemblies or bulky seams under the needle.
  • Safety Clutch: Equipped with a built-in safety clutch mechanism that automatically disengages the hook in the event of a thread jam, protecting the machine’s timing.
  • Adjustable Stitch Length: Easily modify your stitch length up to 8mm using the tactile stitch-length dial.
  • Automatic Lubrication: Features a centralized oiling system to keep internal components running smoothly under high-demand use.

Speed, Max. (S.P.M.): 3000 *Speed depends on thread, material and operation.

  • Presser Foot Lift: By Hand- 5/16" (8 mm) / By Knee- 5/8" (16 mm)
  • Needle Bar Stroke: 1-29/64" (37 mm)
  • Stitch Length, Max: 3.6 s.p.i. (7 mm)
  • Work Space: 10-1/4" x 4-3/4" (260 x 120 mm)
  • Needle: 135 x 17
  • Feed Dog: 18031
  • Pre-wound Bobbin: M

The P1206RB-1 is specifically engineered for:

  • Automotive & Marine Upholstery: Car seats, boat covers, and vinyl interiors.
  • Leather Crafting: Handbags, wallets, belts, and chaps.
  • Furniture Work: Re-upholstering sofas, chairs, and heavy-duty cushions.
  • Canvas & Webbing: Tents, tactical gear, backpacks, and pet collars.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
