Consew 333RB-3 High-Speed Double Needle Walking Foot Industrial Sewing Machine

Consew 333RB-3 High-Speed Double Needle Walking Foot Industrial Sewing Machine

333RB-3

High Speed Two Needle Lockstitch Industrial Sewing Machine With Table And Servo Motor

$3,899.95
$3,899.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

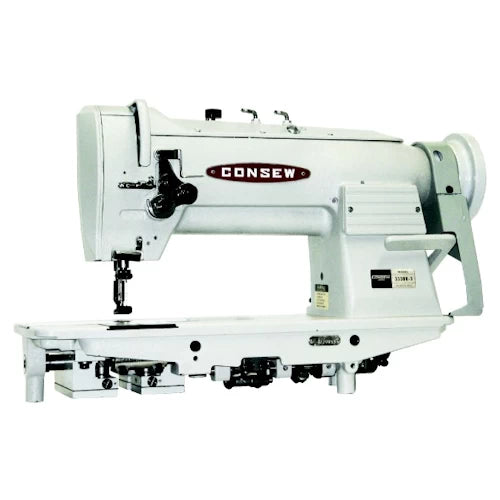

Consew Model 333RB-3

is an industrial powerhouse designed for high-speed, heavy-duty stitching. This double-needle lockstitch machine features a Triple Feed (Walking Foot) mechanism, ensuring that even the slickest or bulkiest materials—like leather, vinyl, and laminated fabrics—move through the machine with absolute precision. With its large vertical-axis hooks and high-speed capability, it is the industry standard for creating perfectly parallel reinforced seams on automotive interiors, furniture, and heavy canvas.

  • Triple Feed (Compound Feed) Mechanism: Utilizes a synchronized feeding action (drop feed, needle feed, and walking foot) to eliminate material shifting and ensure uniform stitch length across multiple layers.
  • Large Vertical-Axis Hooks: Equipped with hooks that are significantly larger than standard models, allowing for higher thread capacity and fewer bobbin changes during long production runs.
  • Double Needle Precision: Creates two rows of perfectly parallel lockstitching simultaneously. Standard 1/4" gauge is included (other gauge sets available).
  • High-Speed Performance: Reaches up to 2,800 SPM, making it one of the fastest walking foot machines in its class for increased throughput.
  • Centrifugal Oil Pump System: Features a fully automatic lubrication system with a dedicated pump to ensure all internal components remain oiled during high-speed operation.
  • Safety Clutch: Automatically disengages the timing belt if the thread jams, preventing damage to the hooks and internal gears.
  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Needle Feed
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Max Speed: 2800 spm
  • Clearance Under Presser Foot: 2 1/64" (8.5mm)
  • Stitch Length: 4 s.p.i. (6.5mm)
  • Work Space: 10" (254mm)
  • Needle: 135 x 17
  • Bobbin Pre-Wound: S or U
  • Bed Size: 7" 20-3/8" (177mm x 518mm)
  • Stitch Type: 301
  • Needle Bar Stroke: 1 5/16" (33mm)
  • Available Needle Spacings: 1/16" (1.6mm) - 1 1/2" (38.1mm)
  • Standard Needle Spacing: 1/4" (6.4mm)
  • Hook: 15502

The 333RB-3 is engineered for durability in the following industries:

  • Automotive & Marine: Sewing seat covers, dashboards, boat interiors, and convertible tops.
  • Upholstery: Leather sofas, heavy vinyl furniture, and decorative cushions.
  • Heavy Canvas Work: Tents, awnings, covers, and sails.
  • Leather Goods: Handbags, belts, and reinforced luggage seams.
  • Synthetic Materials: Laminated fabrics and plastic-coated materials.

DOWNLOADS:

339RB&333 Parts Manual

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
