Consew CSM3000 Sewing Machine Electric Servo Motor, 110 Volt, 1HP, 750W

Consew CSM3000 Sewing Machine Electric Servo Motor, 110 Volt, 1HP, 750W

CSM3000

$291.95
$291.95 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description

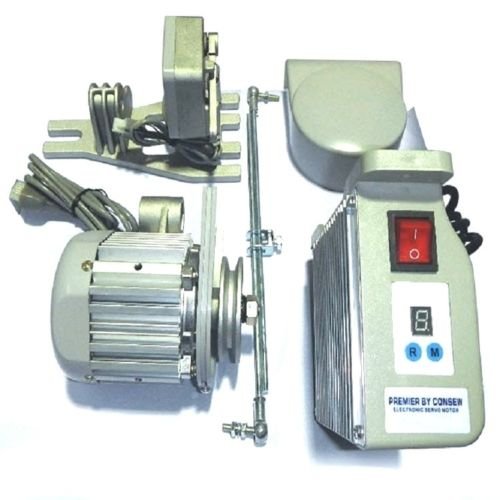

Consew CSM3000 Electric Brushless Servo Motor For Industrial Sewing Machines. Energy Effient - Saves up to 70% Electricity. 1HP, 750 Watts Powerful Heavy-Duty electric servo motor for any type of industrial sewing machines for light to heavy duty work including straight stitch machines, overlocks, zigzag stitching machines, blindstitch machines, heavy duty walking foot and heavy duty upholstery machines. Uses the same mounting holes as a clutch motor No noise or vibration when machine is not running Draws minimal electricity when machine is not running High Torque D.C. Electronic Servo Motor Easy to adjust speed & motor direction with buttons No clutch disc Adjustable belt tightener Belt guard, pulley & mounting hardware included Light weight Approx, 10-12 lbs. (5 kgs) Starts-up at low speed Works well on heavy duty machines Speed : 0 - 3,600RPM 110 Volt, 1HP, 750 Watts Includes power cord and plug (not shown in the photo.)

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
