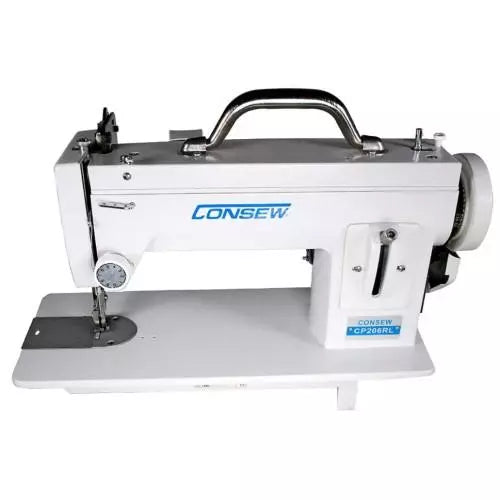

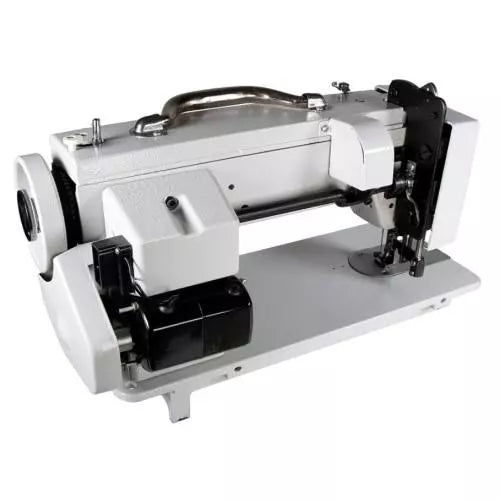

Consew CP206RL | Portable Long-Arm Walking Foot Locksmith Industrial Sewing Machine with Built-in Motor

Consew CP206RL | Portable Long-Arm Walking Foot Locksmith Industrial Sewing Machine with Built-in Motor

CP206RL

Built-in Motor, Heavy-Duty, Upholstery & Canvas, Max6mmStitch Length

$524.95
$524.95 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew CP206RL

bridges the gap between a domestic machine and a full-sized industrial table. Featuring a 7" x 12.5" work area, it provides nearly double the space of standard portable machines, making it much easier to manage bulky items like boat covers, sails, and upholstery panels. Its built-in Walking Foot (Top Feed) mechanism works in tandem with the bottom feed dogs to ensure that thick or slippery materials—like vinyl, leather, and canvas—feed through perfectly without shifting or bunching.




  • Marine Work: Repairing boat covers, bimini tops, and sail covers on-site.
  • Upholstery: Working with vinyl, foam-backed fabrics, and furniture upholstery.
  • Leathercraft: Stitching belts, holsters, and light-to-medium leather bags.
  • Outdoor Gear: Heavy canvas repairs, tents, and webbing.
  • Long Arm Workspace: The extended arm provides a generous 12.5-inch clearance, essential for handling rolled canvas or large upholstery projects.
  • True Walking Foot (Top Feed): Unlike a "dual feed" attachment, this has a built-in mechanical walking foot that provides positive feeding for heavy-duty materials.
  • All-Metal Construction: Built with a heavy-duty metal frame and internal gears for long-lasting durability and stability under load.
  • Built-in 110V Motor: Features a powerful, high-torque 1.5 Amp motor with an electronic foot controller for precise speed management.
  • Reverse Stitching: Equipped with a dedicated reverse lever for reinforcing seams and backtacking.
  • Clevis Linkage: Utilizes a heavy-duty clevis linkage for the stitch length regulator, ensuring durability during high-tension sewing.
  • Machine Type : Portable Long-Arm Walking Foot
  • Workspace (Clearance) : 12.5" (Length) x 7" (Height)
  • Max. Sewing Speed : 800 stitches per minute
  • Max. Stitch Length : 6 mm
  • Needle System : 135 x 17 (DPx17)
  • Needle Sizes : #18 to #22
  • Under-Foot Clearance : 3/8" (10 mm)
  • Motor : 110V, 1.5 Amp, 150 Watt
  • Machine Weight : Approx. 42 lbs

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
