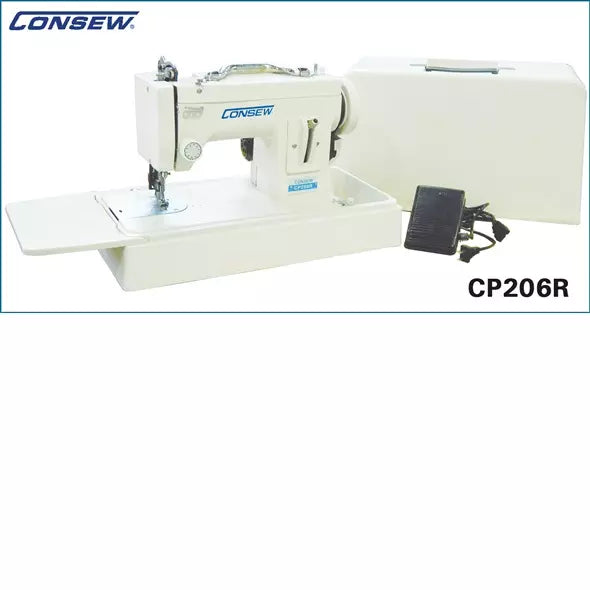

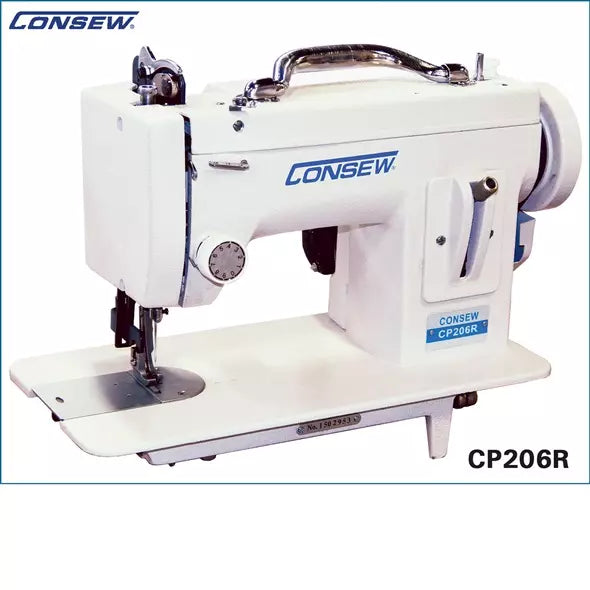

Consew CP206R Portable Walking Foot Industrial Sewing Machine

Consew CP206R Portable Walking Foot Industrial Sewing Machine

CP206R

Professional Heavy-Duty Power in a Compact, On-the-Go Design

$447.00
$447.00 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew CP206R

is a specialized, single-needle portable walking foot machine designed for sewing light-to-heavyweight materials wherever you need them. Engineered for durability and mobility, this "mini-industrial" unit handles challenging fabrics like leather, canvas, and upholstery with ease. Unlike domestic machines, the CP206R features a synchronized top-and-bottom feed (walking foot) that ensures even stitching through multiple layers without shifting or bunching. It is the gold standard for mobile repair, boat upholstery, and small-scale leathercraft.

Consew CP206R

is the ultimate portable solution for heavy-duty sewing. Designed for professionals who need industrial results on-site, it excels at leatherwork, marine upholstery, and outdoor gear repair. It bridges the gap between household portability and industrial performance, making it the top choice for hobbyists and mobile technicians alike.

  • Marine & Auto Upholstery: Perfect for boat covers, sails, and vehicle seat repairs.
  • Leathercraft: Ideal for wallets, bags, and light-to-medium weight leather accessories.
  • Outdoor Equipment: Sewing and repairing tents, awnings, tarpaulins, and backpacks.
  • Heavy Apparel: Constructing denim jackets, workwear, and canvas shoes.
  • Orthopedic Appliances: Precise stitching for heavy-duty braces and support gear.
  • Dual-Feed Walking Foot: Independent upper and lower feed dogs work in tandem to pull thick or slippery materials through the machine consistently.
  • Portable Industrial Strength: Built with an all-metal internal frame, providing the stability of a stationary industrial machine in a 41-lb portable body.
  • Built-in 110V Motor: No specialized wiring or heavy tables required; simply plug into any standard household outlet and begin sewing.
  • High Clearance Presser Foot: Offers up to 1/4" (6.5mm) of lift, allowing you to easily position thick leather or layered canvas under the needle.
  • Geared Reduction Pulley: The cleated "posi-traction" belt and reduction pulley system deliver high torque at low speeds—essential for precise work on leather.
  • Reverse Stitching: Includes a responsive reverse lever for easy back-tacking and reinforcing seam ends.
  • Machine Type: Single-Needle Lockstitch
  • Feed Type: Walking Foot (Top & Bottom Feed)
  • Max Sewing Speed: 800 Stitches Per Minute (SPM)
  • Max Stitch Length: 6.0 mm (approx. 4 stitches per inch)
  • Underarm Space: 7" x 4.5" (178 mm x 115 mm)
  • Needle System: 135 x 17 (DPx17) | Sizes #18 to #23
  • Recommended Thread: Up to Size #92 Bonded Nylon/Polyester
  • Motor: 1/10th HP, 110VAC, 1.5 Amp (150W)
  • Hook Type: Horizontal Oscillating Hook
  • Net Weight: 41 lbs (18.6 kg)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
