Consew CN7A "Tuffy" Heavy Duty Portable Bag Closer – Single Thread Chainstitch

Consew CN7A "Tuffy" Heavy Duty Portable Bag Closer – Single Thread Chainstitch

CN7A

Featuring an Extra Heavy Feed Dog With Oil Lubrication System.
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

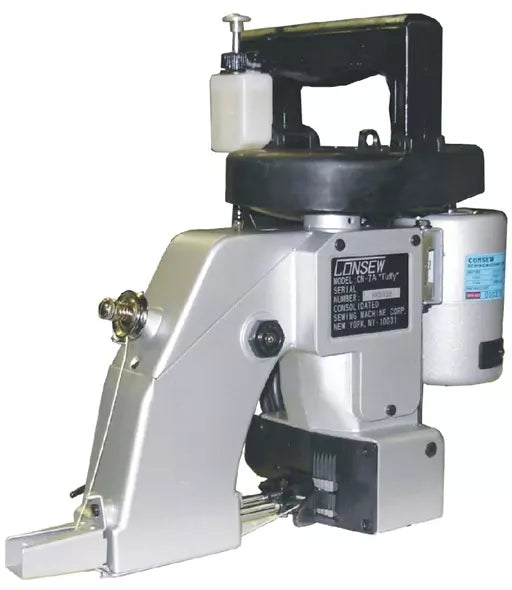

The Consew CN7A

affectionately known in the industry as the "Tuffy," is a high-performance portable bag closer engineered for reliability in the most demanding conditions. While sharing the "Newlong style" ergonomics of lighter models, the CN7A is upgraded with a totally enclosed, dust-proof motor and an extra-heavy feed dog system. This allows it to start sewing thick materials instantly without needing to manually raise the presser foot. Whether you are sealing bags in a dusty grain elevator or a chemical plant, the CN7A delivers a secure, professional single-thread chainstitch every time.

The CN7A is the preferred "workhorse" for:

  • Agricultural Packing: Grain, animal feed, seeds, and fertilizer bags.
  • Food Staples: Bulk bags of flour, sugar, salt, rice, and coffee beans.
  • Chemicals & Minerals: Handling abrasive or dusty materials that would clog standard motors.
  • Construction & Military: Manufacturing sandbags and erosion control bags.
  • Geotextiles: Joining fabrics for tarps, banners, and environmental covers.
  • Totally Enclosed & Sealed Motor: Specifically designed for environments with high levels of dust, debris, or fine particles (like flour or chemicals), preventing motor burnout and extending machine life.
  • Extra Heavy Feed Dog: Features an aggressive feeding mechanism that easily pulls through thick jute, heavy burlap, and multi-wall paper bags without slipping.
  • Automatic Thread Cutter: Integrated protected cutting blades sever the thread automatically as you finish the bag, significantly speeding up production.
  • High-Speed Operation: Reaches speeds of up to 1,800 Stitches Per Minute (SPM), allowing you to close a standard bag in mere seconds.
  • Pump Oil Lubrication System: A manual pump-action oiler directs lubrication to all vital moving components, ensuring smooth operation during long shifts.
  • Shock-Resistant Handle: Equipped with a safety-insulated plastic handle that reduces vibration and protects the operator from electrical hazards.
  • Versatile Mounting: Perfectly balanced for handheld use, but easily adapted for stationary use with an overhead spring balancer.
  • Stitch Type : Single-Thread Chainstitch (Type 101)
  • Max Sewing Speed : 1,600 – 1,800 SPM
  • Max Stitch Length : 9/32" (7.2 mm) / ~3.5 Stitches Per Inch
  • Needle System : 92 x 1 (Size 25)
  • Motor Type : Totally Enclosed 110V (220V available)
  • Weight : 12 lbs (5.4 kg)
  • Feeding Mechanism : Heavy-Duty Drop Feed
  • Looper Type : a-300

DOWNLOADS

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
