Consew CN2093R High-Speed Zig-Zag & Straight Stitch Industrial Sewing Machine

Consew CN2093R High-Speed Zig-Zag & Straight Stitch Industrial Sewing Machine

CN2093R

Complete Unit: Includes Assembled Table, Heavy-Duty Stand, and Adjustable Servo Motor

$1,299.95
$1,299.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

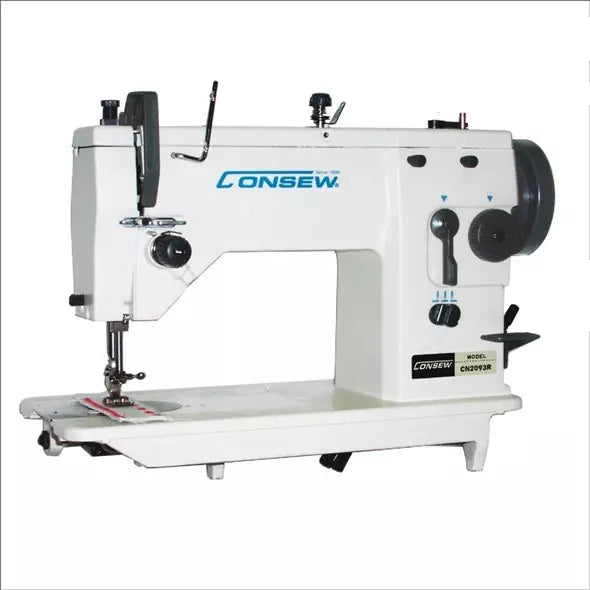

Consew CN2093R

is a versatile, high-speed industrial zig-zag and lockstitch machine designed for professional garment construction and heavy-duty repairs. Featuring automatic lubrication and a robust horizontal axis rotary hook, it excels in stitching light to medium-heavyweight materials. Whether you are attaching lace, hemming, or working with leather articles and bags, the CN2093R delivers precision and durability in a single-needle setup.

The CN2093R is often compared to the legendary "20U" style machines but adds the convenience of automatic lubrication, making it a superior choice for high-volume environments where manual oiling would be a bottleneck. Its ability to transition from a 9mm wide zig-zag to a perfect straight stitch makes it one of the most versatile machines in any professional shop.

  • Dual Functionality: Easily switches between a wide zig-zag and a standard straight lockstitch (Type 301/304).
  • Automatic Lubrication: Features a built-in oil pump system to ensure smooth operation and long-term mechanical durability with minimal maintenance.
  • Locking Regulator: Includes a dial-type zig-zag regulator with a locking device to maintain consistent stitch width during high-speed operation.
  • Heavy-Duty Construction: Built with hardened steel metal gears for high-torque performance on denser fabrics and leather.
  • Integrated Monogramming: Features a built-in free-hand monogramming lever for creative and decorative applications.
  • Servo Motor Efficiency: Equipped with a 110V digital Servo motor that is 90% more energy-efficient and significantly quieter than traditional clutch motors.
  • Stitch Type: Single Needle, Zig-Zag & Straight Lockstitch (Type 301/304)
  • Max Sewing Speed: 2,000 Stitches Per Minute (SPM)
  • Max Stitch Width: 11/32" (9 mm)
  • Max Stitch Length: 5 S.P.I. (5 mm)
  • Presser Foot Lift: 25/64" (10 mm by knee) / 15/64" (6 mm by hand)
  • Needle System: 135 x 5
  • Work Space: 8 5/16" (211 mm)
  • Bed Size: 7" x 15 11/16" (178 mm x 398.5 mm)
  • Hook Type: Horizontal Axis Transverse Rotary Hook
  • Lubrication: Fully Automatic
  • Garment Construction: Ideal for clothing, intimate apparel, lace attachment, and bottom hemming.
  • Specialty Items: Perfect for shoes, caps, bags, and leather articles.
  • Reinforcement: Used for elastic band attachment, edge stitching, and butted seaming.
  • Decorative Work: Highly capable for appliqué and free-hand monogramming.

Downloads

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
