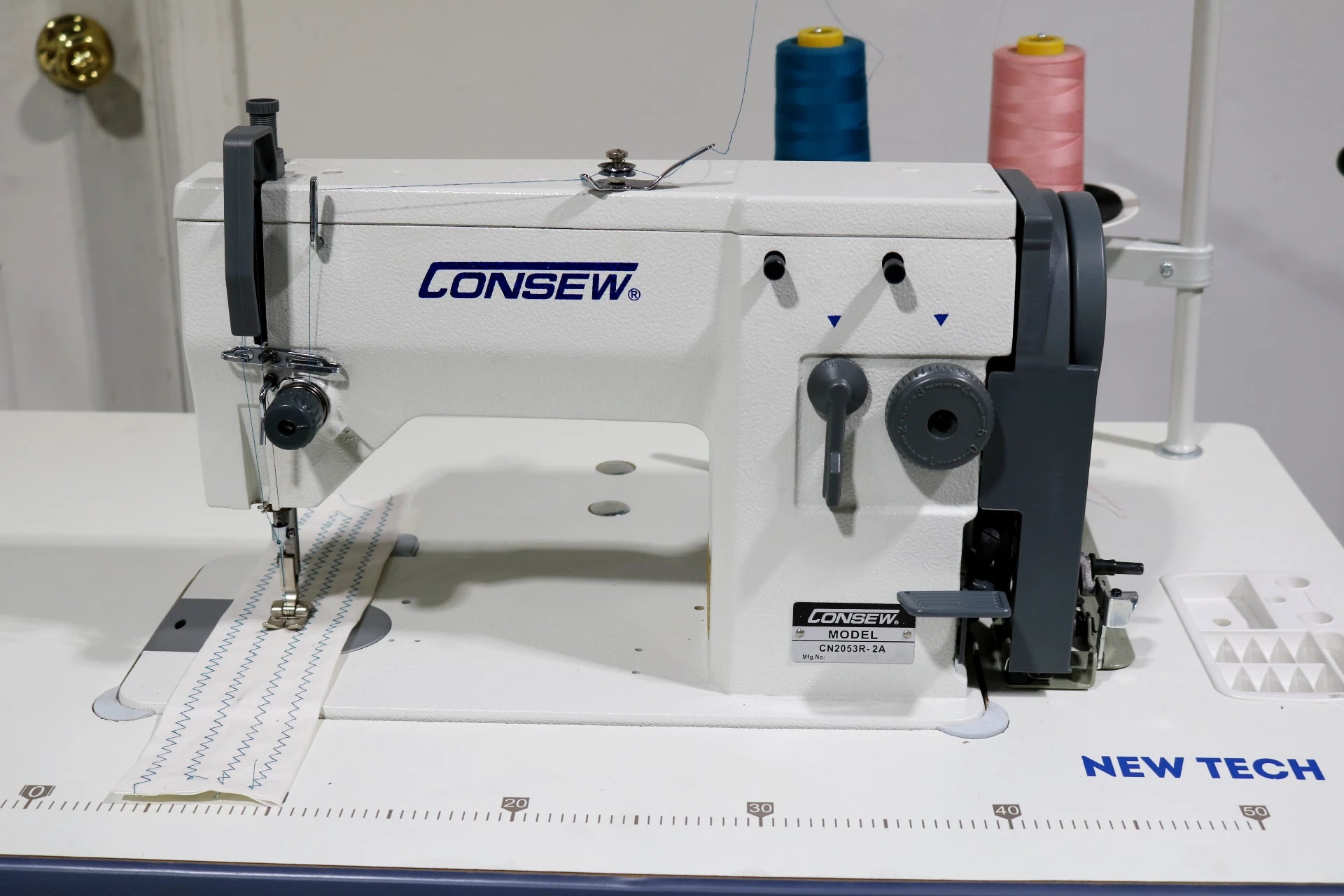

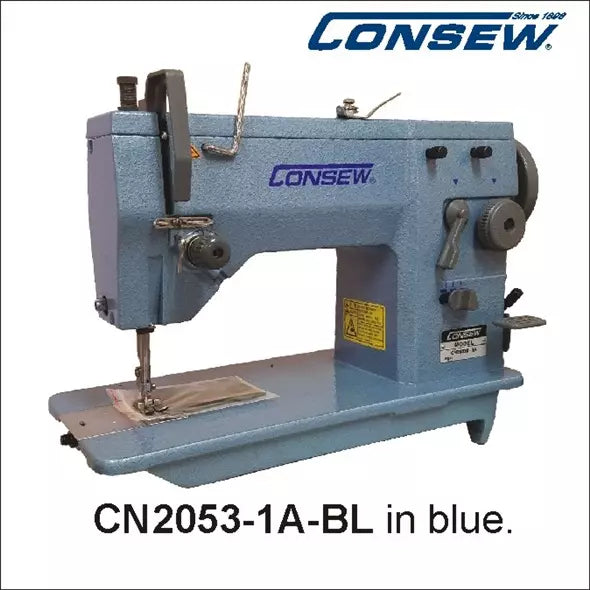

Consew CN2053R-2A 3-Step Zig-Zag Industrial Sewing Machine with Table and Servo Motor

Consew CN2053R-2A 3-Step Zig-Zag Industrial Sewing Machine with Table and Servo Motor

CN2053R-2A

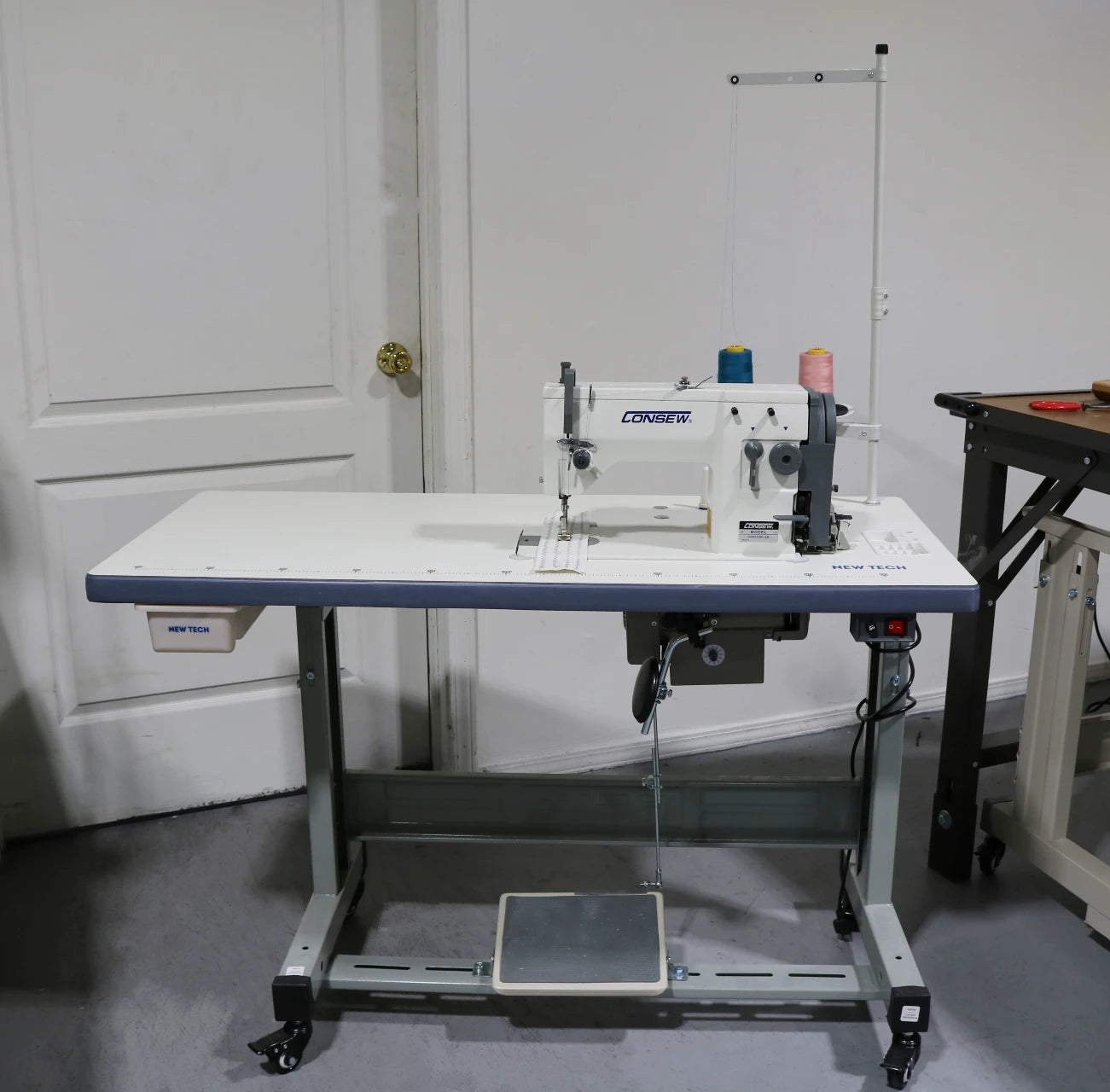

3 Step Zig-Zag Lockstitch Industrial Sewing Machine Comes With Table, Legs, Servo Motor and LED Lamp

$1,569.95
$1,569.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew CN2053R-2A

is a high-speed, heavy-duty industrial zigzag machine specifically designed for technical sewing where stitch elasticity and seam strength are paramount. Unlike a standard zigzag that uses a single stitch per swing, this 3-step (4-point) machine executes three small stitches for every zigzag cycle. This prevents the "tunneling" effect common in elastic materials and ensures that the seam can stretch without the thread snapping. Built for longevity, it features a semi-automatic lubrication system and high-speed performance for demanding production environments.

  • Specialized 3-Step (4-Point) Zigzag: Distributes thread tension across four points per cycle, providing maximum seam elasticity and preventing fabric puckering on light-to-medium materials.
  • Large Hook and Base: Equipped with a high-capacity horizontal axis hook that allows for longer sewing times between bobbin changes.
  • Adjustable Stitch Width & Length: Precision dials allow you to customize the zigzag width up to 10mm and stitch length up to 5mm for varied decorative or functional requirements.
  • Semi-Automatic Lubrication: Features a built-in oiling system that ensures internal gears and the hook remain lubricated, reducing heat buildup and wear.

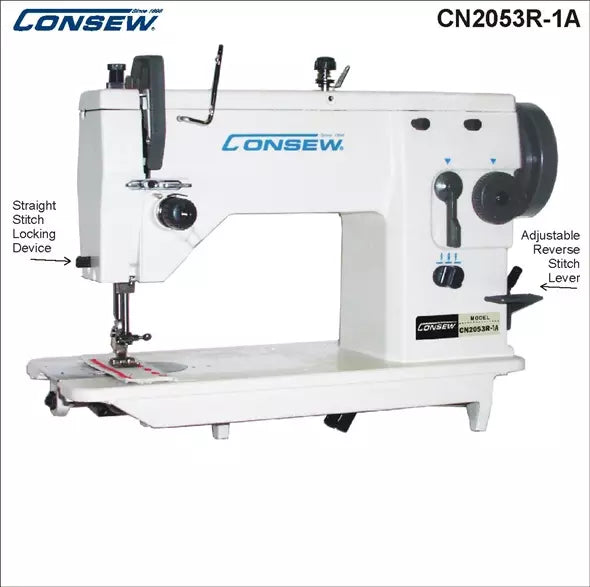

  • Reverse Feeding: Easily accessible lever for backtacking and reinforcing the beginning and end of seams.

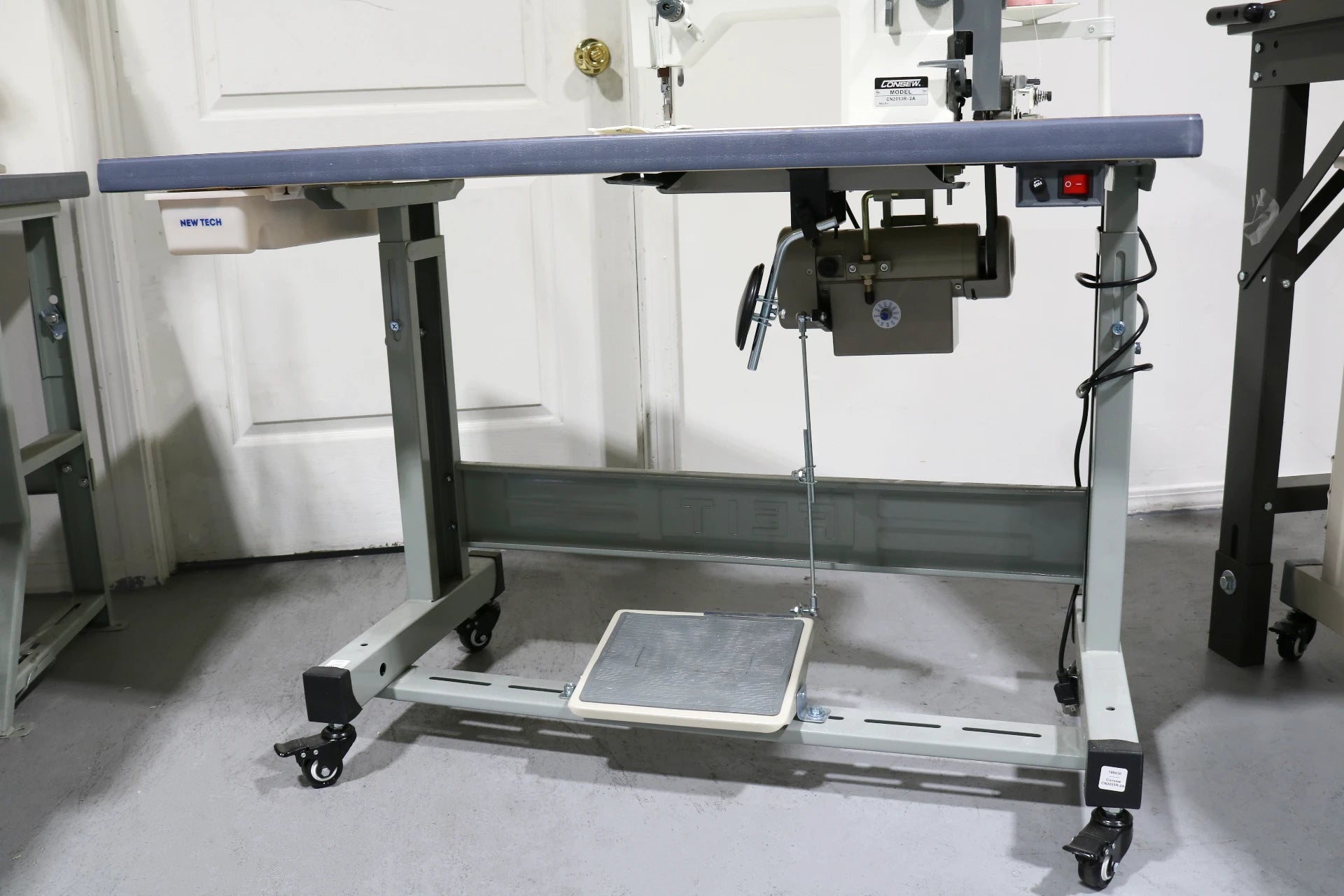

  • Energy-Efficient Servo Motor: The included 110V digital servo motor provides silent operation, adjustable speed control, and significantly lower energy costs compared to traditional clutch motors.

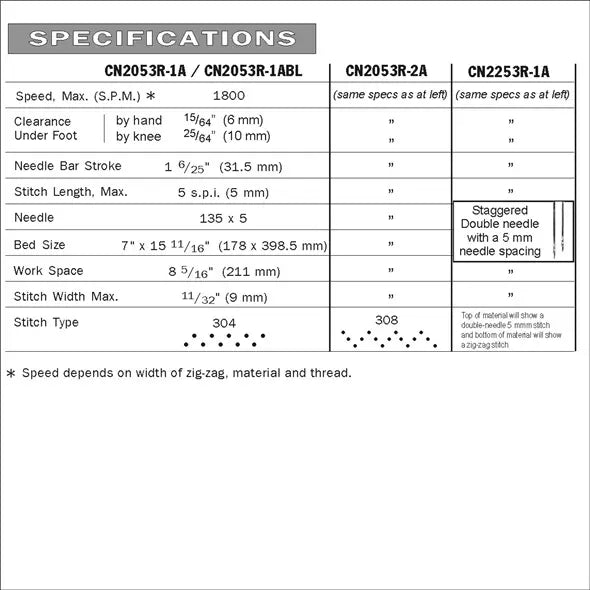

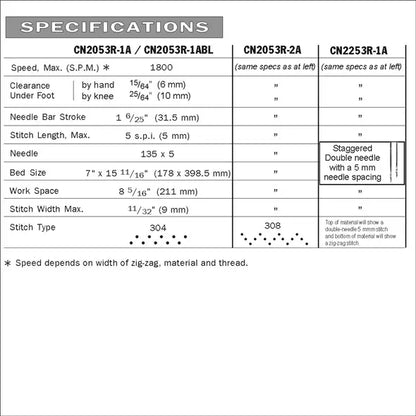

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Drop Feed
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 1800
  • Stitch Length: 5 s.p.i. (5mm)
  • Clearance Under Presser Foot: Foot 25/64” (10 mm), Hand 15/64” (6 mm)
  • WorkSpace: 8 5/16" (211mm)
  • Needle: 135 x 5
  • Bed Size: 7" 15 11/16" (178mm x 398.5mm)

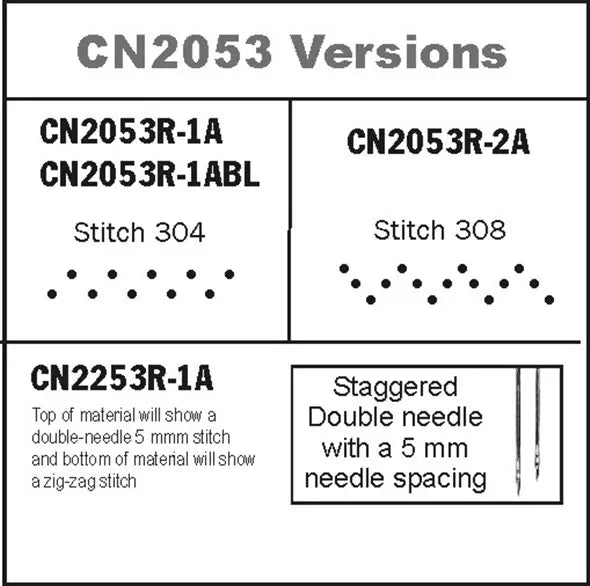

  • Stitch Type: 304/301
  • Needle Bar Stroke: 1 6/25" (31.5mm)
  • Stitch Width, Max: 11/32" (9mm)

The CN2053R-2A is the industry standard for:

  • Elastic Attaching: Securing elastic bands to underwear, swimwear, and activewear.
  • Intimate Apparel: Lace attachment and structural seams for bras and lingerie.
  • Nautical & Outdoor: Sailmaking repairs, light canvas, and webbing reinforcement.
  • Synthetics & Spandex: Handling high-stretch fabrics without seam failure.
  • Medical Supplies: Sewing orthopedic braces and elastic bandages.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Consew CN2053R-2A 3 Step Zig-Zag Sewing Machine - Goldstartool.com

Product Showcase -Consew CN2093R-DD and Consew CN2053R-2A Comparison -Goldstartool.com

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
