Consew CN2053R-1A High-Speed Zig-Zag & Straight Stitch Industrial Machine

Consew CN2053R-1A High-Speed Zig-Zag & Straight Stitch Industrial Machine

CN2053R-1A

Complete Set: Includes Assembled Table, Heavy-Duty Stand, and Adjustable Servo Motor

$1,369.95
$1,369.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

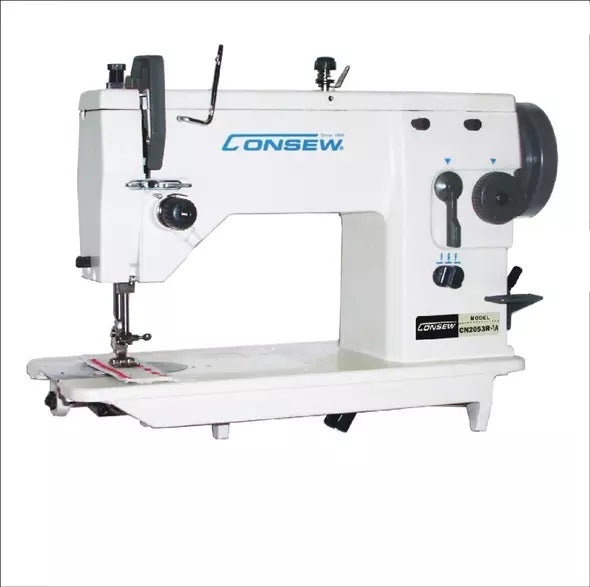

Consew CN2053R-1A

is a versatile, high-speed industrial sewing machine designed for precision zig-zag and straight-stitch lockstitch operations. Optimized for light to medium-weight materials, this model features a robust 9mm maximum zig-zag width, making it an essential tool for professional garment construction, intimate apparel, and decorative work. Built for high-volume environments, it features hardened steel gears and a quiet, energy-efficient Servo motor for total control.

  • Dual Functionality: Seamlessly transitions between a precise 9mm zig-zag and a standard straight lockstitch (Federal Stitch Type 301/304).
  • High-Speed Efficiency: Capable of speeds up to 2,500 SPM, significantly boosting production output compared to standard machines.
  • Precision Control: Features a dial zig-zag regulator and a locking zig-zag width lever to ensure consistency during long production runs.
  • Energy-Saving Servo Motor: Includes a 110V digital Servo motor that is 90% more efficient and virtually silent compared to clutch motors.
  • Specialty Capabilities: Built-in free-hand monogramming lever and needle position adjustment for creative detailing and appliqué.
  • Durable Internals: Engineered with hardened steel metal gears and a horizontal axis transverse rotary hook for long-term mechanical reliability.
  • Max Sewing Speed: 2,500 Stitches Per Minute (SPM)
  • Max Stitch Width: 11/32" (9 mm)
  • Max Stitch Length: 5 S.P.I. (5 mm)
  • Needle System: 135 x 5 (Standard) / DP x 5
  • Clearence Under Foot: 25/64" (10 mm) by Knee / 15/64" (6 mm) by Hand
  • Feeding Mechanism: Drop Feed
  • Work Space: 8 5/16" (211 mm)
  • Bed Size: 7" x 15 11/16" (178 mm x 398.5 mm)
  • Needle Bar Stroke: 1 6/25" (31.5 mm)
  • Stitch Type: 304/301
  • Apparel Construction: Perfect for blouses, shirts, uniforms, overalls, and children's wear.
  • Intimate Apparel: Ideal for attaching lace, elastic bands, and delicate edge stitching on lingerie.
  • Specialty Goods: Professional production of shoes, caps, bags, and light leather articles.
  • Decorative Finishing: High-performance appliqué, butted seaming, and free-hand monogramming.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
