Consew CN1150 Cold Knife Strip Cutter With Table and Servo Motor

Consew CN1150 Cold Knife Strip Cutter With Table and Servo Motor

CN1150_127831951_127831953_127837555

Consew CN1150 Cold Knife Strip Cutter With Table and Servo Motor

$2,049.00
$2,049.00 Market price:
Sale Sold out
Head Only
Add T-Leg With Wheels
Delivery within 3-5 working days
View full details
  • Description
  • Specifications

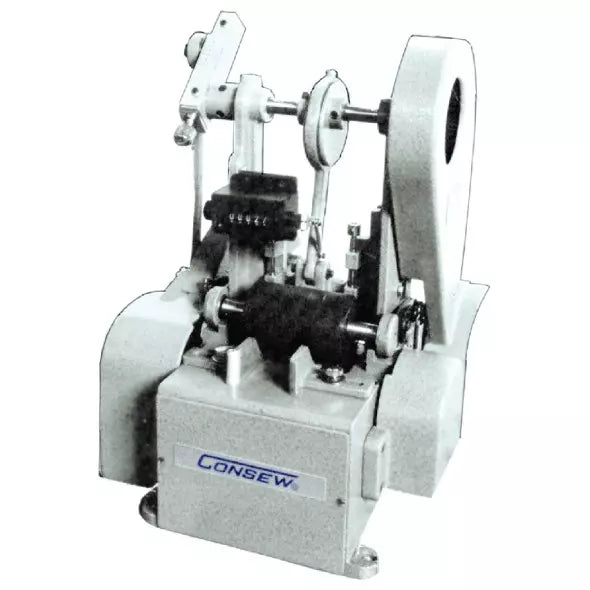

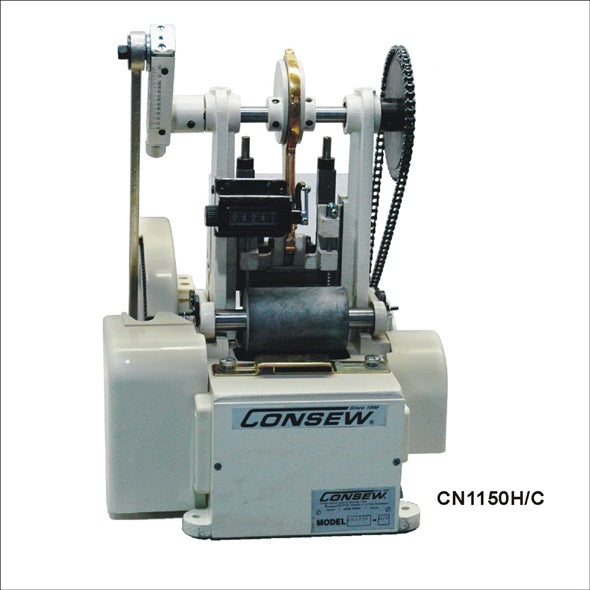

Consew CN1150 Cold Knife Strip Cutter Comes With Table, Legs, Servo Motor and LED Lamp

Cold Knife Strip Cutter, Straight Cuts To Any Length Up To 60" (150cm), Any Width Of Tape Up To 2-1/8" (55mm), Digital Cut Counter With Reset, Transparent Plastic Knife Shield

MACHINE APPLICATIONS:

  • Use for most non-elastic materials such as tapes, ribbons, lace, spaghetti, belts, straps, cords and webbing.
  • Eliminates tedious manual labor, assures accuracy and uniformity of cuts.

MACHINE FEATURES:

  • Shearing Action Of Guillotine Type Knives, Make Straight Cuts To Any Length Up To 60" (150cm).
  • Any Width Of Tape Up To 2-1/8" (55mm).
  • Simplest Screw Adjustment For Changing Length Of Cut.  No Tools Required.
  • Equipped With:
    • Digital Resettable Cut Counter
    • Fixed Ratio Speed Reducer
    • Tape Reel
    • Transparent Plastic Knife Shield
  • Can Be Furnished With Pre-feeding Device For Most Accurate Cuts Of Elastic Materials (optional)
  • Available as a complete assembled unit with heavy duty steel stand, formica-type table top and 110 vac motor.
  • Also available with 220v. 3-phase motor

SPECIFICATIONS:

  • Cutting Size: Up to 60" length; Up to 2 1/8" width
  • Cutting Speed: 30-80 pieces per minute (depending on length and thickness)

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
