Consew CM795-DD Direct-Drive High-Speed 5-Thread Overlock Industrial Sewing Machine

Consew CM795-DD Direct-Drive High-Speed 5-Thread Overlock Industrial Sewing Machine

CM795-DD

Consew CM795-DD 2 Needle 5 Thread High Speed Overlock Machine With Table and Servo Motor

$1,499.95
$1,499.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Specifications

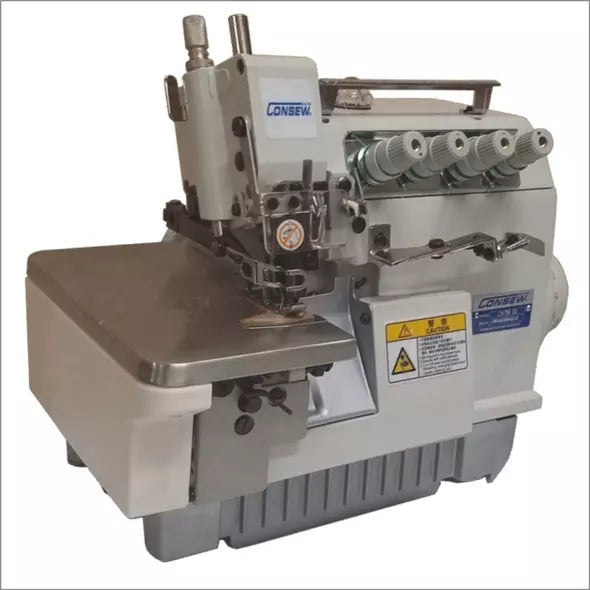

Consew CM795-DD Double Needle 5 Thread High Speed Overlock Machine Comes With Table, Legs, Servo Motor and LED Lamp

AUTOMATIC FUNCTIONS with DIGITAL OPERATING PANEL.
For overlock sewing of a variety of materials (knits, wovens, vinyls).
With:  Fully Automatic Lubrication, Adjustable Differential Feed, Stitch Regulator, Fabric Edge Trimmer, Swing-arm Guide

MACHINE APPLICATIONS:

  • For overlock sewing of a variety of materials (knits, wovens, vinyls). True Safety Stitch - suitable for sewing products such as men's, ladies' and children's wear, especially coats for children and women. Designed for general seaming on woven fabrics. Also suitable for edging vinyl, canvas and upholstery fabrics.

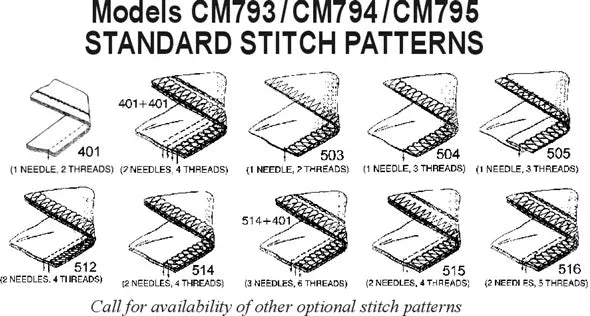

  • In addition, the CM795-DD will do the stitches that the CM793-DD can do.

MACHINE FEATURES:

  • Speed, Max. up to 5500 s.p.m.
  •  Direct Drive: Motor inside machine - No drive belt!

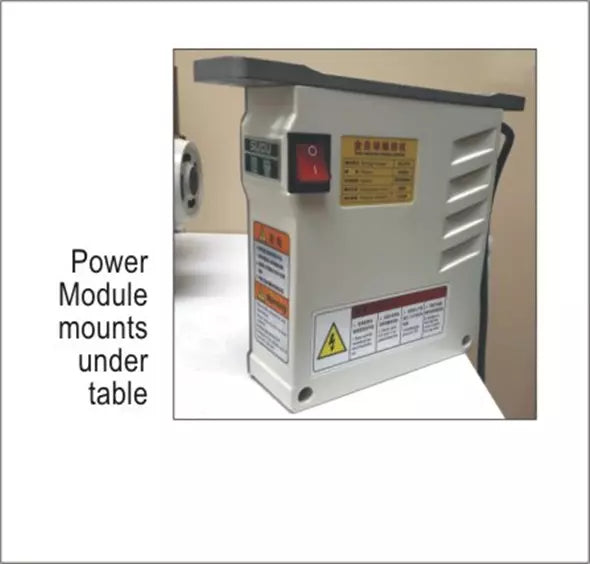

    • Controller module fits underneath table that connects to direct drive motor and has connection to treadle
    • Fully automatic lubrication with visual flow controls
    • External cooling of oil supply
    • Fabric edge trimmer
    • Adjustable Differential feed
    • Stitch regulator
    • Standard type DC-27 needles
    • Reduced noise and vibration when operating at high speeds
    • Swing-arm guide

MACHINE SPECIFICATIONS:

  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Differential
  • Standard or Full Function: Standard Functions
  • Differential Ratio: 1 : 0.7 ~ 1.7
  • Workspace: Standard Workspace
  • Number of Threads: 4/5
  • Speed, Max (S.P.M.): 6500
  • Max Stitch Length: 3.8 mm
  • Presser Foot Lift: 5.5 mm
  • Needle Used: DC x 27 size 14
  • Standard Distance Between Needles: 2 mm standard

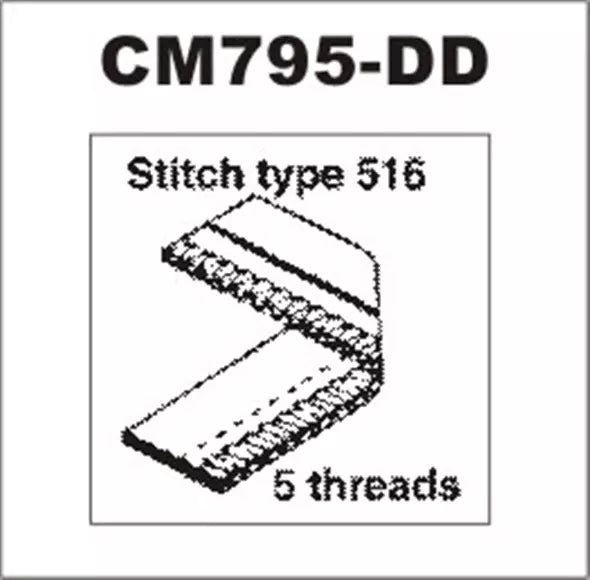

  • Stitch Type: True Safety Stitch

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
