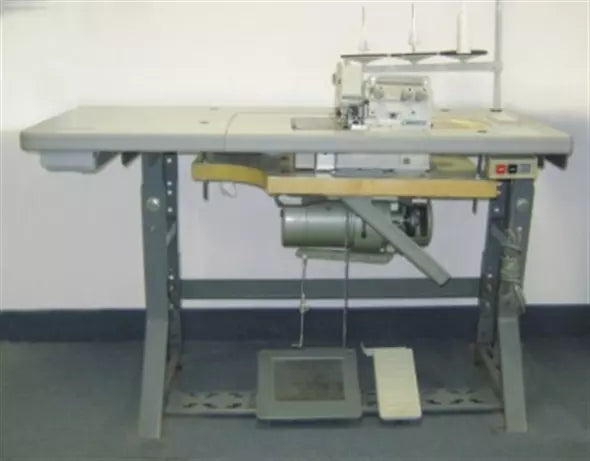

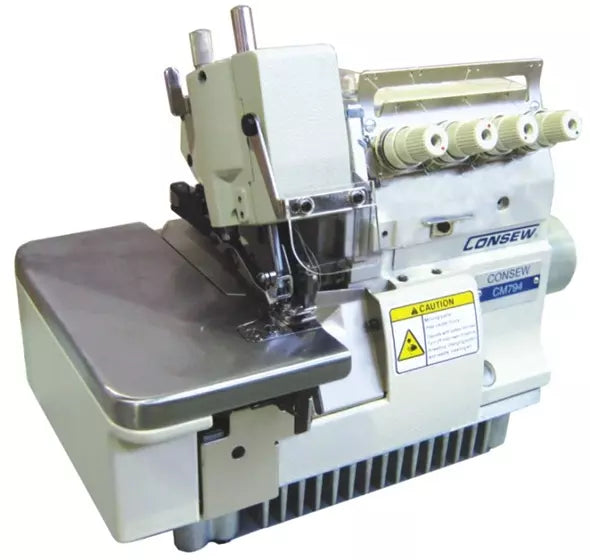

Consew CM794 2 Needle 4 Thread High Speed Overlock Industrial Sewing Machine With Table and Servo Motor

Consew CM794 2 Needle 4 Thread High Speed Overlock Industrial Sewing Machine With Table and Servo Motor

CM794

Consew CM794 2 Needle 4 Thread High Speed Overlock Machine With Table and Servo Motor

$1,499.95
$1,499.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew CM794

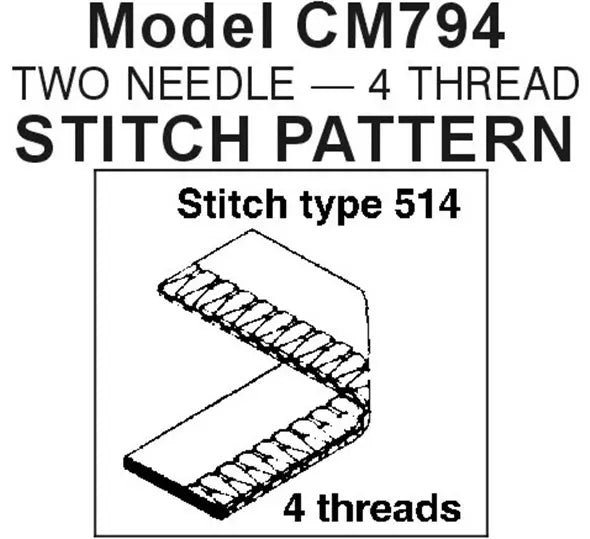

is a professional-grade, high-speed industrial overlock machine designed for high-volume production and precision finishing. This 4-thread serger is engineered to sew a "mock safety" stitch, providing a durable and flexible seam that is essential for modern garment construction. Equipped with a powerful, quiet Servo Motor, this machine offers adjustable speed control and energy savings of up to 70% compared to traditional clutch motors.

Consew CM794

is a high-speed industrial serger built for reliability and speed. It combines a 4-thread overlock system with a modern servo motor to provide professional, factory-quality seams on a wide variety of fabrics. It is an essential tool for any professional sewing environment requiring speed, durability, and a clean finish.

  • Ultra-High-Speed Performance: Capable of speeds up to 7,000 stitches per minute (SPM) for maximum production output.
  • Quiet Servo Motor: The included electronic servo motor allows for precise speed control and near-silent operation when the machine is idle.
  • Differential Feed Adjustment: Features a micro-adjustment dial to prevent puckering on thin materials or stretching on elastic knits.
  • Fully Automatic Lubrication: A self-contained oiling system with a replaceable filter ensures internal parts stay lubricated and cool during long-duration use.
  • Adjustable Stitch Length: Easily change stitch length via a push-button regulator and handwheel.
  • Heavy-Duty Build: Designed for 24/7 industrial use with a cast-iron frame and heat-treated internal components.
  • Number of Needles : 2
  • Number of Threads : 4
  • Max Sewing Speed : 7,000 Stitches Per Minute (SPM)
  • Stitch Length : 0.5 mm – 3.8 mm
  • Overedge Width : 4.0 mm
  • Needle Gauge : 2.0 mm
  • Differential Ratio : 1:0.7 – 1:2.0
  • Needle Type : DCx27 (B27)
  • Presser Foot Lift : 5.5 mm
  • Motor : 550W High-Torque Servo Motor (110V)
  • Apparel Manufacturing: Ideal for seaming T-shirts, polo shirts, and knitwear.
  • Activewear & Swimwear: Perfect for creating high-stretch, durable "mock-safety" seams in spandex and nylon.
  • Lingerie & Intimate Apparel: Delicate enough for tricot, lace, and light silks.
  • Home Textiles: Finishing edges for pillowcases, linens, and curtains.
  • Material Range: Suitable for light to medium-weight materials including knits, wovens, and light denim.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
