Consew CM-5000 Power Swatch Cutter With Table and Servo Motor

Consew CM-5000 Power Swatch Cutter With Table and Servo Motor

CM-5000

Consew CM-5000 Power Swatch Cutter With Table and Servo Motor
Delivery within 3-5 working days
View full details
  • Description
  • Specifications

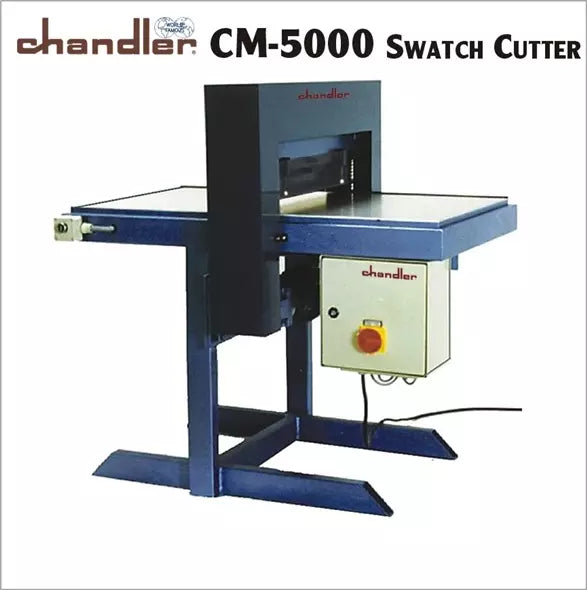

Consew CM-5000 Power Swatch Cutter Comes With Table, Legs, Servo Motor and LED Lamp

The CM-5000 is a high volume, power swatch cutter designed to cut all types of fabrics.

MACHINE FEATURES:

  • Easier, faster operation compared  to manual Swatch Cutters
  • Low current consumption
  • Quiet operation
  • 110 vac (220 vac available)
  • Baked blue enamel paint
  • Comes standard with pink blade  (extra #1, #7 pink & straight blades optionally available)
  • Capable of cutting paper, plastic materials, rubber, leather.  If a scissor can cut it, you can cut a stack with
       the CM-5000 and CM-6000.
  • Optional pressing adapter available to use die-cutting dies. (Custom forged steel diecutting dies can be special ordered)

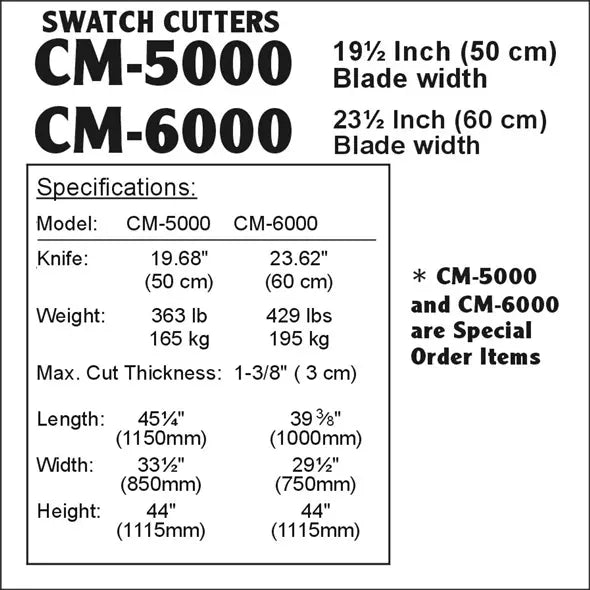

  • CM-5000 has 19½ Inch (50 cm) blade width
  • CM-6000 has 23½ Inch (60 cm) blade width

SAFETY FEATURES:

Two Handed Switch operation keeps fingers safe from the blade.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.


U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
