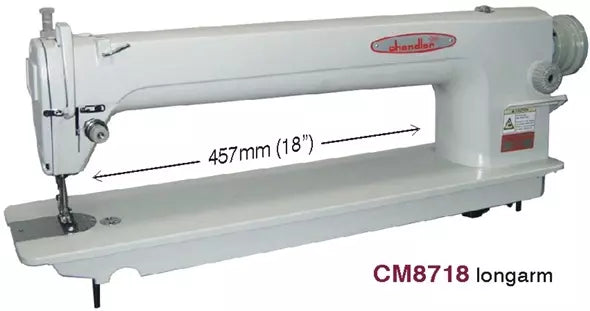

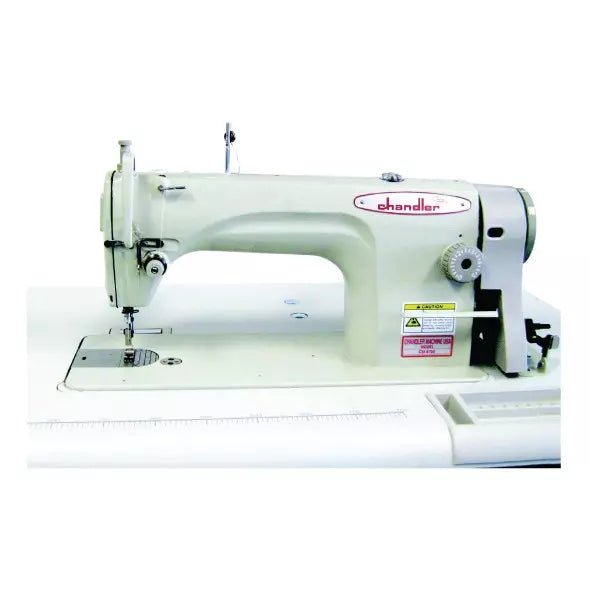

Consew Chandler CM8700 & CM8718 High-Speed Lockstitch Industrial Sewing Machine

Consew Chandler CM8700 & CM8718 High-Speed Lockstitch Industrial Sewing Machine

CM87

Complete Industrial Set: Includes Fully Assembled Table, K-Leg Stand, and 550W Servo Motor

Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew Chandler CM8700

series represents the gold standard for high-speed, single-needle lock stitching. Designed for versatility and extreme durability, these machines are the foundation of any professional sewing setup. Whether you choose the CM8700 for high-speed garment production or the CM8718 for its larger hook capacity, you are getting a precision-engineered "workhorse." Paired with a quiet, energy-efficient Servo Motor, this unit offers the perfect balance of raw power and refined speed control.

Consew Chandler CM8700/CM8718

is the ultimate industrial straight-stitch machine. It is a dedicated high-speed tool built for professional garment construction, alterations, and production. It combines traditional mechanical reliability with a modern, energy-efficient motor system to deliver perfect seams every time.

  • Ultra-High Speed: Engineered to reach up to 5,500 SPM, significantly increasing production output compared to semi-industrial machines.
  • Low-Vibration Engineering: Balanced head design ensures smooth operation even at maximum speeds, reducing operator fatigue.
  • Energy-Efficient Servo Motor: The included 550W motor provides 70% energy savings, adjustable speed limits, and near-silent operation when the machine is not in use.
  • Fully Automatic Lubrication: A self-contained oiling system ensures all internal components are protected, extending the machine's life for decades.
  • Versatile Material Range: Handles a wide spectrum of fabrics, from lightweight synthetics and cottons to medium-heavy denim and workwear.
  • Flexible Stitch Regulation: Easily adjustable stitch length dial and a responsive reverse lever for back-tacking and reinforcing seams.
  • Stitch Type: Single Needle, Straight Stitch (Lockstitch 301)
  • Max Sewing Speed: 5,500 Stitches Per Minute (SPM)
  • Max Stitch Length: 5.0 mm
  • Needle System: DB x 1 (16x231)
  • Presser Foot Lift: 5.5 mm (Hand) / 13.0 mm (Knee)
  • Hook Type: Standard (CM8700) or Large Hook (CM8718)
  • Lubrication: Full Automatic (Centrifugal Pump)
  • Motor: 550W Electronic Servo Motor (110V)
  • Tabletop: 20" x 48" Heavy-Duty Industrial Laminate
  • Apparel Construction: The go-to machine for shirts, dresses, trousers, and uniforms.
  • Tailoring & Alterations: Ideal for high-volume repair shops and boutique studios.
  • Drapery & Linens: Perfect for long, straight seams on curtains, bedding, and table linens.
  • Light-to-Medium Upholstery: Suitable for furniture slips, cushion covers, and light canvas.
  • Workwear: Durable enough for scrubs, aprons, and denim apparel.

DOWNLOADS

CM8700/CM8718 Spec Sheet (PDF)

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
