Consew C20NS Two-Thread Double-Needle Bag Closing Machine with Oil Lubrication System

Consew C20NS Two-Thread Double-Needle Bag Closing Machine with Oil Lubrication System

C20NS

C20NS utilizes a two-thread (lockstitch)system, creating a stronger, more durable seam that is preferred for bags requiring higher security or heavier materials.
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

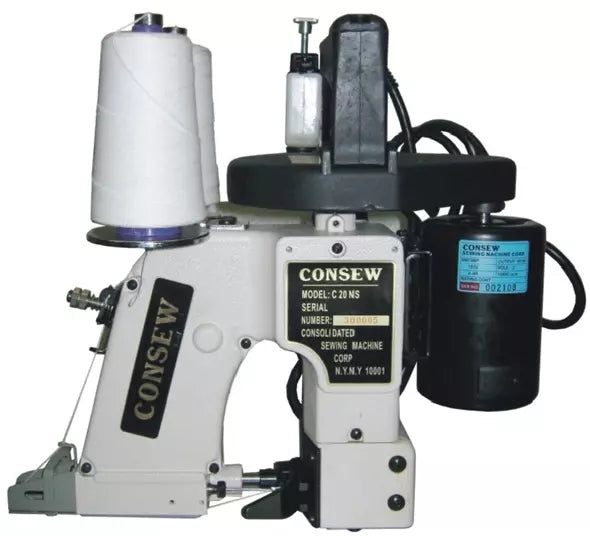

Consew C20NS

is a high-performance, heavy-duty industrial bag closer designed for high-security sealing applications. Featuring a "Fishbein" style architecture, this machine utilizes two needles and two threads to produce a robust double-locked chainstitch. This dual-thread system ensures that the seam remains secure even if one thread is snagged or cut, making it ideal for the international shipping of fine powders or heavy grains. Equipped with a built-in oil lubrication pump and a totally enclosed motor, the C20NS is built to perform in the dustiest and most demanding packaging environments.

The C20NS is designed for industries requiring extra-secure packaging:

  • Fine Powders: Flour, sugar, spices, and chemical powders where leak-prevention is critical.
  • Heavy Agriculture: Bulk seeds, animal feed, and fertilizers.
  • Industrial Minerals: Sand, gravel, charcoal, and coal.
  • Waterproofed Materials: Closing bags made of vinyl, heavy plastic, and treated canvas.
  • Multi-Wall Paper Bags: Sealing 3-ply and 4-ply heavy-duty shipping sacks.

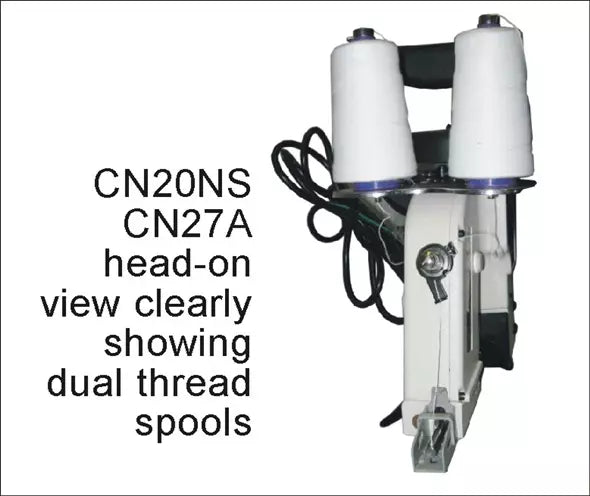

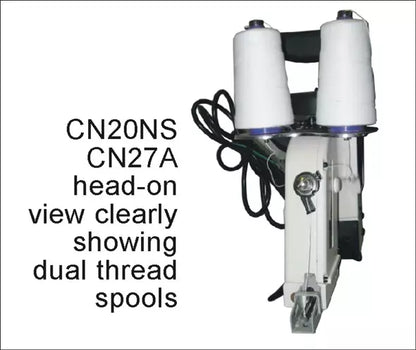

  • Two-Needle, Two-Thread System: Provides a double-locked chainstitch for superior seam strength and product security, preventing accidental leaks during transit.
  • Integrated Oil Lubrication Pump: A simple push-button system directs oil to all main moving parts, ensuring smooth operation and significantly reducing internal wear and tear.
  • Totally Enclosed & Sealed Motor: The dust-resistant motor housing prevents fine particles from agricultural or chemical products from entering the motor, ensuring long-term electrical reliability.
  • Aggressive Drop Feed Mechanism: Specifically designed to start sewing thick or multi-layered materials instantly without needing to manually raise the presser foot.
  • Automatic Thread Cutting: Protected cutting blades automatically sever both threads after the bag is closed, allowing for a seamless transition between units.
  • Insulated Shock-Resistant Handle: Features a high-strength plastic handle for operator safety and reduced vibration during high-volume shifts.
  • Versatile Mounting: Perfectly balanced for handheld portable use, but can be easily suspended from a spring balancer for stationary production line integration.
  • Stitch Type : Two-Thread, Double-Locked Chainstitch (Type 401)
  • Max Sewing Speed : 1,500 – 1,800 Stitches Per Minute (SPM)
  • Max Stitch Length : 9/32" (7.2 mm)
  • Needle System : D-5 (Standard Bag Closer Needles)
  • Feeding Mechanism : Heavy-Duty Drop Feed
  • Motor Type : Totally Enclosed 110V (220V Options Available)
  • Looper Type : A-300
  • Weight : 12 lbs (5.4 kg)

DOWNLOADS

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
