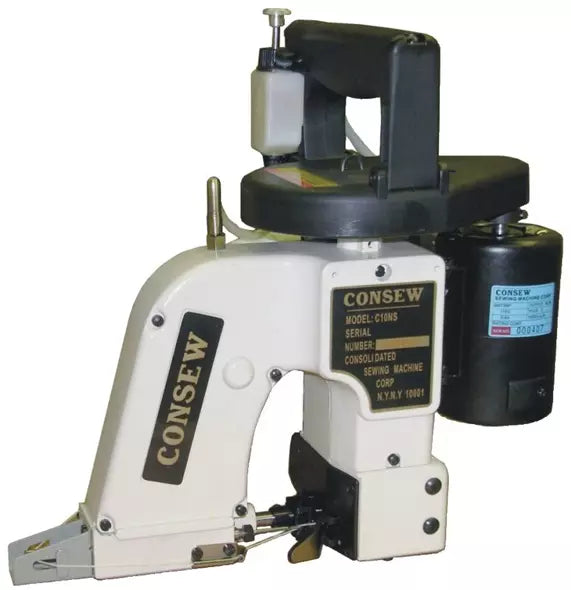

Consew C10NS "Tuffy" Heavy-Duty Portable Bag Closer – Single Thread Chainstitch

Consew C10NS "Tuffy" Heavy-Duty Portable Bag Closer – Single Thread Chainstitch

C10NS

Heavy Duty, Single Thread, Chainstitch, Bag Closing Machine with Oil Lubrication System, Totally Enclosed/ Sealed Motor, Trigger-type Switch, Protected Cutting Blades

$625.99
$625.99 Market price:
Sale Sold out
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew C10NS

famously known as the "Tuffy," is a high-speed, portable industrial bag closer designed for continuous use in demanding environments. Engineered for durability, it features a totally enclosed, dust-proof motor that protects internal components from the fine particles found in agricultural and chemical facilities. Whether you are sealing multi-wall paper, burlap, jute, or woven poly bags, the C10NS delivers a secure, professional single-thread chainstitch that is both strong and easy for the end-user to open.

The C10NS is the preferred workhorse for sealing:

  • Agriculture: Bags of animal feed, grain, seeds, and fertilizer.
  • Food Industry: Sacks of flour, sugar, salt, coffee beans, and rice.
  • Chemicals & Minerals: Handling dusty powders, charcoal, and minerals.
  • Construction: Heavy-duty sandbags and erosion control materials.
  • Logistics: Closing thick multi-wall paper, burlap, jute, and woven poly bags.
  • Enclosed Dust-Proof Motor: Specifically designed to operate in dusty environments (flour mills, grain elevators, chemical plants) without risk of motor failure.
  • High-Speed Operation: Capable of closing a standard bag in seconds with a top speed of 1,900 RPM.
  • Aggressive Feeding System: Features an extra-heavy feed dog that pulls through thick or slippery materials without the need to manually adjust the presser foot.
  • Built-In Lubrication: An integrated manual pump oiling system ensures all vital moving parts remain lubricated for long-term reliability.
  • Automatic Thread Cutter: Protected blades automatically sever the thread once the bag is closed, increasing production speed.
  • Shock-Resistant Safety Handle: The insulated plastic handle reduces vibration and provides electrical safety for the operator during long shifts.
  • Robust "Fishbein" Style Design: Built with a reinforced metal frame and hardened steel cams for industrial longevity compared to lightweight consumer models.
  • Number of Needles: 1 (Single)
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Feeding Mechanism: Drop Feed
  • Stitch Type: 101
  • Speed, Max (S.P.M.): 1500
  • Max Stitch Length: 9/32" (7.2mm)
  • Needle Used: D-5
  • Looper: A-300
  • Machine Weight: 12lbs. (5.4kg)
  • Motor: 110 VAC

DOWNLOADS

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
