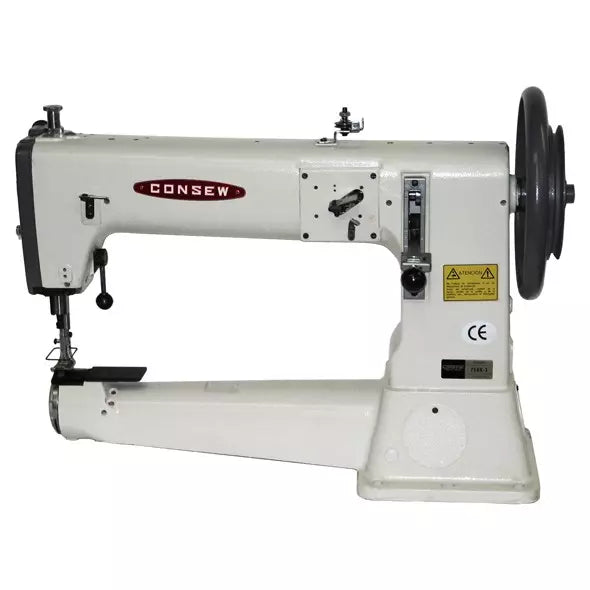

Consew 756R Extra Heavy Duty Single Needle Long Cylinder Arm Lockstitch Industrial Sewing Machine

Consew 756R Extra Heavy Duty Single Needle Long Cylinder Arm Lockstitch Industrial Sewing Machine

756R

Complete Unit: Includes Assembled Table, Heavy-Duty Stand, and High-Torque Servo Motor

$6,899.99
$6,899.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 756R

is a specialized, extra-heavy-duty machine designed for the most demanding sewing tasks. Featuring a massive 16-inch long cylinder arm, it provides the clearance necessary for large, tubular, or uniquely shaped items like golf bags and saddles. Its Triple Feed (Compound Feed) mechanism ensures that even the thickest layers of leather or heavy webbing are fed evenly without slippage. If your project requires heavy-gauge thread and the power to pierce through multiple layers of tough material, the 756R is the industrial standard.

Difference Note: 756R vs. 756R-3

The 756R is the core model of this series. While often used interchangeably in general listings, the "R" designation signifies its specialized heavy-duty reverse and compound feed capabilities. It remains the top choice for craftspeople who prioritize torque and a large workspace over high sewing speed.

  • Stitch Type: 301 Lockstitch
  • Max Sewing Speed: 800 SPM (Stitches Per Minute)
  • Max Stitch Length: 2.5 s.p.i. (10mm)
  • Cylinder Arm Length: 16" (400mm)
  • Presser Foot Lift (By Hand): 1/2" (13mm)
  • Presser Foot Lift (By Pedal): 25/32" (20mm)
  • Needle System: 7 x 3 (DYx3) / #24 - #27
  • Thread Size: Up to #277 (Bonded Nylon/Polyester)
  • Feed Type: Triple Feed (Compound Feed / Walking Foot)
  • Hook Type: Large Oscillating Shuttle Hook
  • Stitch Type: 301 Lockstitch
  • Max Sewing Speed: 800 SPM (Stitches Per Minute)
  • Max Stitch Length: 2.5 s.p.i. (10mm)
  • Cylinder Arm Length: 16" (400mm)
  • Presser Foot Lift (By Hand): 1/2" (13mm)
  • Presser Foot Lift (By Pedal): 25/32" (20mm)
  • Needle System: 7 x 3 (DYx3) / #24 - #27
  • Thread Size: Up to #277 (Bonded Nylon/Polyester)
  • Feed Type: Triple Feed (Compound Feed / Walking Foot)
  • Hook Type: Large Oscillating Shuttle Hook

The 756R is built specifically for "extreme" sewing applications:

  • Saddlery & Tack: Western saddles, harnesses, and heavy bridles.
  • Sports Gear: Golf bags, heavy-duty gear bags, and protective pads.
  • Upholstery: Heavy-duty marine vinyl and automotive interior panels.
  • Technical Textiles: Parachutes, cargo slings, and industrial safety belts.
  • Footwear: Heavy-duty boots and specialized leather footwear.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
