Complete Unit: Includes Assembled Table, Heavy-Duty Stand, and High-Torque Servo Motor

Complete Unit: Includes Assembled Table, Heavy-Duty Stand, and High-Torque Servo Motor

756R-3

Complete Unit: Includes Assembled Table, Heavy-Duty Stand, and High-Torque Servo Motor

$5,499.99
$5,499.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

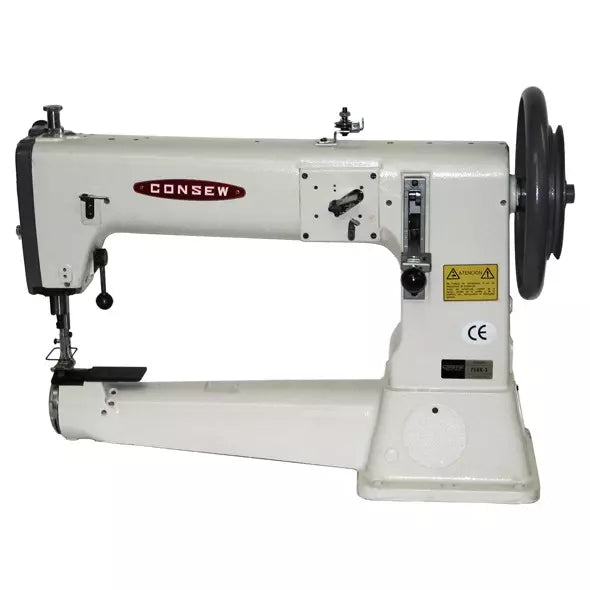

Consew 756R-3

is a powerhouse engineered for the extreme. Featuring an extra-long 16" cylinder arm and a compound feed (triple feed) mechanism, this machine is built to handle the heaviest materials—from thick saddle leather to heavy-duty synthetic webbing. With its massive high-clearance presser foot lift and large capacity shuttle hook, the 756R-3 provides the reach and the strength needed for large, bulky, or tubular items that require uncompromising stitch security.

  • 16-Inch Long Cylinder Arm: Provides a massive workspace for large bags, golf bags, and bulky upholstery projects.
  • Compound Feed (Triple Feed): Synchronized needle, feed dog, and walking foot movement ensures heavy layers don't shift or bunch.
  • Extra-Large Shuttle Hook: Uses a large capacity bobbin to reduce downtime when using thick, industrial-grade threads.
  • High Presser Foot Lift: A 20mm (approx. 13/16") lift allows you to easily fit extremely thick materials under the foot.
  • Reverse Stitching: Equipped with a dedicated reverse lever for reinforcing seams in heavy-duty applications.
  • High-Torque Servo Motor: The included 110V servo motor provides the necessary "punching power" to pierce thick leather while maintaining silent operation and variable speed control.
  • Stitch Type: 301 Lockstitch
  • Max Sewing Speed: 800 SPM (Stitches Per Minute)
  • Max Stitch Length: 2.5 s.p.i. (10mm)
  • Cylinder Arm Length: 16" (400mm)
  • Presser Foot Lift (By Hand): 13mm
  • Presser Foot Lift (By Pedal): 20mm
  • Needle System: 7 x 3 (DYx3)
  • Thread Size: Up to #277 (or thicker depending on application)
  • Feed Type: Compound Feed / Walking Foot
  • Hook Type: Large Capacity Oscillating Shuttle Hook

The 756R-3 is the "heavy hitter" for products that require extra reach and extra strength:

  • Saddlery & Harnesses: Heavy leather tack, saddles, and bridles.
  • Heavy Bags: Golf bags, heavy-duty duffel bags, and tool rolls.
  • Upholstery: Thick automotive interior panels and furniture curves.
  • Safety Equipment: Parachute harnesses, cargo slings, and heavy webbing.
  • Boating: Sails, boat covers, and thick vinyl enclosures.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
