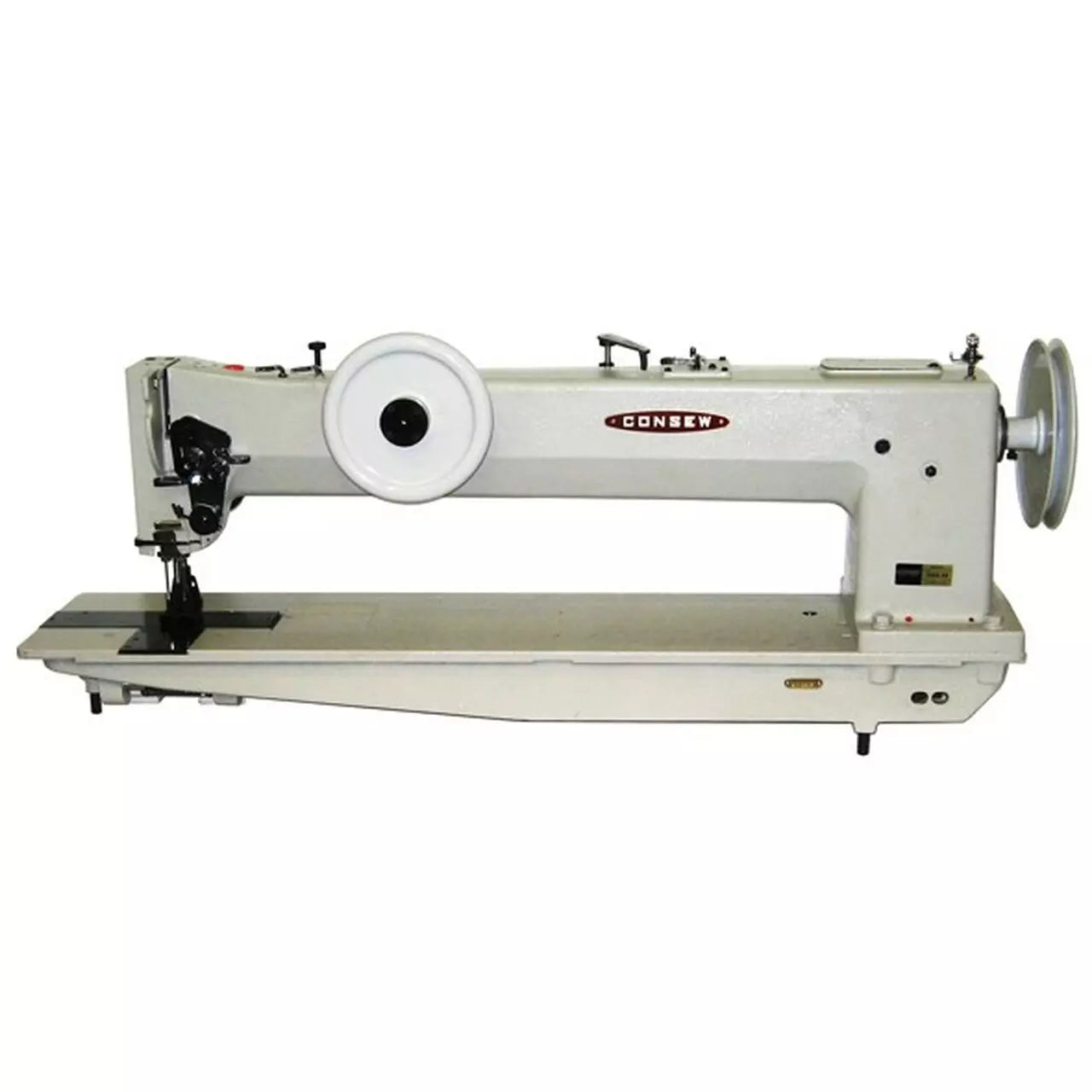

Consew 744R30 Extra Heavy-Duty Long-Arm Industrial Sewing Machine With Table and Servo Motor

Consew 744R30 Extra Heavy-Duty Long-Arm Industrial Sewing Machine With Table and Servo Motor

744R30

30" Workspace, Single-Needle Unison-Feed (Walking Foot) with Table and Servo Motor

$11,999.95
$11,999.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 744R30

is designed for the largest and toughest industrial sewing tasks. Featuring a 30-inch (762mm) horizontal clearance, it allows operators to easily maneuver giant fabric panels, such as truck tarps, sails, and pool covers, without the struggle of material bunching. Its Unison-Feed (Triple Feed) mechanism—synchronizing the needle, feed dog, and walking foot—provides unrelenting traction, ensuring that even the thickest layers of webbing or leather move through the machine with perfect stitch consistency.

  • 30-Inch Extra-Long Arm: A massive 762mm workspace to the right of the needle provides the necessary room to handle rolled or folded oversized materials.
  • Unison-Feed (Triple Feed): The synchronized action of the feed dog, needle, and walking foot prevents material shifting, making it ideal for slippery or multi-layered heavy-weight fabrics.
  • Extra-Large Shuttle Hook: Equipped with a high-capacity shuttle hook and "Jumbo" bobbins, specifically engineered to handle thick industrial threads (up to #0) and reduce the need for frequent bobbin changes.
  • Extreme Needle Penetration: The mechanical timing is optimized for "extra-heavy" applications, easily piercing through thick leather, multi-layered webbing, and heavy canvas.
  • High Presser Foot Lift: A massive 20mm lift (via knee lifter) allows for the effortless insertion of extra-thick assemblies like foam-backed upholstery or heavy cargo slings.
  • Adjustable Walking Foot Stroke: Allows the user to adjust the vertical stroke of the feet to "climb" over thick cross-seams and varying material heights without missing a stitch.
  • Feeding System : Unison Feed (Walking Foot + Needle Feed + Drop Feed)
  • Max. Sewing Speed : 1,200 stitches per minute
  • Workspace (Length) : 30" (762 mm)
  • Max. Stitch Length : 10 mm (2.5 stitches per inch)
  • Needle Bar Stroke : 50.8 mm
  • Presser Foot Lift : 13 mm (Hand) / 20 mm (Knee)
  • Needle System : 7x3 (DYx3) or 794
  • Hook Type : Extra-Large Shuttle Hook
  • Thread Size Range : #138 up to #0 (Bonded Nylon/Polyester)
  • Outdoor & Marine: Truck covers, boat tarps, awnings, and large-scale tents.
  • Industrial Safety: Heavy-duty cargo slings, safety harnesses, and tie-down straps.
  • Heavy Upholstery: Giant leather sofas, theater curtains, and commercial gym mats.
  • Technical Textiles: Aircraft covers, pool liners, and geotextile membranes.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Showcase - Consew 744R30 Longarm Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
