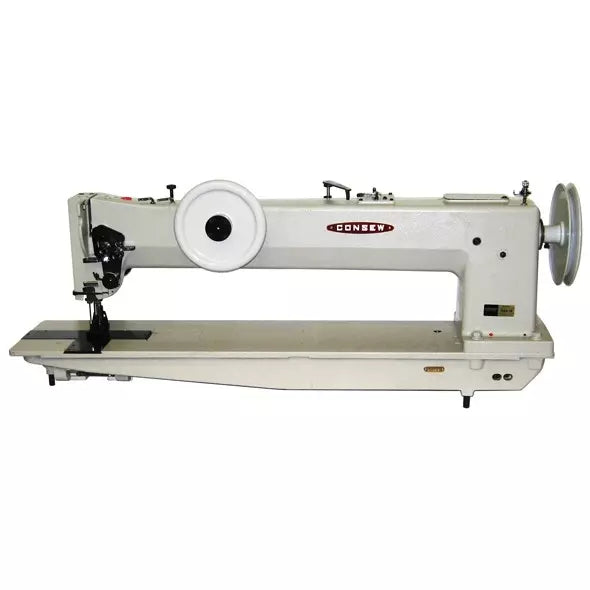

Consew 744R-30P Long-Arm Extra Heavy-Duty Sewing Machine

Consew 744R-30P Long-Arm Extra Heavy-Duty Sewing Machine

744R-30P

30" Workspace, Walking Foot (Triple Feed) with Integrated Power Puller

$12,999.95
$12,999.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 744R-30P

is a specialized industrial powerhouse designed for the largest and heaviest sewing projects. With a massive 30-inch (760mm) long-arm clearance, it provides the vital room needed to handle bulky items like boat covers, tents, and truck tarps. What sets this model apart is the Integrated Rear Power Puller, which works in tandem with the triple-feed mechanism to ensure heavy, oversized fabric panels move through the machine at a perfectly synchronized rate without slipping or bunching.

  • Massive 30" Long-Arm Clearance: Provides 760mm of space between the needle and the arm, allowing for the easy maneuvering of large fabric rolls and heavy upholstery panels.
  • Integrated Rear Power Puller: A specialized feeding system that assists in pulling long, heavy, or multi-layered materials through the machine, ensuring consistent stitch length and preventing material drag.
  • Compound Feed (Triple Feed): Synchronized movement of the needle feed, drop feed, and walking foot guarantees that even the most difficult materials (vinyl, canvas, leather) are fed without shifting.
  • Extra-Large Vertical Axis Hook: Features a high-capacity "Jumbo" bobbin, allowing for longer sewing cycles with thick industrial threads and reducing downtime for bobbin changes.
  • High-Climbing Walking Foot: An adjustable dial on top of the machine allows the walking foot to clear thick overlapping seams and cross-stitches without needle deflection.
  • Built-In Safety Clutch: Automatically disengages the hook to prevent damage to the timing and gears in the event of a thread jam or needle strike.
  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Walking Foot
  • Workspace: Long Arm
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 1500
  • Clearance Under Presser Foot:  25/32" (20mm)
  • Stitch Length:  25/64" (10mm)
  • Work Space:  20" (508mm)
  • Needle: 7x3 (DYx3)
  • Bobbin: 70141
  • Bed Size: 33 5/16" x 9 1/16" (846mm x 230mm)
  • Stitch Type: 301
  • Hook: 70140
  • Marine & Logistics: Boat covers, sails, truck tarpaulins, and cargo nets.
  • Outdoor Gear: Large tents, awnings, field covers, and jumping mats.
  • Automotive/Aviation: Large-scale seat panels for buses, trains, and planes.
  • Heavy Leather: Saddlery, harness work, and thick leather straps.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Manufacturer Showcase - Consew 744R-30P Longarm Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
