Consew 7360R-7DD-SS High-Speed Direct-Drive Lockstitch Machine Sewing Machine With Table and Servo Motor

Consew 7360R-7DD-SS High-Speed Direct-Drive Lockstitch Machine Sewing Machine With Table and Servo Motor

7360R-7DD-SS

Stainless Steel Bed | Automatic Thread Trimmer | Drop Feed

$1,149.95
$1,149.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

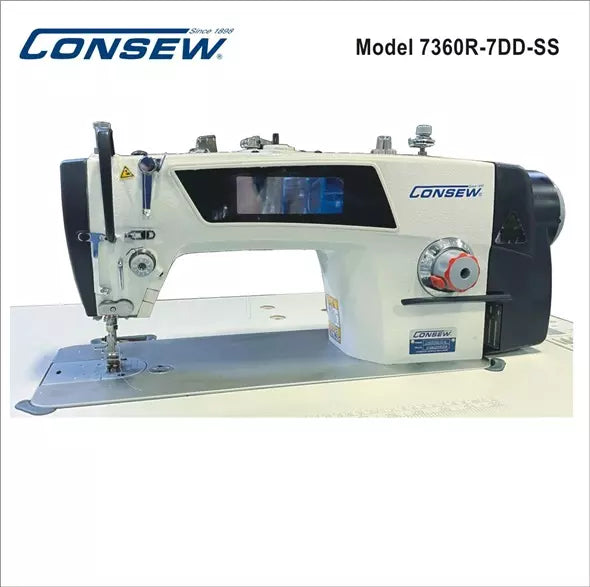

Consew 7360R-7DD-SS

is an advanced, high-speed single-needle lockstitch machine engineered for precision and durability. This specialized "SS" model features a Stainless Steel Bed, making it ideal for sewing sensitive materials, synthetics, or items in environments requiring high hygiene standards. With a built-in Direct-Drive Servo Motor and a full suite of automatic functions—including thread trimming and backtacking—this machine offers a sleek, oil-leak-resistant design for modern production lines

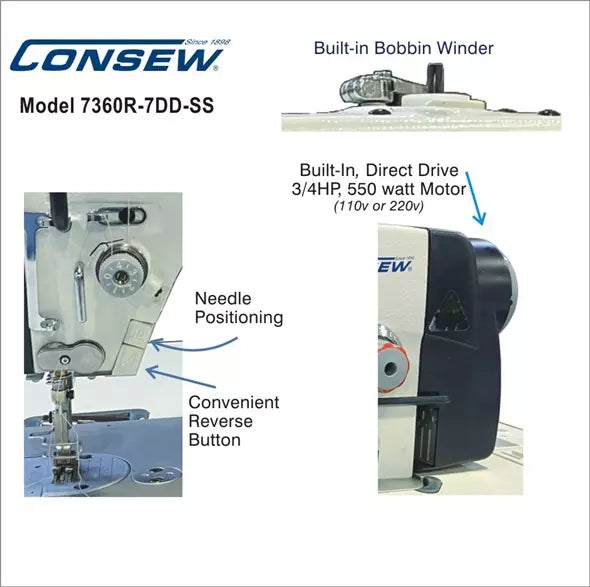

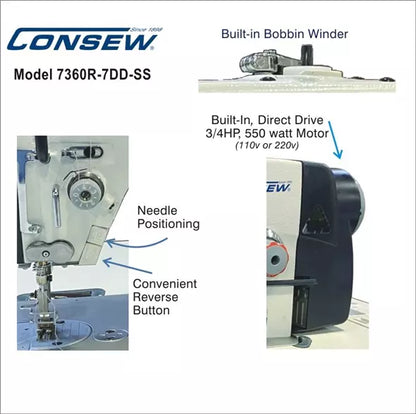

  • Stainless Steel Work Surface: The premium SS bed prevents rust, reduces friction for synthetic fabrics, and ensures a clean sewing environment.
  • Integrated Direct-Drive Motor: The motor is mounted directly to the shaft, eliminating belts to provide 20% more power, reduced vibration, and whisper-quiet operation.
  • Automated Productivity Suite: Equipped with an automatic thread trimmer (under-trimmer), auto-backtack, and an electronic foot lifter to maximize output.
  • Large Workspace: Features an ample under-arm area for easier maneuvering of large garments or home textile projects.
  • Digital Control Panel: Easily program stitch counts, backtacking patterns, and speed limits via the user-friendly interface.
  • Semi-Dry Lubrication: Advanced oiling system keeps the needle bar area clean, significantly reducing the risk of oil spots on your finished products.
  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Drop Feed
  • Workspace: Standard Workspace
  • Standard or Full Function: Automatic Functions
  • Speed, Max (S.P.M.): 5000
  • Motor Type: Direct Drive
  • Clearance Under Presser Foot: 1/4" (6mm) , 1/4" (6mm)
  • Stitch Length: 4 s.p.i. (6.2mm)
  • Work Space: 10" (258mm)
  • Needle: DBX1 (#9~#18)
  • Bed Size: 7" x 18 7/8" (177mm x 477mm)
  • Stitch Type: 301 , 301
  • Needle Bar Stroke: 1 1/4" (31.8mm) , 1 1/4" (31.8mm)
  • Medical & Cleanroom Apparel: The stainless steel bed is perfect for environments requiring sterile or highly clean handling.
  • Synthetics & Specialized Fabrics: Ideal for vinyl, microfiber, and technical textiles where traditional cast-iron beds might cause friction or snagging.
  • Light-to-Medium Apparel: Perfect for shirts, dresses, uniforms, and suits.
  • Drapery & Home Decor: The high speed and smooth bed surface make it excellent for long runs on curtains and linens.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
