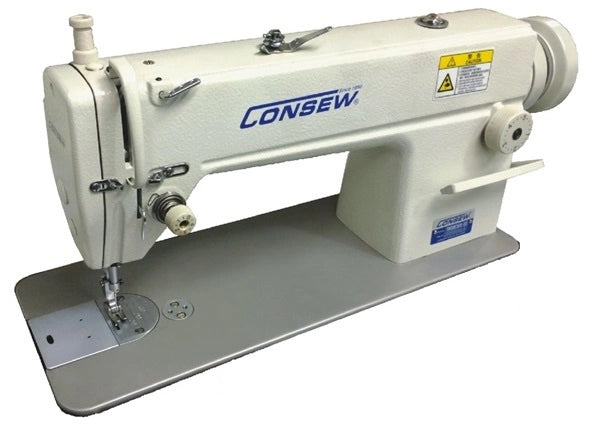

Consew 7360R-2SS Ultra High-Speed Lockstitch Machine

Consew 7360R-2SS Ultra High-Speed Lockstitch Machine

7360R-2SS

Stainless Steel Bed | 5,500 SPM | Complete Unit with Unassembled Table

$1,049.99
$1,049.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 7360R-2SS

is an ultra-high-speed industrial lockstitch machine designed for the modern garment factory and high-end design studio. While it shares the incredible speed and reliability of the 7360R series, the "SS" edition features a specialized Stainless Steel Bed. This upgrade ensures a smoother surface for fabric glide and prevents any risk of oxidation or staining, which is critical when working with white garments, delicate silks, or in high-humidity environments.

Capable of speeds up to 5,500 stitches per minute, this machine is a true production workhorse. Paired with a quiet, energy-efficient Servo Motor, it provides the operator with precise control and a significantly more comfortable working environment.

  • Stainless Steel Bed Plate: Provides a ultra-smooth, rust-proof surface that protects light-colored and delicate fabrics from snagging or staining.
  • Ultra-High-Speed Performance: Reaches up to 5,500 SPM, maximizing output for straight-stitch garment assembly.
  • Japanese Components: Utilizes high-quality internal parts (including the hook) for superior stitch consistency and mechanical longevity.
  • Quiet Servo Motor: The included 110V electronic servo motor allows you to dial in your maximum speed and operates silently when not in use.
  • Full Automatic Lubrication: A built-in centrifugal pump automatically oils all vital internal components, ensuring the machine stays cool during high-speed operation.
  • Low Vibration Design: Engineered to stay stable at top speeds, reducing operator fatigue and improving seam accuracy.
  • Tactile Reverse Lever: Large, easy-access lever for quick and secure back-tacking.
  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Drop Feed
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 5500
  • Clearance Under Presser Foot: 1/4" (6mm)
  • Stitch Length: 5 s.p.i. (5mm)
  • Work Space: 10" (258mm)
  • Needle: 16 x 257 , 16 x 257
  • Bobbin: Metal 22T4-017, Pre-wound L ,
  • Bed Size: 7" x 18 7/8" (177mm x 477mm)
  • Stitch: Type 301
  • Weight: 153 lbs (69.4kg)
  • Needle Bar Stroke: 1 1/4" (31.8mm)
  • Hook: 22T4-011D

MACHINE APPLICATIONS:

  • For sewing light to heavy-weight materials, including cotton, knits, polyester, nylon, sheer fabrics, denim, and lightweight leather
  • Suitable for stitching such products as blouses, shirts, men's, ladies and children's apparel, uniforms, overalls, lingerie, etc.
  • Heavyweight fabrics such as jeans can be sewn by changing the needle plate, feed dog, foot, stitch regulator, hook and needle ba

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
