Consew 7360R-1 Ultra High-Speed Single Needle Lockstitch Machine

Consew 7360R-1 Ultra High-Speed Single Needle Lockstitch Machine

7360R-1

Precision Japanese Components | 5,500 SPM | Complete Unit with Servo Motor

$799.99
$799.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

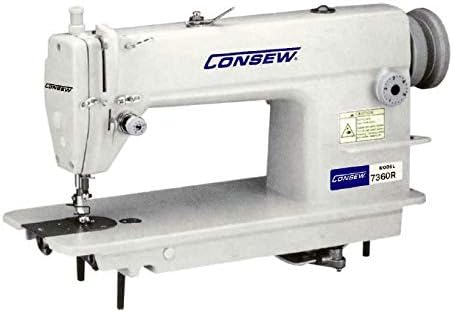

Consew 7360R-1

is an ultra-high-speed industrial lockstitch machine designed for the professional who demands speed, durability, and a perfect finish. Engineered with genuine Japanese-made components (including the hook and internal gears), this machine offers superior stitch consistency and mechanical longevity compared to standard lockstitch models.

Ideal for light-to-medium weight fabrics, the 7360R-1 features a low-vibration design and an automatic lubrication system that allows it to maintain speeds of up to 5,500 stitches per minute. This complete unit includes a modern, energy-efficient Servo Motor, providing silent operation and precise speed control for delicate work.



The 7360R-1 excels in high-volume apparel and textile production:

  • Garment Assembly: Shirts, blouses, trousers, and skirts.
  • Lingerie & Swimwear: Precision sewing on light, delicate fabrics.
  • Home Decor: Curtains, drapery, and lightweight upholstery.
  • Alterations: Fast, reliable straight stitching for tailoring and mending.
  • Premium Japanese Engineering: Built with high-quality Japanese components to ensure smoother operation and a longer machine lifespan.
  • Ultra-High Speed: Capable of reaching 5,500 SPM, making it one of the fastest straight-stitch machines in its class.
  • Automatic Lubrication System: A built-in centrifugal pump automatically oils all vital internal parts, allowing for continuous high-speed production with minimal maintenance.
  • Quiet & Efficient Servo Motor: The included 110V Servo Motor is 90% more energy-efficient than traditional clutch motors and operates silently when the pedal is not engaged.
  • Precision Stitch Control: Features a large, easy-to-use stitch length dial and a tactile reverse lever for effortless back-tacking.
  • Smooth Operation: Specifically designed to minimize noise and vibration, providing a comfortable environment for the operator during long production shifts.
  • Max Sewing Speed : 5,500 SPM (Stitches Per Minute)
  • Application : Light to Medium Weight Materials
  • Max Stitch Length : 5mm (5 SPI)
  • Needle System : 16 x 257 (DBx1)
  • Presser Foot Lift : 5.5mm (Hand) / 13mm (Knee)
  • Needle Bar Stroke : 30.7mm
  • Hook Type : Japanese-Made Full Rotary Hook
  • Lubrication : Fully Automatic
  • Work Space : 10-1/4" (260mm)

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
