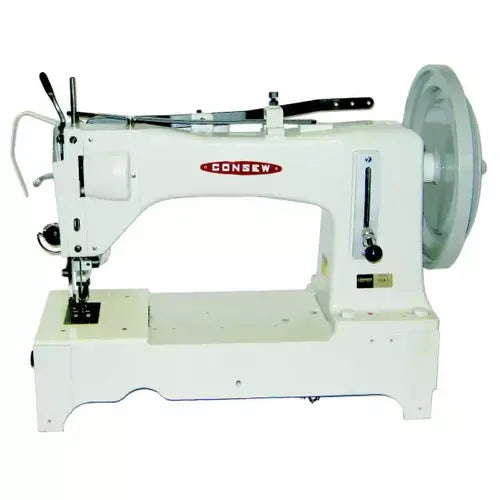

Consew 733R-6 Extra Heavy-Duty Long Arm Walking Foot Machine

Consew 733R-6 Extra Heavy-Duty Long Arm Walking Foot Machine

733R-6

Complete Unit: Includes Assembled Table & High-Torque Servo Motor

$9,599.95
$9,599.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 733R-6

is a powerhouse engineered for the most extreme sewing tasks. Known as an "Extra Heavy Duty" specialist, it features an elongated long arm (16-1/8") for managing massive rolls of material and a high-clearance foot lift for sewing through layers that would stall any other machine.

Equipped with alternating presser feet (Walking Foot) and a synchronized feed mechanism, it handles thick leather, multiple layers of canvas, and heavy webbing without slippage.3 This unit is paired with a specialized High-Torque Servo Motor, providing the brute force needed for thick materials with the benefit of adjustable speed control.

Also Available:
Model 733R-6AL(N) with air powered reverse and presser footlift
Model 733R-6-36 featuring 36” long arm

  • Massive Sewing Capacity: Specifically designed to handle extra-heavy materials including thick leather, plastics, and laminated fabrics.
  • Extra Long Arm: The 16-1/8" (410mm) workspace provides ample room for bulky items like sails, tents, and parachutes.
  • Walking Foot (Alternating Presser Feet): Ensures positive feeding of heavy materials, preventing the top and bottom layers from shifting.
  • Enormous Presser Foot Lift: A 1-1/4" (32mm) lift allows for the insertion of extremely thick material assemblies.
  • Extra Large Shuttle Hook: Features a large-capacity bobbin to reduce the frequency of thread changes when using thick industrial threads.
  • Reverse Feed: Built-in lever for securing heavy-duty seams.
  • High-Torque Servo Motor: Offers incredible piercing power at low speeds, essential for precision work on thick materials.
  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 550
  • Clearence Under Presser Foot: 1 1/4" (32mm)
  • Stitch Length: 2 s.p.i. (13mm)
  • Hook Size: Large
  • Work Space: 16 1/4" (413mm)
  • Needle: 1000 or 1000H
  • Bobbin: Pre-Wound 41
  • Bed Size: 10" x 26 1/4" (258mm x 665mm)
  • Stitch Type: 301
  • Gross Weight: 348 lbs. (158 kgs)
  • Weight: 231 lbs. (105kg)
  • Needle Bar Stroke: 2 3/32" (53mm)
  • Hook: 35224

MACHINE APPLICATIONS:

  • For stitching extra heavy-weight materials
  • Designed for such operations and products as safety and logging belts, cargo slings, buffing wheels, tents, sails, harnesses, tarpaulins and covers, fabric structures, construction barriers, parachutes, balloons, industrial bags, boot stitching, book binding

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
