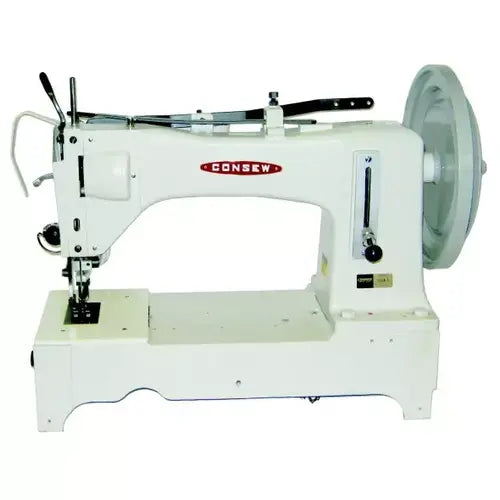

Consew 733R-5 Extra Heavy-Duty Long-Arm Walking Foot Industrial Sewing Machine

Consew 733R-5 Extra Heavy-Duty Long-Arm Walking Foot Industrial Sewing Machine

733R-5

Complete Unit: Includes Assembled Table, Reinforced Stand, and High-Torque Servo Motor

$9,299.95
$9,299.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 733R-5

is the ultimate solution for sewing the world's heaviest materials. This extra-heavy-duty machine features an extra-long 16-1/2" arm and a large shuttle hook, making it capable of handling thick threads and multiple layers of dense fabric with ease. Its alternating presser feet (walking foot) and drop-feed system ensure that heavy canvas, thick leather, and industrial webbing are fed perfectly without slipping.

If you are sewing materials like multi-ply webbing, heavy leather, or multi-layered canvas that standard "heavy-duty" machines struggle to penetrate, the 733R-5is the industry standard. It trades high speed for raw, unstoppable power and the highest foot lift available in a single-needle machine.

  • Alternating Presser Feet (Walking Foot): Powerful top and bottom feeding mechanism ensures even stitching across bulky seams and multiple layers of heavy material.
  • Massive Shuttle Hook: Features an extra-large "Oscillating Shuttle Hook" to accommodate the largest bobbins and thickest industrial threads (up to #415).
  • Extra-Long Workspace: The 16-1/2" (420mm) arm provides significant clearance for large sails, tents, and bulky industrial covers.
  • Incredible Foot Lift: A massive 1-1/4" (32mm) presser foot clearance allows for the thickest material stacks in the industry.
  • High-Torque Servo Motor: Equipped with a specialized 110V Servo motor designed to provide maximum needle penetration power at extremely low, controlled speeds.
  • Reverse Stitching: Includes a large, heavy-duty reverse lever for secure back-tacking on high-tension seams.
  • Stitch Type: Single Needle Lockstitch (Type 301)
  • Max Sewing Speed: 550 Stitches Per Minute (SPM)
  • Max Stitch Length: 13/32" (10 mm)
  • Presser Foot Clearance: 1-1/4" (32 mm) by Pedal / 25/32" (20 mm) by Hand
  • Needle System: 1000 / 1000H (Sizes 22 to 30)
  • Work Space (Arm): 16-1/2" (420 mm)
  • Bed Size: 10" x 20-1/2" (255 mm x 520 mm)
  • Hook Type: Extra-Large Oscillating Shuttle Hook
  • Lubrication: Manual (Oil Cup System)
  • Military & Safety: Parachutes, safety harnesses, cargo slings, and ballistic vests.
  • Marine & Outdoor: Heavy-duty sails, tarpaulins, tents, and awnings.
  • Leather & Industrial: Saddles, harnesses, buffing wheels, and heavy webbing.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
