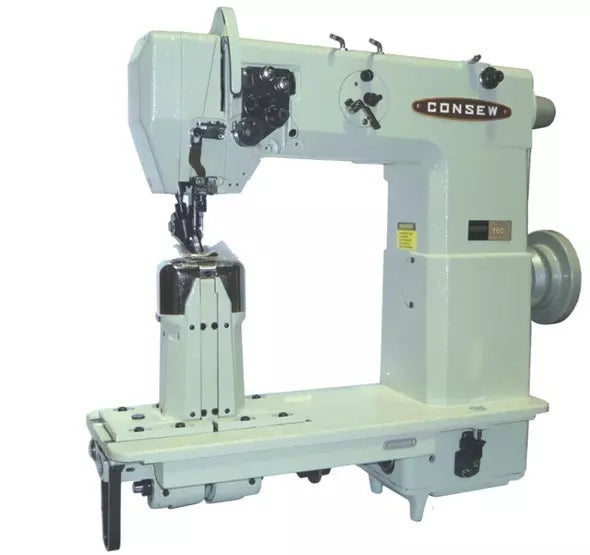

Consew 702 High Speed, 2 Needle, Post Bed, Drop Feed, Needle Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 702 High Speed, 2 Needle, Post Bed, Drop Feed, Needle Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

702

This complete workstation includes a professional industrial table and an energy-efficient Servo Motor, providing the precision and speed required for high-end footwear and apparel manufacturing.

$3,499.99
$3,499.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 702

is a specialized high-speed, twin-needle lockstitch machine designed with a post bed configuration. This vertical-arm design is essential for sewing 3D objects, tight curves, and corners that are inaccessible to standard flatbed machines.

Equipped with a Needle Feed and Drop Feed system, the Consew 702 ensures that both needles maintain perfect synchronization, preventing material shifting or "puckering" across multiple layers.

Consew 702 High Speed, 2 Needle, Post Bed, Drop Feed, Needle Feed Lockstitch Industrial Sewing Machine With Table, Legs, Servo Motor and LED Lamp

Vertical Axis Rotary Hooks, Intermittent Wheel Feed, Intermittent Positively Driven Roller Presser, Simplified Semi-automatic Lubrication, Anti-Friction Ball and Roller Bearings, Built-In Bobbin Winder.

MACHINE MODELS AVAILABLE:

  • Vertical Post Bed Design: The 7" (178mm) high post allows for effortless maneuvering of curved and shaped items like shoes, bags, and hats.
  • Twin-Needle Precision: Produces two perfectly parallel rows of lockstitches simultaneously, increasing production speed and seam uniformity.
  • Needle Feed Mechanism: The needles move in unison with the feed dog, providing positive traction on slippery or multi-layered fabrics.
  • High-Speed Productivity: Capable of reaching 3,000 stitches per minute, making it a powerhouse for high-volume industrial environments.
  • Semi-Automatic Lubrication: Features a centralized oiling system to ensure long-term durability and smooth operation at high speeds.
  • Adjustable Speed Servo Motor: The brushless motor offers 90% energy savings and allows for exact speed control, essential for intricate topstitching.
  • Max Speed: 3,000 SPM (Stitches Per Minute)
  • Stitch Length: Max 6.5 s.p.i. (4mm)
  • Needle Gauge: Standard 1/4" (6.4mm) - Other sizes available
  • Post Height: 7" (178mm)
  • Clearance Under Foot: 5/16" (8mm)
  • Needle System: 135 x 5
  • Stitch Type: 301 Lockstitch
  • Work Space: 9-1/2" (240mm)
  • Footwear: Assembling and topstitching boots, sneakers, and leather shoes.
  • Headwear: Constructing caps, hats, and specialized headgear.
  • Bags & Accessories: Sewing purses, handbags, and backpacks with complex shapes.
  • Automotive Trim: Detailed stitching on seat covers and interior panels.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
