Consew 701 High Speed, 1 Needle, Post Bed, Drop Feed, Needle Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 701 High Speed, 1 Needle, Post Bed, Drop Feed, Needle Feed Lockstitch Industrial Sewing Machine With Table and Servo Motor

701

This complete unit includes a professional industrial table and a high-torque Servo Motor for quiet, energy-efficient operation.

$2,549.99
$2,549.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

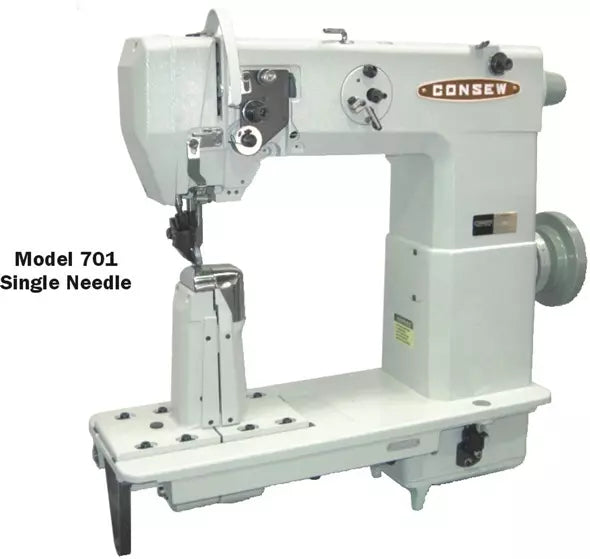

Consew 701

is a high-speed, single-needle lockstitch machine featuring a specialized 7-inch vertical post bed. This design is essential for sewing 3D shapes, tight curves, and tubular sections that are impossible to maneuver on a standard flatbed.

Equipped with a Needle Feed and Drop Feed system, the Consew 701 ensures that the needle and feed dog move in perfect synchronization. This dual-action feeding mechanism provides superior traction on slippery, multi-layered, or synthetic materials, preventing ply-shift and ensuring uniform stitch lengths.

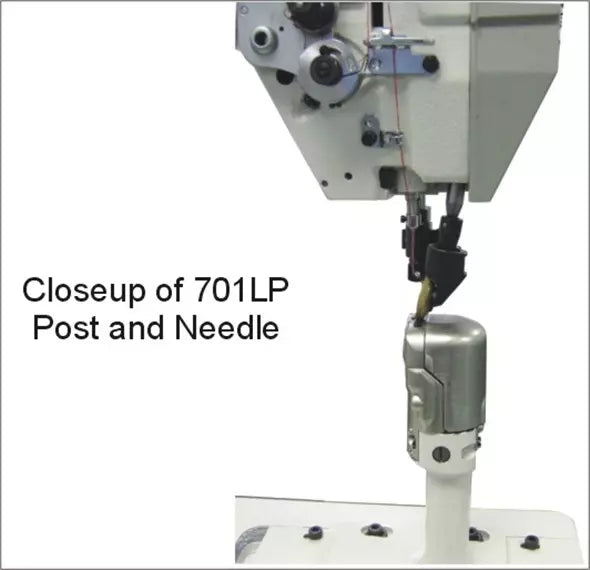

  • Vertical Post Bed (7"): The slim post provides the clearance needed to rotate and maneuver items like shoes, boots, and bags with ease.
  • Synchronized Needle Feed: The needle moves with the material, eliminating fabric "creeping" and ensuring consistent stitching on light to medium-weight materials.
  • High-Speed Productivity: Capable of reaching up to 3,000 stitches per minute, making it a reliable workhorse for high-volume production.
  • Large Rotary Hook: Features a high-quality vertical axis rotary hook for consistent stitch formation and reduced maintenance.
  • Adjustable Servo Motor: Provides 90% energy savings and allows for exact speed control—from stitch-by-stitch precision to full speed.
  • Semi-Automatic Lubrication: Centralized oiling system keeps internal components running smoothly at high speeds.
  • Max Speed: 3,000 SPM (Stitches Per Minute)
  • Stitch Length: Max 6.5 s.p.i. (4mm)
  • Clearance Under Foot: 5/16" (8mm)
  • Post Height: 7" (178mm)
  • Needle System: 135 x 5
  • Needle Bar Stroke: 1-5/16" (33.4mm)
  • Work Space: 9-1/2" (240mm)
  • Stitch Type: 301 Lockstitch
  • Footwear: Ideal for assembly and topstitching on boots, sneakers, and leather shoes.
  • Bags & Luggage: Sewing curves on handbags, purses, backpacks, and specialized pouches.
  • Headwear: Constructing caps, hats, and protective headgear.
  • Industrial Trim: Detailed stitching on automotive interior panels and curved fabric assemblies.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
