Consew 697VF High Speed Coverstitch Industrial Sewing Machine With Table and Servo Motor

Consew 697VF High Speed Coverstitch Industrial Sewing Machine With Table and Servo Motor

697VF

Complete Unit: Includes Table, Stand, and Quiet Servo Motor

Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

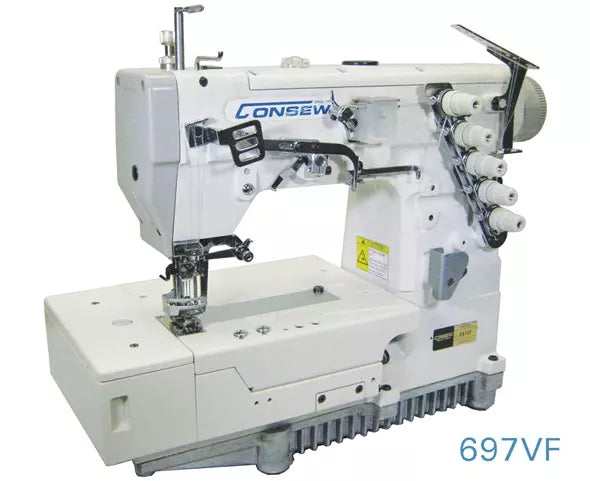

Consew 697VF

is a powerhouse industrial coverstitch machine engineered for high-volume production and professional-grade finishes. This flat-bed model is the industry standard for general seaming, hemming, and decorative topstitching on a vast range of fabrics. Built for speed and precision, it features a fully automatic lubrication system and a differential feed for flawless results on both stretchy and stable materials.

Consew 697VF

is the professional’s choice for finishing knit garments. This flatbedcoverstitchmachine is a dedicated "workhorse" designed for hemming and topstitching. It creates seams that stretch with the fabric without popping, making it indispensable for modern apparel manufacturing.

  • High-Speed Performance: Capable of reaching up to 6,000 stitches per minute, significantly increasing production output.
  • Precision Differential Feed: Includes micrometric adjustment for precise shirring or stretching of fabrics (Ratio: 1:0.7 ~ 1:2.0).
  • Automatic Protection: Features a fully automatic lubrication system with a visual flow control and a replaceable oil filter for long-term durability.
  • Advanced Cooling: Integrated silicone-based needle cooling and thread lubrication system prevents thread breakage and needle heat-up during high-speed operation.
  • Push-Button Stitch Regulator: Easily adjust stitch length with a simple push-button mechanism.
  • Quiet Servo Motor: The included energy-efficient servo motor is 1/3 lighter than traditional motors, uses up to 90% less power, and operates silently.
  • Max Sewing Speed : 6,000 SPM (Stitches Per Minute) Needle Configuration : 2 or 3 Needles (Comes standard with 3-needle/5.6mm gauge)
  • Stitch Length : 1.4mm – 3.6mm
  • Needle System : UY128GAS
  • Differential Ratio : 1:0.7 ~ 1:2.0
  • Presser Foot Lift : 7.0 mm
  • Needle Bar Stroke : 31 mm
  • Lubrication : Fully Automatic (Filtered)

The Consew 697VF is highly versatile and suitable for light to heavy-weight materials:

  • General Seaming: Ideal for manufacturing knitwear, t-shirts, and undergarments.
  • Hemming: Clean, professional bottom hems on activewear and leisurewear.
  • Specialty Work: Tape binding, elastic inserting, and decorative topstitching.
  • Material Types: Jersey, spandex, fleece, and light-to-midweight woven fabrics.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
