Consew 697VC High-Speed Cylinder Bed Coverstitch Industrial Sewing Machine

Consew 697VC High-Speed Cylinder Bed Coverstitch Industrial Sewing Machine

697VC

Complete Set: Includes Fully Assembled Table, K-Leg Stand, and High-Torque Servo Motor

Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

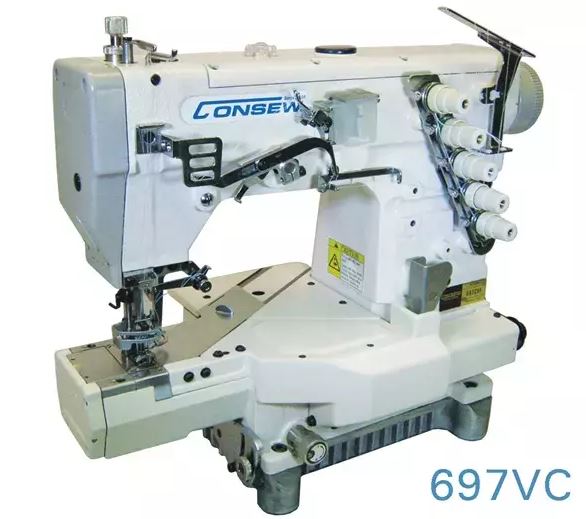

Consew 697VC

is a specialized, high-performance 3-needle, 5-thread industrial coverstitch machine featuring a Cylinder Bed design. This small-diameter arm is engineered specifically for sewing tubular garment sections—such as necklines, sleeve cuffs, and waistbands—that are impossible to handle on a standard flatbed machine. Paired with a quiet, energy-efficient Servo Motor, the 697VC provides the precision and speed required for professional knitwear manufacturing.

Consew 697VC

is a specialized, high-performance 3-needle, 5-thread industrial coverstitch machine featuring a Cylinder Bed design. This small-diameter arm is engineered specifically for sewing tubular garment sections—such as necklines, sleeve cuffs, and waistbands—that are impossible to handle on a standard flatbed machine. Paired with a quiet, energy-efficient Servo Motor, the 697VC provides the precision and speed required for professional knitwear manufacturing.

  • Small-Diameter Cylinder Bed: Essential for easy maneuvering of circular or tubular garment pieces like children's wear, sleeves, and collars.
  • Versatile 5-Thread System: Capable of producing a top and bottom coverstitch for a decorative, professional look, or a standard bottom-only coverstitch.
  • Differential Feed Adjustment: A micro-adjustment dial ensures smooth, non-wavy seams on highly elastic knits and prevents puckering on lightweight fabrics.
  • High-Torque Servo Motor: Offers 70% energy savings and adjustable speed control, allowing the operator to slow down for intricate curves or speed up for long production runs.
  • Fully Automatic Lubrication: A self-contained oiling system ensures internal components remain cool and lubricated at high speeds, extending machine life.
  • Adjustable Needle Gauge: Can be configured as a 2-needle or 3-needle machine to suit various seam widths.
  • Number of Needles : 3
  • Number of Threads : 5
  • Max Sewing Speed : 6,000 Stitches Per Minute (SPM)
  • Needle Gauge : 6.4 mm (1/4") Standard
  • Stitch Length : 1.2 mm – 4.4 mm
  • Differential Ratio : 1:0.5 ~ 1:1.3
  • Needle Type : UY 128 GAS
  • Presser Foot Lift : 6.0 mm
  • Motor Type : 550W Electronic Servo Motor (110V)

Consew 697VC

is the industry standard for finishing tubular knit garments. Its cylinder bed design removes the struggle of sewing small openings, while its high-speed 5-thread system creates strong, elastic seams that won't pop when stretched. It is a dedicated production tool built for speed, durability, and professional aesthetics.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
