Consew 695HEX High-Speed Heavy-Duty Overlock Industrial Sewing Machine

SKU:695HEX

Complete Set: Includes Track Foot, Fully Assembled Table, and High-Torque Servo Motor

Head Only (No Table) No, Thank You. Yes, Please.

Delivery within 3-5 working days

Description
About
Features
Specifications
Application
Manuals & warranty

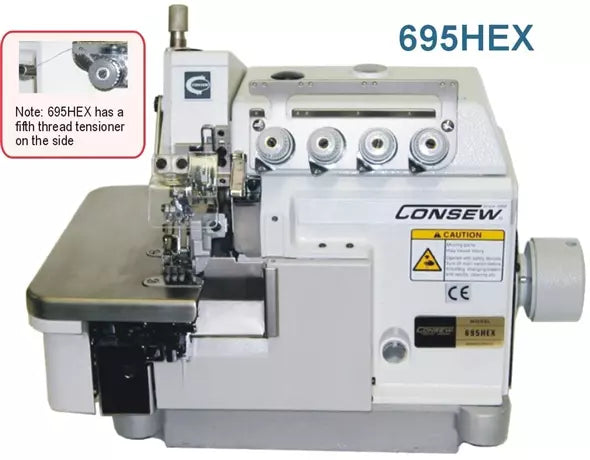

Consew 695HEX

is a specialized, heavy-duty industrial overlock machine designed for challenging materials that standard sergers cannot handle. Featuring a unique Track Foot system, this machine provides superior feeding and traction for thick, bulky, or slippery fabrics. Equipped with a powerful Servo Motor, it offers the high torque necessary for heavy-weight production while maintaining energy efficiency and precise speed control.

Consew 695HEX

is a heavy-duty powerhouse in the overlock world. It bridges the gap between standard garment sergers and heavy upholstery machines. With its specialized Track Foot and reinforced build, it is the perfect choice for professionals working with thick denim, heavy knits, or protective gear.

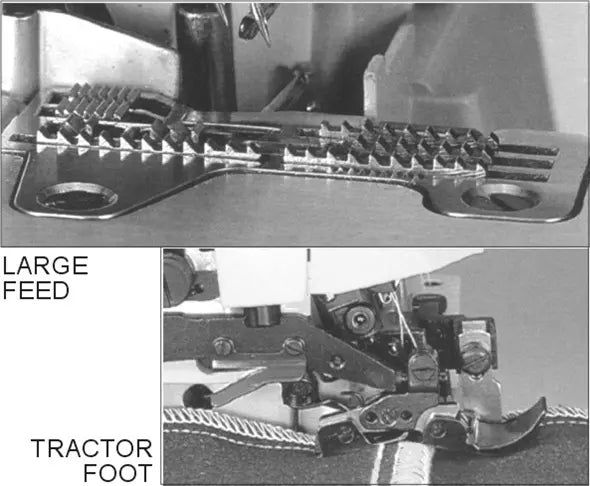

Specialized Track Foot: Provides enhanced grip and consistent feeding for heavy-weight or difficult-to-feed fabrics.
Heavy-Duty Construction: Reinforced "HEX" series build designed for long-duration use on thick materials.
Energy-Efficient Servo Motor: 550W high-torque motor provides quiet operation, 70% energy savings, and adjustable speed control for precision work.
High-Speed Performance: Capable of reaching up to 6,000 SPM (Stitches Per Minute), significantly faster than semi-industrial or domestic machines.
Automatic Lubrication System: Features a fully automatic oiling system with a replaceable oil filter to ensure internal parts stay cool under heavy loads.
Micro-Differential Feed: Easily adjustable to prevent puckering on synthetics or stretching on heavy knits.

Model Series : 695HEX (Heavy Duty)
Max Sewing Speed : 6,000 Stitches Per Minute (SPM)
Stitch Length : 0.5 mm – 3.8 mm
Overedge Width : 4.0 mm – 6.0 mm
Presser Foot Lift : 6.0 mm (High Lift for Heavy Fabrics)
Needle Type : DCx27 (B27)
Differential Ratio : 0.7 – 2.0
Motor Type : 550W High-Torque Servo Motor (110V)

Denim & Workwear: Ideal for side-seaming jeans, overalls, and heavy canvas work clothes.
Heavy Knits: Perfect for fleece, sweatshirts, and heavyweight athletic jerseys.
Upholstery & Home Decor: Overedging furniture covers, heavy drapery, and tapestry fabrics.
Protective Gear: Seaming and finishing industrial aprons, bags, and tactical gear.
Bulky Materials: Joining multiple layers of fabric where standard overlocks might slip or stall.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.
