Consew 694EX High-Speed Industrial Overlock Sewing Machine

Consew 694EX High-Speed Industrial Overlock Sewing Machine

694EX

Complete Professional Set: Includes Fully Assembled Table and Energy-Efficient Servo Motor

Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

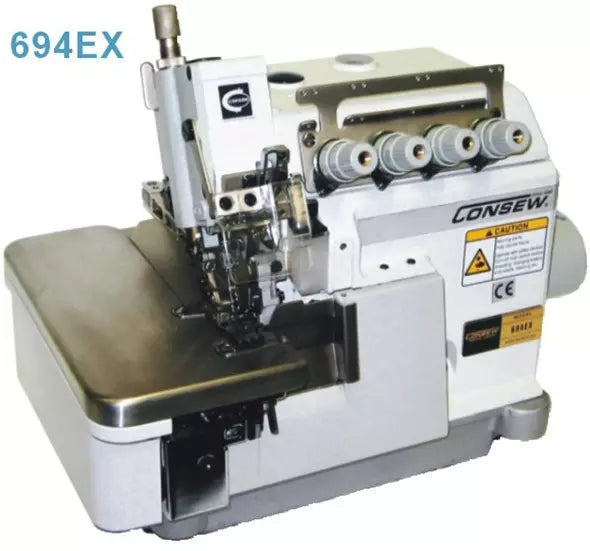

Consew 694EX

is a premier, ultra-high-speed industrial overlock serger designed for high-volume garment production. Engineered for maximum efficiency, this machine delivers consistent, factory-quality seams at speeds that far exceed standard sewing equipment. Equipped with a modern Electronic Servo Motor, the 694EX offers silent operation when idle and precise speed control, making it a reliable "workhorse" for apparel manufacturers, tailoring shops, and design studios.

Consew 694EX

is an industrial powerhouse designed for speed and reliability. It combines high-speed mechanical precision with modern electronic motor technology, offering a versatile solution for overedging and seaming a wide variety of materials from light silks to medium-heavy fabrics.

  • Ultra High-Speed Output: Capable of reaching up to 7,500 Stitches Per Minute (SPM), significantly reducing production time.
  • Electronic Servo Motor: Provides 70% energy savings compared to clutch motors, with adjustable speed settings for varying skill levels.
  • Automatic Lubrication System: Fully enclosed "oil-dry" system with a replaceable filter ensures smooth operation and prevents oil spots on fabrics.
  • Precision Differential Feed: A micro-adjustment dial allows for perfect seams on highly elastic knits or prevents puckering on thin, delicate materials.
  • Push-Button Stitch Regulator: Change stitch lengths instantly with a convenient button and handwheel mechanism.
  • Heavy-Duty Construction: Built with a reinforced cast-iron frame and heat-treated internal components for 24/7 industrial use.

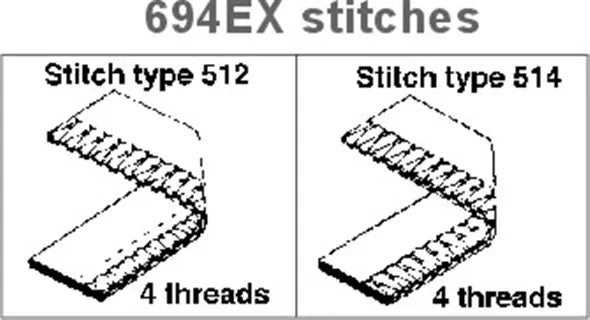

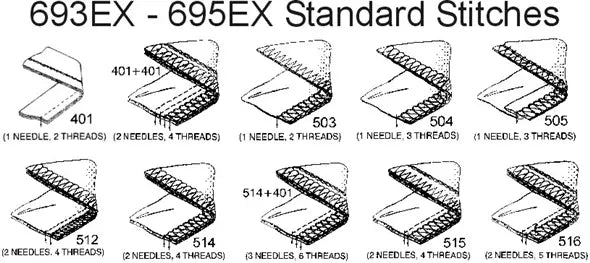

  • Number of Threads : 3, 4, or 5 (Varies by sub-model configuration)
  • Max Sewing Speed : 7,500 Stitches Per Minute (SPM)
  • Stitch Length : 0.5 mm – 3.8 mm
  • Overedge Width : 4.0 mm – 6.0 mm
  • Differential Ratio : 1 : 0.7 ~ 1 : 2.0
  • Needle System : DC x 27 (B27)
  • Presser Foot Lift : 5.5 mm
  • Motor Type : 550W High-Torque Servo Motor (110V)
  • Apparel Production: Ideal for seaming T-shirts, polo shirts, and casual wear.
  • Knitwear Finishing: Perfect for edge-finishing on sweaters, sweatshirts, and jersey fabrics.
  • Activewear: Creates durable, flexible seams for leggings, swimwear, and athletic jerseys.
  • Industrial Overedging: Preventing fraying on the raw edges of trousers, linens, and uniform panels.
  • Home Decor: Hemming curtains, pillowcases, and lightweight upholstery linings.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
