Consew 501P Heavy Duty Portable Battery Operated Rotary Cutter With Table and Servo Motor

Consew 501P Heavy Duty Portable Battery Operated Rotary Cutter With Table and Servo Motor

501P

Consew 501P Heavy Duty Portable Battery Operated Rotary Cutter With Table and Servo Motor
Delivery within 3-5 working days
View full details
  • Description
  • Specifications

Consew 501P Heavy Duty Portable Battery Operated Rotary Cutter Comes With Table, Legs, Servo Motor and LED Lamp

Heavy Duty NiCard Battery Pack and Temperature controlled Quick Charge Charger

MACHINE APPLICATIONS:

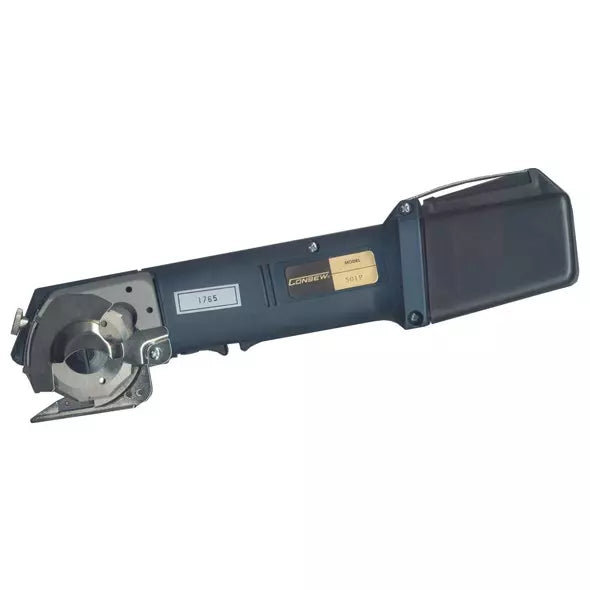

This cordless heavy duty electric shear works like a pair of hand shears only faster, cleaner and easier.  Cuts material of up to ½" (12 mm) in thickness, including knitted fabrics, leather, carpet, fiberglass, etc

MACHINE FEATURES:

  • A 2-15/16" (60 mm) 10-sided round knife and carbide tipped stationary counter knife. Comes with a sharpening stone mounted in the machine.
  • At the heart of this cutter is it's powerful 9.6 volt brushless motor fed by a heavy-duty NiCad Battery Pack.  It recharges in 1 hour and can cut approximately 325 yards (300 meters) of cloth or 350 feet (120 meters) of material on a single charge.  For continuous operation, keep a second (optional)battery in the charger.
  • The newly designed knife guard meets international safety regulations.
  • It comes equipped with simple touch sharpener to ensure sharpness at all times.
  • Stops automatically if it slips out of your hand.
  • The shear with battery attached is only 2.5 lbs (1.136 kg.)  11-1/2" (29.5 cm) long.

THE ADVANTAGES OF A SERVO MOTOR:

  • They use up to 90% less power than clutch motors
  • They are 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust.
  • No matter how hard you press the foot pedal configured speed remains the same

Because of Servo motor speed control, most users find the machine is easier to use.  Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.


U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.
