Consew 4214P 4-Needle Heavy-Duty Lockstitch Industrial Sewing Machine with Table, Stand, and High-Torque Servo Motor

Consew 4214P 4-Needle Heavy-Duty Lockstitch Industrial Sewing Machine with Table, Stand, and High-Torque Servo Motor

4214P

Compound Feed (Walking Foot) | Integrated Rear Puller | Large Hooks

$11,799.95
$11,799.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

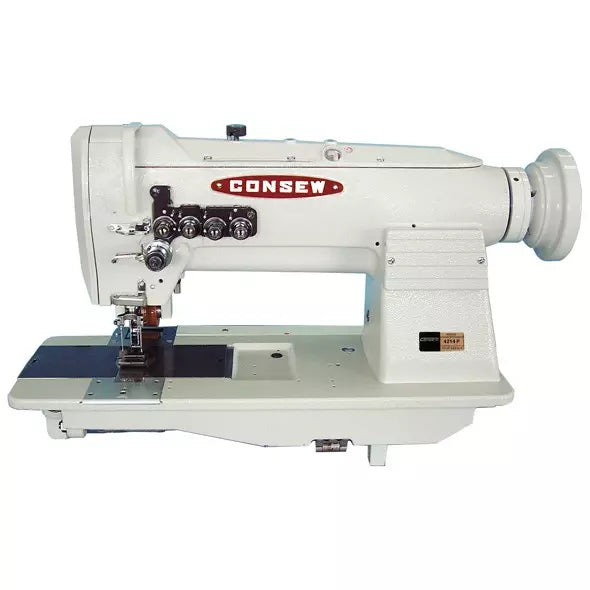

Consew 4214P

is a high-performance, 4-needle industrial lockstitch machine engineered for heavy-duty applications that require perfectly parallel seams. Featuring a Compound Feed (Walking Foot) mechanism and a synchronized Heavy-Duty Rear Puller, it ensures effortless feeding of bulky or "sticky" materials without shifting or puckering. This machine is the industry standard for attaching tape, reinforcing seams, and creating multi-line decorative stitching on heavy-weight fabrics.

  • 4-Needle Synchronization: Sews four perfectly parallel lines of lockstitches in a single pass, drastically increasing production speed.
  • Compound Feed / Walking Foot: The triple-feed system (needle, presser foot, and feed dog) prevents the top and bottom layers of material from slipping or bunching.
  • Integrated Rear Puller (P-Type): An independent, high-grip rear puller assists in moving long or heavy workpieces through the machine with consistent tension.
  • Large Vertical Axis Hooks: Equipped with large bobbins that hold 40% more thread than standard hooks, reducing downtime for thread changes.
  • Adjustable Needle Gauge: Standard 1/4" spacing (other gauges available) to meet specific manufacturing requirements.
  • High-Torque Servo Motor: Includes a 110V adjustable-speed motor that provides massive piercing power while remaining 70% more energy-efficient than clutch motors.

Number of Needles: 4

  • Feeding Mechanism: Drop Feed
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 2500
  • Motor Type: Servo
  • Stitch Length: 7.1 s.p.i. (3.6mm)
  • Needle: 7x3 (DYx3)
  • Lift of Presser Foot by Knee: 9.6 mm
  • Uniforms & Tactical Gear: Ideal for sewing rank tapes, webbing, and reinforced seams on military and police apparel.
  • Automotive & Marine: Perfect for multi-line topstitching on seat covers, dashboards, and boat cushions.
  • Upholstery: Creating decorative ribbing or attaching reinforcement strips to furniture panels.
  • Sporting Goods: Constructing heavy-duty bags, straps, and protective padding.
  • Awnings & Tents: Sewing long, straight seams on heavy canvas and outdoor vinyl.

DOWNLOADS:

Parts List - CONSEW 4214PCatalog - CONSEW 4214P

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
