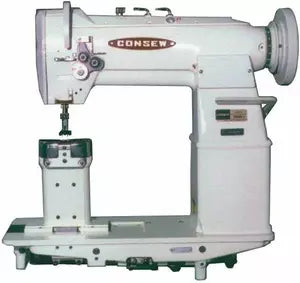

Consew 389RB-2 High-Speed Twin-Needle Post Bed Compound Feed Industrial Sewing Machine

Consew 389RB-2 High-Speed Twin-Needle Post Bed Compound Feed Industrial Sewing Machine

389RB-2

This complete unit features a professional table and a high-torque Servo Motor for silent operation and absolute speed control.

$4,999.99
$4,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 389RB-2

is a powerhouse industrial machine designed for high-speed, heavy-duty sewing of three-dimensional, curved, and multi-layered articles. Its 7-inch vertical post bed provides the clearance necessary for maneuvering bulky items like automotive seats and luggage that a flatbed cannot handle.

Equipped with a Triple Feed (Compound Feed) system—combining drop feed, needle feed, and alternating walking feet—the 389RB-2 ensures perfectly synchronized feeding, eliminating material slippage on heavy leather, vinyl, and canvas.

  • Triple Feed (Compound Feed): Synchronized needle, feed dog, and walking foot action provides positive traction for heavy, slippery, or uneven materials.
  • Twin-Needle Parallel Stitching: Produces two perfectly parallel rows of stitches in one pass, essential for structural reinforcement and decorative topstitching.
  • 7" Vertical Post Bed: Allows for effortless rotation and maneuvering of concave or convex shapes, such as boot vamps and automotive headrests.
  • Large Vertical Axis Hooks: Features two large hooks with high-capacity bobbins to handle thick industrial threads and reduce changeover frequency.
  • Safety Clutch: Automatically protects the rotary hooks and internal gears from damage in the event of a thread jam or needle strike.
  • Centra-Lube® System: Semi-automatic lubrication ensures smooth, high-speed performance and extended machine longevity.
  • Max Speed: 2,400 SPM (Stitches Per Minute)
  • Stitch Length: Max 4.2 s.p.i. (6mm)
  • Needle Gauge (Spacing): Standard 1/4" (6.4mm) — Optional sizes from 1/8" to 1-1/2" available
  • Post Height: 7" (178mm)
  • Clearance Under Foot: 5/16" (8mm) by hand; 5/8" (16mm) by foot
  • Needle System: 135 x 17
  • Needle Bar Stroke: 1-5/16" (33.2mm)
  • Stitch Type: 301 Lockstitch (Double Needle)
  • Automotive & Marine: Headrests, seat covers, dashboards, and interior panels.
  • Footwear: Assembling and topstitching heavy-duty boots and sneakers.
  • Furniture Upholstery: Specialized leather sofas, chairs, and cushions.
  • Luggage & Travelware: Suitcases, golf bags, backpacks, and specialized pouches.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
