Consew 369RB-2 Heavy-Duty Twin-Needle Post Bed Industrial Sewing Machine with Angular Stitching

Consew 369RB-2 Heavy-Duty Twin-Needle Post Bed Industrial Sewing Machine with Angular Stitching

369RB-2

This complete unit includes a professional table and a high-torque Servo Motor for maximum piercing power and silent operation.

$5,499.99
$5,499.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

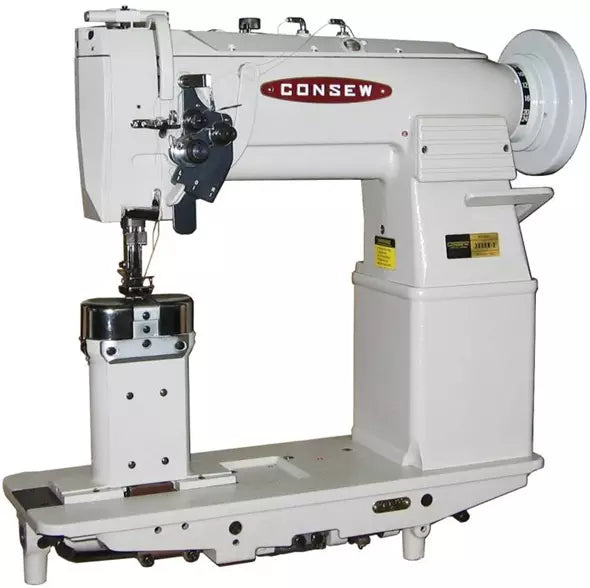

Consew 369RB-2

is an advanced heavy-duty industrial machine designed for complex topstitching on three-dimensional articles. It features a 7-inch vertical post bed for easy maneuvering and a Split-Needle Bar (Angular Stitching) system, allowing operators to stop one needle for sharp, perfect corners.

Engineered with Triple Feed (Compound Feed)—drop feed, needle feed, and walking foot—this machine handles thick leathers and multi-layered upholstery with ease, ensuring no material shifting.

  • Split-Needle Bar (Angular Stitching): Allows for the independent disengagement of the left or right needle, enabling perfect 90-degree cornering without overlapping stitches.
  • Triple Feed (Compound Feed): The synchronized action of the needle, feed dog, and walking foot provides consistent traction on heavy, slippery, or uneven materials.
  • 7" Vertical Post Bed: Provides the clearance necessary for sewing concave/convex shapes like automotive headrests and footwear.
  • Large Vertical Axis Hooks: Features two large hooks to accommodate high-capacity bobbins, reducing downtime when using thick industrial threads.
  • Safety Clutch: Automatically protects the hooks from damage in the event of a thread jam or needle strike.
  • High-Torque Servo Motor: Offers 90% energy savings and allows for "stitch-by-stitch" precision on intricate ornamental seams.
  • Max Speed: 2,400 SPM (Stitches Per Minute)
  • Stitch Length: Max 4.2 s.p.i. (6mm)
  • Needle Gauge (Spacing): Standard 1/4" (6.4mm) — Optional sizes available
  • Clearance Under Foot: 5/16" (8mm) by hand; 5/8" (16mm) by foot
  • Post Height: 7" (178mm)
  • Needle System: 135 x 17
  • Needle Bar Stroke: 1-5/16" (33.2mm)
  • Stitch Type: 301 Lockstitch (Double Needle)
  • Automotive & Marine: Detailed topstitching on leather seats, dashboard panels, and headrests.
  • Footwear: Ideal for high-end boots and sneakers requiring precise parallel seams and sharp turns.
  • Furniture Upholstery: Specialized for sewing leather sofas and chairs with complex shapes.
  • Heavy-Duty Accessories: Manufacturing suitcases, golf bags, and protective gear.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
