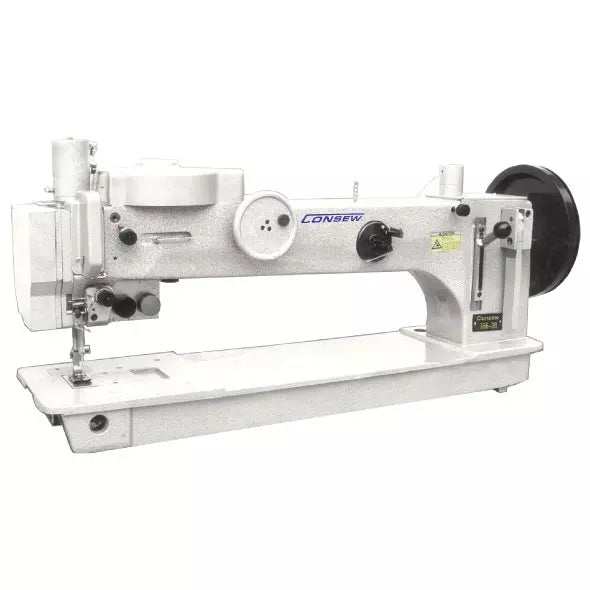

Consew 366-30 Heavy-Duty Long-Arm Zig-Zag Industrial Sewing Machine

Consew 366-30 Heavy-Duty Long-Arm Zig-Zag Industrial Sewing Machine

366-30

Consew 366-30 Heavy Duty Single Needle Straight Stitch and Zig-Zag Long-Arm Lockstitch Industrial Sewing Machine With Table and Servo Motor

$13,500.00
$13,500.00 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 366-30

is an extra-heavy-duty, long-arm industrial machine specifically designed for large-scale manufacturing. With a massive 30-inch (762mm) clearance to the right of the needle, it provides the necessary space to handle bulky materials like sails, parachutes, and tents. Capable of both straight-stitch and wide zig-zag operations, this machine utilizes a large horizontal axis rotary hook to handle thick threads and heavy fabrics with ease.

The primary advantage of this model is the 30-inch arm. Standard industrial machines usually offer 10 inches of space, making large projects a struggle of rolling and bunching fabric. The 366-30 eliminates this bottleneck, allowing for professional, flat-seam results on the largest items imaginable.

  • 30-Inch Long-Arm: Massive workspace allows for the easy maneuvering of large sails, tarpaulins, and oversized covers.
  • Large Rotary Hook: Horizontal axis hook with a large bobbin capacity reduces down-time by accommodating more thread for heavy-duty projects.
  • Extra-Wide Zig-Zag: Offers a 2-point zig-zag width of up to 10mm for structural reinforcement and elastic seaming.
  • Heavy-Duty Feeding: Powerful drop-feed mechanism ensures smooth transit for medium to extra-heavyweight fabrics.
  • Servo Motor Precision: Includes a 110V digital Servo motor for high torque at low speeds—essential for precision stitching on thick materials.
  • Integrated Reverse: Large, easy-access reverse lever for quick back-tacking and seam reinforcement.
  • Stitch Type: Single Needle, Zig-Zag and Straight Lockstitch (Type 304/301)
  • Work Space (Arm Length): 30" (762 mm)
  • Max Sewing Speed: 800 Stitches Per Minute (SPM)
  • Max Stitch Width: 25/64" (10 mm)
  • Max Stitch Length: 2.5 S.P.I. (10 mm)
  • Presser Foot Clearance: 1/2" (13 mm)
  • Needle System: 7 x 3 / DY x 3
  • Hook Type: Large Horizontal Axis Rotary Hook
  • Lubrication: Manual
  • Aviation & Marine: Manufacturing and repair of sails, parachutes, and hot air balloons.
  • Outdoor Gear: Large tents, tarpaulins, truck covers, and awnings.
  • Safety Equipment: Safety nets, heavy-duty slings, and structural webbing.
  • Upholstery: Oversized furniture covers and heavy-duty protective mats.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
