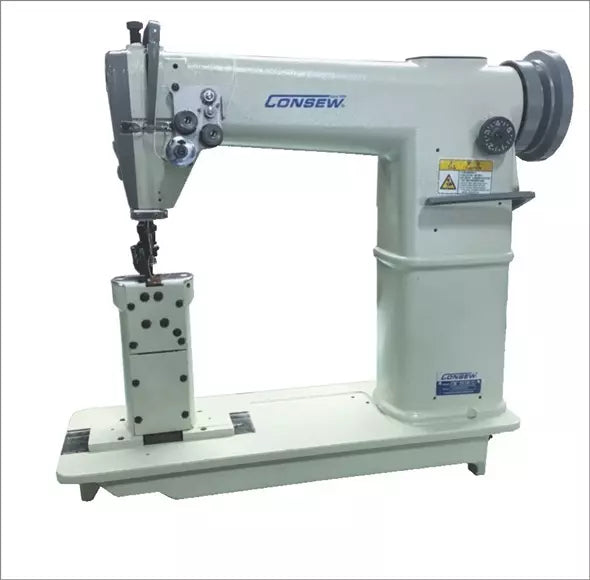

Consew 357R-2 High Speed, Post Bed, 2 Needle, Drop Feed, Lockstitch Industrial Sewing Machine With Table and Servo Motor

Consew 357R-2 High Speed, Post Bed, 2 Needle, Drop Feed, Lockstitch Industrial Sewing Machine With Table and Servo Motor

357R-2

This complete unit includes a professional industrial table and a high-torque Servo Motor, providing quiet operation and the precise speed control necessary for detailed topstitching.

$2,699.95
$2,699.95 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 357R-2

is a high-speed, twin-needle lockstitch machine engineered with a vertical post bed for specialized industrial manufacturing. This design is essential for sewing shaped, three-dimensional, or curved items—such as footwear and luggage—that cannot be processed on a standard flatbed.

Featuring a dual-needle setup, it produces two perfectly parallel rows of stitching in a single pass. The Drop Feed system is optimized for high-speed operation on light to medium-heavy materials.

  • Vertical Post Bed: Provides the clearance and maneuverability needed for sewing small-radius curves and 3D shapes.
  • Twin-Needle Topstitching: Ensures perfectly parallel seams, enhancing both the aesthetic and structural integrity of the garment or accessory.
  • High-Speed Performance: Reaches up to 3,000 stitches per minute, significantly increasing throughput in production environments.
  • Large Rotary Hooks: Features two vertical-axis rotary hooks with auto-lubrication to ensure smooth operation at high speeds and long-term durability.
  • Semi-Automatic Lubrication: Centralized oiling system minimizes maintenance downtime and protects internal components.
  • Energy-Efficient Servo Motor: Offers silent operation and 90% energy savings compared to clutch motors, with adjustable speed for intricate work
  • Max Speed: 3,000 SPM (Stitches Per Minute)
  • Stitch Length: Max 5 s.p.i. (5mm)
  • Clearance Under Foot: 5/16" (8mm)
  • Needle Gauge (Spacing): Standard 1/4" (6.4mm) — Optional sizes available
  • Post Height: 7" (178mm)
  • Needle System: 135 x 5
  • Needle Bar Stroke: 1-5/16" (33.4mm)
  • Stitch Type: 301 Lockstitch
  • Footwear: Ideal for assembling boots, shoes, sneakers, and slippers.
  • Bags & Luggage: Sewing purses, handbags, suitcases, and backpacks.
  • Headwear: Constructing caps and specialized hats.
  • Apparel & Trim: Detailed topstitching on leather jackets, uniforms, and automotive interior panels.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
