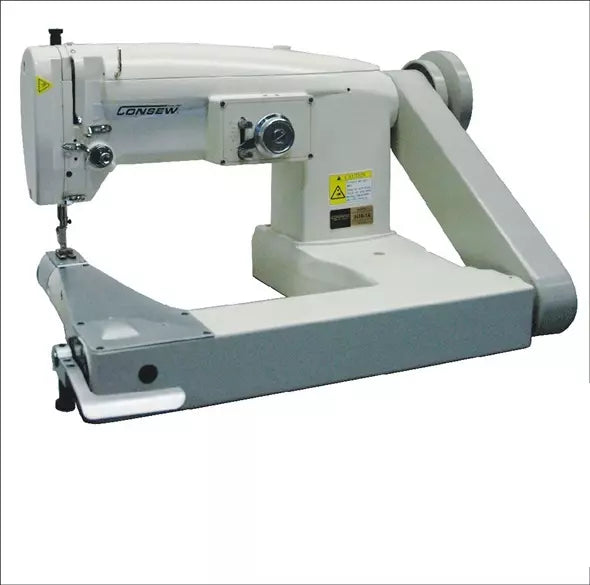

Consew 347R-2A-1 | Professional Feed-Off-The-Arm Zig-Zag Industrial Machine

Consew 347R-2A-1 | Professional Feed-Off-The-Arm Zig-Zag Industrial Machine

347R-2A-1

Complete Unit: Includes Assembled Table & High-Efficiency Servo Motor

$9,999.99
$9,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • About
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 347R-2A-1

is a specialized industrial sewing machine designed for precision zig-zag stitching on cylindrical and tubular objects. Unlike the standard 1-stitch model, the 2A-1 variant features a 2-stitch (3-point) zig-zag, providing enhanced seam strength and a distinct decorative finish. Its unique feed-off-the-arm cylinder bed allows for the easy maneuvering of sleeves, boots, and bags, making it an essential tool for apparel and accessory manufacturing.

Equipped with a modern Servo Motor, this unit offers silent operation, significant energy savings, and adjustable speed control, ideal for both high-volume production and intricate detail work.


The 347R-series is known for its versatility; the 2A-1 version specifically prevents the "seam snapping" often found in straight-stitch joins on stretch materials. By using the energy-efficient Servo motor, even beginners can maintain total control over intricate curved seams that require slower, more deliberate stitching.

  • Feed-Off-The-Arm Design: Specialized arm allows tubular pieces to flow past the needle, making it easy to close sleeves and circular garments without obstruction.

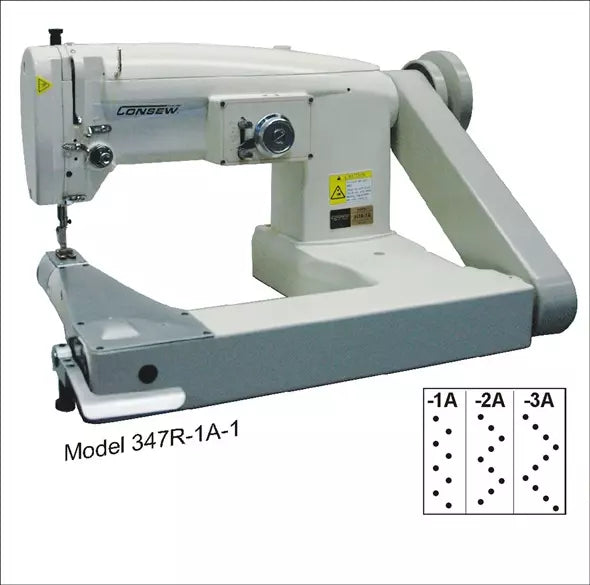

  • 2-Point (3-Step) Zig-Zag: Offers higher stitch density and better stretch than a standard zig-zag, perfect for elasticated or rubber-coated fabrics.
  • Narrow Cylinder Bed: The 2 3/16" (55mm) diameter bed provides the clearance needed for small cylindrical objects like gloves, orthopedic braces, and footwear.
  • High-Speed Performance: Capable of speeds up to 3,000 SPM, significantly increasing production output for commercial shops.
  • Horizontal Axis Rotary Hook: Ensures consistent thread tension and high-quality stitch formation across a variety of thread weights.
  • Drop Feed Mechanism: Provides precise material control for light to medium-weight materials including leather, vinyl, and canvas.
  • Instant Reverse: Dedicated lever for quick back-tacking to reinforce the start and end of every seam.
  • Max Sewing Speed : 3,000 SPM
  • Stitch Type : 2-Stitch (3-Step) Zig-Zag (Type 308)
  • Max Zig-Zag Width : 3/8" (8mm)
  • Max Stitch Length : 5 s.p.i. (5mm)
  • Cylinder Diameter : 2 3/16" (55mm)
  • Presser Foot Lift : 15/64" (6mm)
  • Needle System : 135 x 5
  • Bobbin : Metal B54
  • Work Space : 10" (255mm)
  • Water Sports & Diving: Premier choice for wet suits, dry suits, and neoprene accessories.
  • Technical Apparel: Closing sleeves, collars, and cuffs on specialized uniforms and outerwear.
  • Footwear & Leatherwork: Ideal for stitching boots, shoes, and tubular leather handbags.
  • Medical & Orthopedics: Precise stitching for knee/elbow braces and elastic supports.
  • Marine & Outdoor Gear: Reinforced zig-zag seams for sails, tarpaulins, mops, and awnings.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
