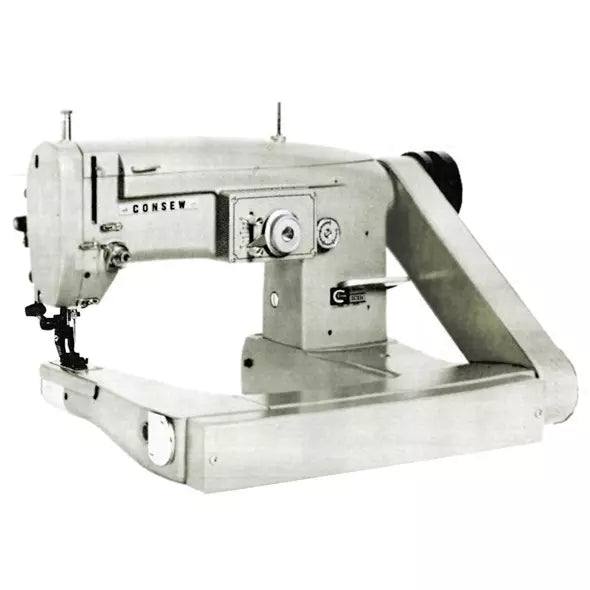

Consew 347R-1A-1UF Industrial Sewing Machine

Consew 347R-1A-1UF Industrial Sewing Machine

347R-1A-1UF

Feed-Off-The-Arm Zig-Zag| Upper & Lower Feed | Complete Unit with Table & Servo Motor

$8,999.99
$8,999.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 347R-1A-1UF

is a high-performance, specialized industrial machine designed for precision zig-zag stitching on cylindrical, tubular, and flexible materials. Unlike standard drop-feed models, the UF (Upper and Lower Feed) version features a walking foot mechanism that synchronizes the movement of the presser foot and the feed dog.2 This ensures smooth handling of stretch fabrics, coated materials, and multi-layered projects without puckering or material slippage.

This complete unit is shipped fully assembled with a high-torque Brushless Servo Motor, providing the silent operation and precise speed control required for technical sewing.

  • Upper & Lower Feed (Walking Foot): Powerful dual-action feeding mechanism prevents fabric shifting and ensures consistent stitch quality on rubber-coated cloth, vinyl, and elastic.
  • Feed-Off-The-Arm Design: The slim cylinder arm (55mm diameter) allows for effortless maneuvering of sleeves, pant legs, wetsuit limbs, and other tubular items.
  • Industrial Zig-Zag Capability: Produces a wide 10mm zig-zag stitch (Type 304), ideal for both functional reinforcement and decorative stitching on stretchable gear.
  • Reverse Feeding: Equipped with a dedicated reverse lever for effortless back-tacking and seam reinforcement.
  • Semi-Automatic Lubrication: Features an integrated oiling system that simplifies maintenance and ensures long-term reliability at high speeds.
  • Brushless Servo Motor: Includes a 110V energy-efficient motor that reduces power consumption by 90% and provides adjustable speed settings for delicate or high-speed work.

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 2800
  • Stitch Length: 5mm
  • Lubrication: Semi-Automatic
  • Presser Lift: 5mm
  • Zig-Zag Stitch Width: 10mm
  • Sewing Type: Single Needle, Lockstitch Zig-Zag
  • Cylinder Bed Length: 225mm
  • Cylinder Diameter: 55mm

The 347R-1A-1UF is the go-to machine for industries requiring a combination of cylinder arm maneuverability and walking foot power:

  • Technical Apparel: Wetsuits, drysuits, and neoprene surfing gear.
  • Medical & Protective: Orthopedic braces, elastic supports, and compression sleeves.
  • Outdoor Gear: Sails, tarpaulins, canvas bags, and heavy-duty covers.
  • Footwear & Accessories: Boots, shoes, mops, and leather cylindrical goods.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
