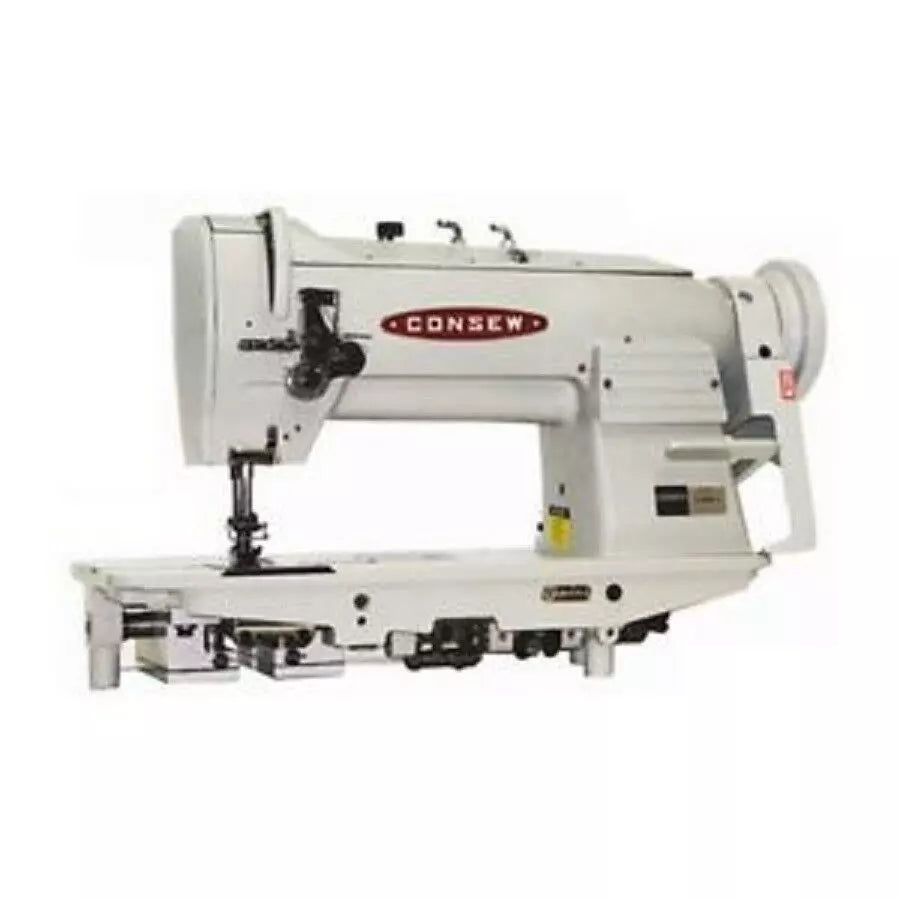

Consew 339RB-4 Heavy-Duty Twin-Needle Walking Foot Industrial Sewing Machine

Consew 339RB-4 Heavy-Duty Twin-Needle Walking Foot Industrial Sewing Machine

339RB-4

This complete workstation includes a professional industrial table and a high-torque Servo Motor, offering 90% energy savings and the silent, granular speed control required for high-end production.

$4,199.95
$4,199.95 Market price: $4,499.99
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 339RB-4

is a high-speed, double-needle lockstitch machine engineered for heavy-duty applications. Unlike standard machines, it features a Large Vertical Axis Hook and a Triple Feed (Compound Feed) system. This ensures that even the thickest leathers, canvases, and upholstery fabrics are fed through the machine with absolute precision, preventing material shifting or "creeping."

Equipped with two needles, it produces two perfectly parallel rows of reinforced stitching in a single pass.

  • Triple Feed (Compound Feed): Synchronized needle, feed dog, and walking foot action provides positive traction on heavy, slippery, or multi-layered materials.
  • Large Vertical Axis Hooks: Features two large hooks that accommodate high-capacity bobbins, significantly reducing downtime when using thick industrial threads.
  • Twin-Needle Precision: Delivers two perfectly parallel seams simultaneously—essential for structural reinforcement and decorative topstitching.
  • Safety Clutch: An integrated safety mechanism automatically disengages the hooks to prevent damage in the event of a thread jam or needle strike.
  • High Presser Foot Lift: 5/8" (16mm) clearance allows for the effortless insertion of thick, bulky assemblies.
  • Adjustable Speed Servo Motor: The brushless motor allows for "stitch-by-stitch" precision on detailed corners while providing immense piercing power.
  • Max Speed: 2,400 SPM (Stitches Per Minute)
  • Stitch Length: Max 2-1/2 s.p.i. (10mm)
  • Needle Gauge (Spacing): Standard 1/4" (6.4mm) — Other sizes from 1/8" to 1-1/2" available
  • Clearance Under Foot: 5/16" (8mm) by hand; 5/8" (16mm) by foot
  • Needle System: 135 x 17
  • Bobbin Type: Large Metal (18034)
  • Work Space: 10" (258mm)
  • Stitch Type: 301 Lockstitch (Double Needle)
  • Automotive & Marine: Seaming and topstitching seat covers, dashboards, boat interiors, and convertible tops.
  • Furniture Upholstery: Specialized for leather sofas, armchairs, and heavy cushions.
  • Luggage & Travelware: Manufacturing suitcases, golf bags, backpacks, and heavy canvas totes.
  • Heavy Apparel: Constructing leather jackets, tactical gear, and protective workwear.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

Product Videos

Product Comparison: Juki LU-1560N vs Consew 339RB-4 - Goldstartool.com

Tutorial-Consew-339RB-2-Needle-Walking-Foot-Machine

Product Showcase - Consew 339RB-4 Walking Foot Sewing Machine

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
