Consew 329RB-1 High-Speed Twin-Needle Post Bed Industrial Sewing Machine with Angular

Consew 329RB-1 High-Speed Twin-Needle Post Bed Industrial Sewing Machine with Angular

329RB-1

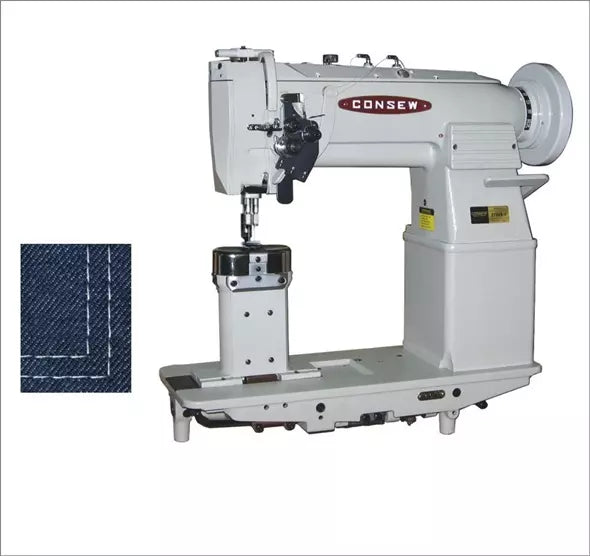

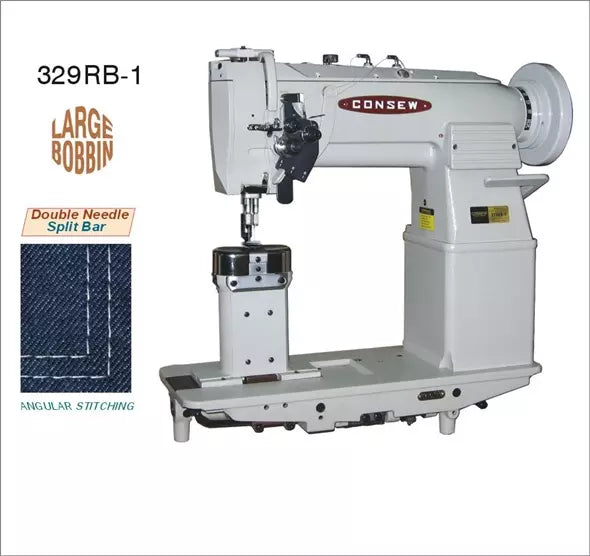

Consew 329RB-1 Heavy Duty, High Speed, Post Bed, 2 Needle, Angular Stitching, Drop Feed, Needle Feed, Lockstitch Industrial Sewing Machine With Table and Servo Motor

$4,949.99
$4,949.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 329RB-1

is a high-performance, double-needle industrial machine designed for the most demanding ornamental and structural topstitching. Featuring a 7-inch vertical post bed, this machine is essential for maneuvering curved or three-dimensional assemblies like footwear and automotive upholstery.

What sets the 329RB-1 apart is its split-needle bar (Angular Stitching) capability. This allows the operator to stop one needle independently while the other continues, facilitating perfect, sharp 90-degree corners without overlapping stitches.  Combined with a Needle Feed system, it ensures absolute precision and uniform feeding on multi-layered or slippery materials.

  • Split-Needle Bar: Enables "Angular Stitching" by allowing the operator to disengage the left or right needle for clean, sharp cornering.
  • Vertical Post Bed: Provides the necessary clearance for sewing high-top shoes, bags, and complex automotive interior panels.
  • Synchronized Needle Feed: The needle and feed dog move together to prevent material shifting, ensuring perfectly parallel seams.
  • High-Speed Performance: Reaches up to 3,000 SPM, making it a reliable workhorse for high-volume production.
  • Large Rotary Hooks: Equipped with vertical-axis hooks to handle high-capacity bobbins and thick industrial threads.
  • Adjustable Speed Servo Motor: Features an energy-efficient brushless motor for quiet operation and precise control—perfect for intricate cornering.
  • Max Speed: 3,000 SPM (Stitches Per Minute)
  • Stitch Length: Max 6.5 s.p.i. (4mm)
  • Needle Gauge (Spacing): Standard 1/4" (6.4mm) — Optional sizes from 1/8" to 1" available
  • Post Height: 7" (178mm)
  • Clearance Under Foot: 5/16" (8mm)
  • Needle System: 135 x 5
  • Stitch Type: 301 Lockstitch (Double Needle)
  • Work Space: 9-1/2" (240mm)
  • Automotive & Marine: Detailed topstitching on seat covers, headrests, and dashboard panels.
  • Footwear: Ideal for high-top boots, sneakers, and specialized shoe construction.
  • Bags & Accessories: Manufacturing purses, backpacks, and luggage where decorative parallel stitching is required.
  • Apparel: Precision stitching on pockets, collars, and uniforms.

DOWNLOADS:

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
