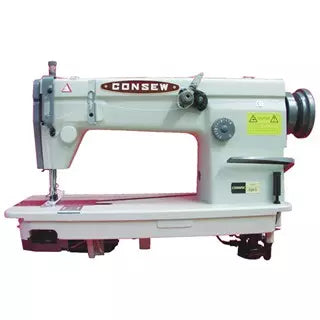

Consew 326S-1 High-Speed Industrial Double Chainstitch Machine – Single or Two Needle Tandem, Drop Feed with Table & Servo Motor

Consew 326S-1 High-Speed Industrial Double Chainstitch Machine – Single or Two Needle Tandem, Drop Feed with Table & Servo Motor

326S-1

With Automatic Lubrication System, Dial-Type Stitch Length Regulation, Cam-Type Take-Up Lever, Hinder Presser Foot

$2,499.99
$2,499.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 326S-1

is a specialized high-speed industrial sewing machine designed for high-stress seams that require the flexibility and strength of a Double Thread Chainstitch (Type 401). Featuring a precise drop feed mechanism and the ability to operate in a tandem needle configuration, this machine is perfect for long-run assembly of light to medium-heavy materials. By drawing thread directly from large cones, it eliminates the downtime of bobbin winding, making it an efficiency leader for apparel and automotive manufacturing. This unit includes a professional industrial table and a silent, energy-saving Servo motor.

  • Double Chainstitch (Stitch Type 401): Creates a highly durable and elastic stitch that "gives" with the fabric, preventing seam failure in stretch materials or high-tension areas.
  • Tandem Needle Capability: Can be configured as a single-needle or two-needle tandem machine for reinforced seams or specialized tape-binding operations.
  • High-Speed Efficiency: Delivers a maximum speed of 4,000 SPM (Stitches Per Minute), allowing for rapid production in high-volume environments.
  • Continuous Thread Supply: Uses a looper system instead of a bobbin, allowing you to sew through multiple thread cones without stopping to refill thread.
  • Automatic Lubrication: Features a fully automatic centrifugal pump system to ensure all internal components are oiled during high-speed operation.
  • Throw-Out Looper: The looper mechanism swings out for simplified threading and maintenance access.
  • Energy-Efficient Servo Motor: Includes a 110V Servo motor that provides 90% power savings compared to clutch motors and allows for precise, adjustable speed control.
  • Stitch Type: Double Thread Chainstitch (401)
  • Maximum Speed: 4,000 SPM
  • Needle System: 135 x 7
  • Maximum Stitch Length: 3.5 SPI (7.5 mm)
  • Needle Bar Stroke: 1-3/16" (30 mm)
  • Clearance Under Foot: 1/2" (13 mm) by Knee / 5/16" (8 mm) by Hand
  • Bed Size: 7" x 18-7/8" (177 mm x 477 mm)
  • Motor: 110V Electronic DC Servo Motor
  • Apparel Production: Ideal for side seams on trousers, workwear, denim jackets, and uniforms where seam elasticity is required.
  • Automotive Interiors: Used for seaming car seats, headrests, and interior trim where high-strength chainstitching is standard.
  • Light to Medium Upholstery: Excellent for furniture covers, pillow casings, and slipcovers.
  • Industrial Fabrics: Suitable for sewing filter bags, flags, banners, and light-duty canvas products.
  • Tape Binding: Often used for attaching reinforcement tapes to the edges of garments or bags.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
