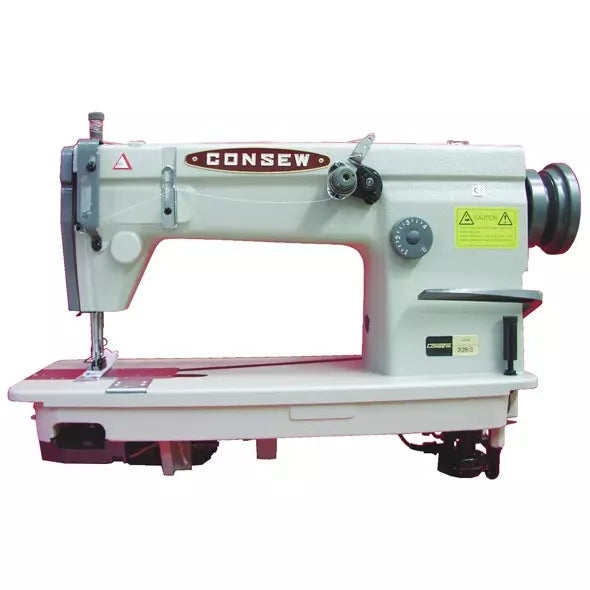

Consew 326D-1 Industrial High-Speed Chainstitch Machine – Single or Two-Needle Tandem, Drop Feed with Table & Servo Motor

Consew 326D-1 Industrial High-Speed Chainstitch Machine – Single or Two-Needle Tandem, Drop Feed with Table & Servo Motor

326D-1

With Automatic Lubrication System, Dial-Type Stitch Length Regulation, Cam-Type Take-Up Lever, Hinder Presser Foot



Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 326D-1

is a high-speed industrial sewing machine engineered for heavy-duty, long-run production. Featuring a Double Thread Chainstitch (Type 401), this machine produces high-strength, flexible seams that move with the fabric. Its specialized tandem needle capability allow for reinforced stitching or tape-binding operations on light to medium-heavy materials. By using a looper system instead of a bobbin, the 326D-1 eliminates downtime for bobbin winding, drawing thread directly from large cones. This complete unit includes a professional industrial table and a silent, energy-efficient Servo motor.

  • Double Chainstitch (Stitch Type 401): Creates a secure, elastic stitch that prevents thread breakage in high-stress seams—perfect for woven and stretch materials.
  • Tandem Needle Configuration: Can be set up as a single-needle or a two-needle tandem (one needle positioned behind the other) for reinforced seams or binding.
  • High-Speed Productivity: Delivers industrial efficiency with a maximum speed of 4,000 SPM (Stitches Per Minute).
  • Continuous Thread Supply: The looper system draws directly from thread cones, allowing for long, uninterrupted sewing cycles without bobbin changes.
  • Automatic Lubrication: Features a centrifugal oil pump system with a visible oil gauge to ensure smooth operation and durability at high speeds.
  • Throw-Out Looper: The looper mechanism swings out for easy access, making threading and maintenance fast and simple.
  • Precision Servo Motor: The included 110V Servo motor provides silent operation, variable speed control, and 90% power savings over traditional clutch motors.
  • Stitch Type: Double Thread Chainstitch (401)
  • Maximum Speed: 4,000 SPM
  • Needle System: 135 x 7
  • Needle Bar Stroke: 1-3/16" (30 mm)
  • Maximum Stitch Length: 3.5 SPI (7.5 mm)
  • Clearance Under Foot: 1/2" (13 mm) by Knee / 5/16" (8 mm) by Hand
  • Bed Size: 7" x 18-7/8" (177 mm x 477 mm)
  • Motor: 110V Electronic DC Servo Motor
  • Apparel Manufacturing: Ideal for side seams on trousers, workwear, denim jackets, and uniforms.
  • Automotive & Interiors: High-strength seaming for car seats, headrests, and aircraft interior trim.
  • Binding & Taping: Specialized for attaching reinforcement tapes to the edges of garments, industrial filters, or bags.
  • Stretch Fabrics: The chainstitch elasticity makes it the preferred choice for seams that need to expand without snapping.
  • Home Textiles: Efficiently handles long seams for bedding, curtains, and light upholstery.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
