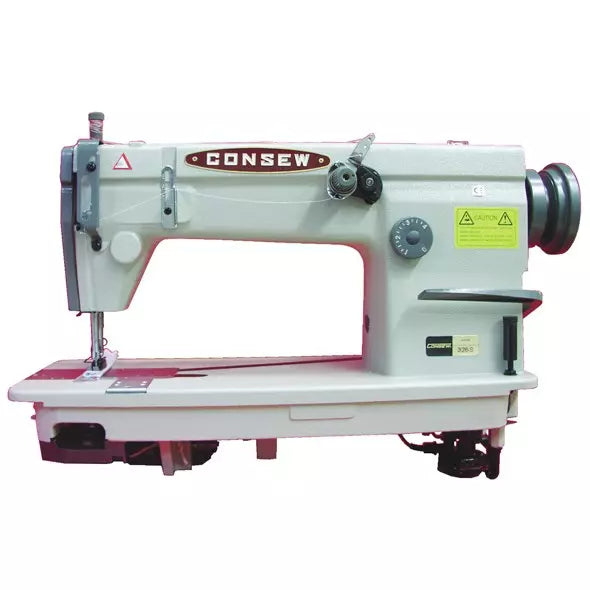

Consew 326 Series Heavy-Duty Double Chainstitch Industrial Sewing Machine

Consew 326 Series Heavy-Duty Double Chainstitch Industrial Sewing Machine

326

Multi-Needle Industrial System with Table and Servo Motor

$2,779.99
$2,779.99 Market price:
Sale Sold out
Head Only (No Table)
Delivery within 3-5 working days
View full details
  • Description
  • Features
  • Specifications
  • Application
  • Manuals & warranty

Consew 326 Series

is a versatile flatbed machine engineered for sewing medium-to-heavy weight materials. Utilizing a Double Chainstitch (Type 401) system, it produces a strong, flexible seam that is ideal for garments requiring stretch and durability, such as denim jeans and workwear. Because it uses a looper system instead of a bobbin, the 326 Series allows for continuous sewing from large thread cones, significantly reducing downtime and increasing factory throughput.

  • Multi-Needle Versatility: Available in 2 or 4-needle configurations, allowing for perfectly parallel rows of stitching in a single pass.
  • Double Chainstitch Mechanism: Produces a secure, elastic stitch that prevents seam cracking under tension—essential for waistbands and side seams.
  • High-Speed Productivity: Capable of speeds up to 4,000 stitches per minute, making it one of the fastest heavy-duty chainstitch machines in its class.
  • Automatic Lubrication: Features a fully automatic centrifugal pump system that keeps internal components oiled, ensuring long life and minimal maintenance.
  • Large Needle Gauge Range: Accommodates a variety of needle spacings to suit different structural or aesthetic requirements.
  • Longitudinal Feed: The feed mechanism is designed to handle thick fabric layers without slippage, ensuring a consistent stitch length throughout the run.
  • Number of Needles:1 (Single)
  • Feeding Mechanism:Drop Feed
  • Workspace:Standard Workspace
  • Standard or Full Function:Standard Functions
  • Stitch Type:401
  • Speed, Max (S.P.M.):5600
  • Max Stitch Length:5-1/2 s.p.i. (4.7mm)
  • Needle Bar Stroke:1-3/16" (30mm)
  • Needle Used:149x17
  • Work Space:10" (258mm)
  • Bed Size:7"x18-7/8" (178x478mm)
  • Clearance Under Foot:5/16" (8mm)
  • Denim & Workwear: Waistbands, side seams, and lap seaming on jeans and overalls.
  • Tape Attachment: Reinforcing seams on luggage, bags, and military gear.
  • Apparel Construction: Structural seams on uniforms, sportswear, and heavy knits.
  • Automotive: Joining fabric panels and reinforcing structural interior seams.

U.S. WARRANTY:

90 Days labor on defects in materials and workmanship.

** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary.

DISCLAIMER: DUE TO THE WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

JUKI DDL-8700 FAQs

What kind of needles do you use in the DDL-8700?

The needles with your JUKI are the Organ DBx1, available on our website. This machine uses size 16×257, size 8 through 20 or 16×97. The 8700 can also use standard needles, sizes 9 through 21, universal or fabric-specific needles such as knit.

Where does the machine oil go?

A pan directly underneath the machine supplies oil to the machine with a cotton wick. Lift the machine up and over to access the oil tank while on the table. You must keep the machine’s oil level consistently at the «high» mark, either by adding more oil or draining it and refilling it as needed. If the oil pump can’t get the oil into the machine, it can cause serious problems later.

What kind of oil does this machine require?

You need a specific type, like motor oil in your car, to keep this machine running. The DDL-8700 requires JUKI New Defrix Oil No.1, equivalent to ISO VG7.

What size table can I get with this machine?

Our table has legs and is 22"w x 47"l. It includes a knee and foot pedals and a left-hand drawer for accessories.

Does the DDL 8700 make buttonholes?

No. The 8700 only does straight stitching, with a horizontal bar on the right side for a reverse stitch.

THE ADVANTAGES OF A SERVO MOTOR

THE ADVANTAGES OF A SERVO MOTOR

Because of the Servo motor speed control, most users find the machine more straightforward to use. Both beginning and seasoned sewers find this feature helpful when stitching projects that don't demand high-speed stitching.

They use up to 90% less power than clutch motors

They use up to 90% less power than clutch motors

They are 1/3 lighter than clutch motors

They are 1/3 lighter than clutch motors

With a flick of the switch, you can reverse motor rotation

With a flick of the switch, you can reverse motor rotation

No parts to wear out or adjust

No parts to wear out or adjust

No matter how hard you press the foot pedal, the configured speed remains the same.

No matter how hard you press the foot pedal, the configured speed remains the same.
